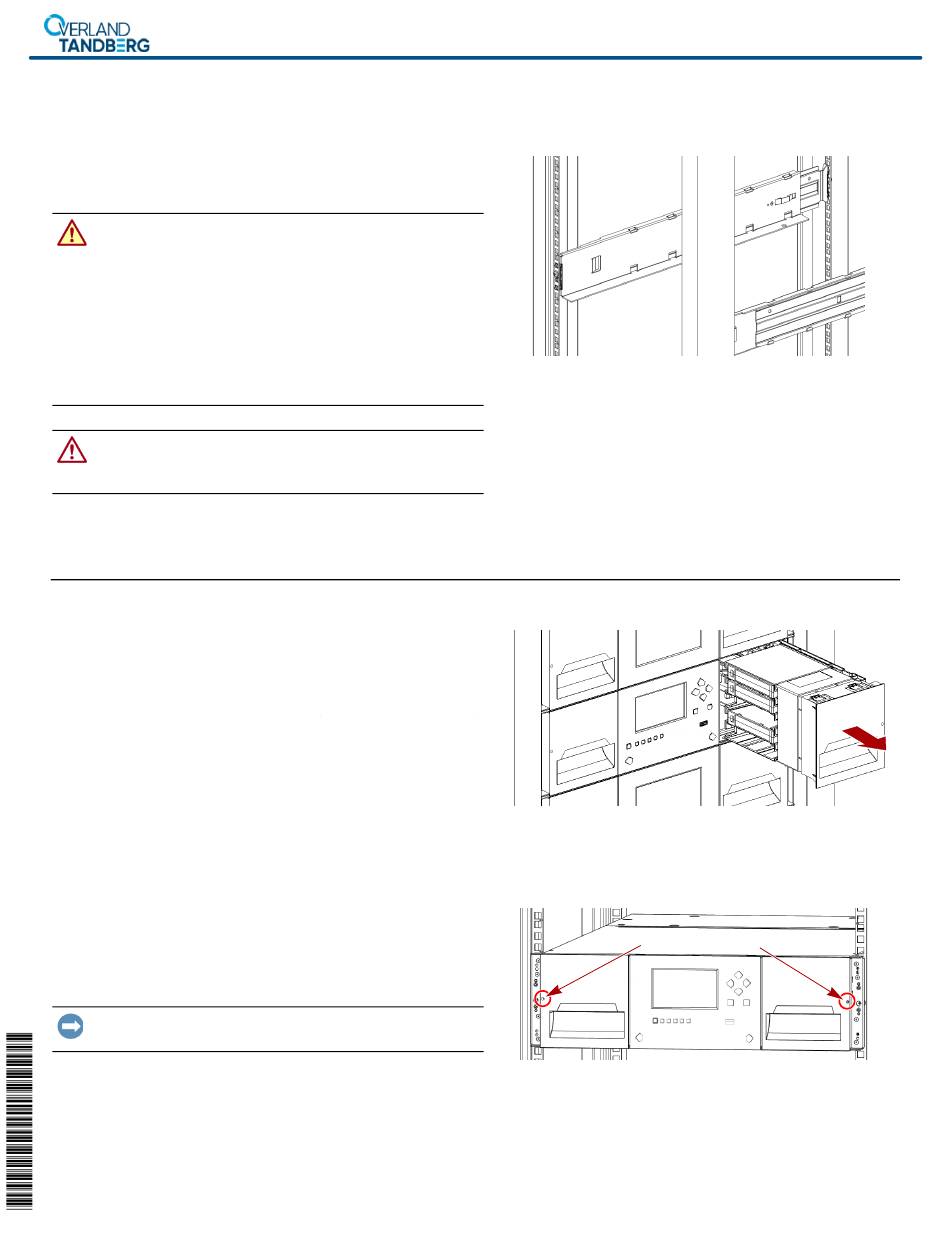

Overland Tandberg NEOxl 40 Instructions

Spare Rackmount Rail Kit Instructions
This document describes how to remove and replace existing
rackmount rails for a NEOxl 40 (3U) tape library module from
Overland Storage.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working with
the library.
WARNUNG:
Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the library, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.
Prepare the Library
Remove Tape Magazines
First, make sure all activities are completed and all backup
software services are stopped. Remove both of the tape
magazines from the module whose rails are being replaced.
NOTE: If the power to the device is off, you can release the
magazines manually. Refer to the
below.
1. From the OCP or RMI, first select the right magazine and
then select Open Magazine.
2. Using the right magazine access handle and supporting
it underneath, pull the magazine out of the library.
3. Place the magazine on a secure surface.
4. Repeat Steps 1–3 for the left magazine.
Manual Release Process
If power is not available on the module, the magazines can be
released using the manual release holes on the side of the
magazines. Insert a small flat-head screwdriver or Torx driver
into the release hole and gently push the tab in.
IMPORTANT: Do not continue to exert force once you
encounter resistance. Doing so can damage the device.
10400856-001
Manual Release Process
©2018 Overland Storage, Inc.
NEOxl
Special Handling Notice
Each NEOxl 40 module weighs more than 44 lbs (20 kg)
without drives or tapes and more than 77 lbs (35 kg)
with three tape drives and 40 tapes.
Before moving or lifting a module, remove the tape
magazines and drives to reduce the weight.
Manual Release Holes
40 Tape Library
®
