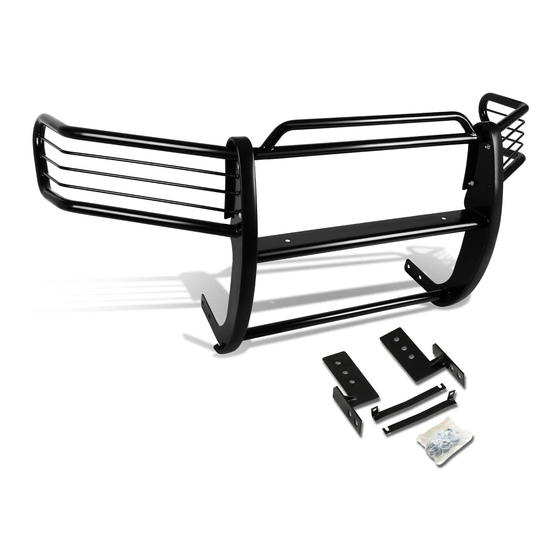

- Page 1 BLACK MODULAR GRILLE GUARD FOR TOYOTA SEQUOIA 01-07/ TUNDRA 00-06 INSTALLATION INSTRUCTIONS BLACK MODULAR GRILLE GUARD FOR TOYOTA SEQUOIA 01-07/ TUNDRA 00-06 PART # 17TS27MA Page 1 of 4...
- Page 2 BLACK MODULAR GRILLE GUARD FOR TOYOTA SEQUOIA 01-07/ TUNDRA 00-06 Before Installation READ THE INSTRUCTIONS COMPLETELY BEFORE YOU BEGIN THE INSTALLATION. NOTE: PICTURES ARE FOR REFERENCE ONLY, ACTUAL PART MAY BU DIFFERENT. INSTALLATION IS THE SAME. YOU MAY NEED TO PERIODICALLY TO RE-TIGHTEN ALL HARDWARE，SUCH AS ONE MONTH OR TWO MONTT.
- Page 3 BLACK MODULAR GRILLE GUARD FOR TOYOTA SEQUOIA 01-07/ TUNDRA 00-06 ○ ○ Type 1 non-metallic insert Allen Wrench S=5 Hexagon lock nut M6 ○ Allen Wrench S=4 Installation Steps INSTALLING PICTURE 13、14、15 Mount frame brackets to the hooks bolts 5、6、7、8 Top bracket with black epoxy 9、10、11、12...
- Page 4 BLACK MODULAR GRILLE GUARD FOR TOYOTA SEQUOIA 01-07/ TUNDRA 00-06 INSTALLING THE FRAME BRACKETS REMOVE FACTORY TOW HOOKS (BUT DO NOT DISCARD THE FACTORY BOLTS) THE BOLT PATTERN ON THE FAAME MOUNTING BRACKETS WILL BE POSITIONED IN MANNER SHOWN IN ILLUSTRATION (PASSENGER SHOWN) ATTACH FRAME BRACKETS USING THE FACTORY BOLTS.
