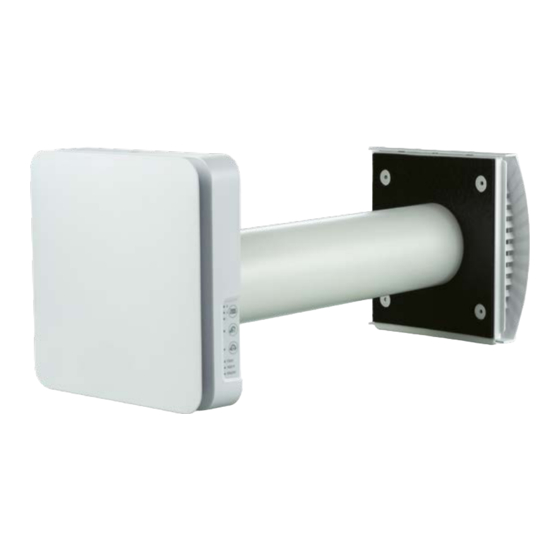

- Page 1 SINGLE-ROOM REVERSIBLE ENERGY RECOVERY VENTILATOR VENTO inHOME VENTO inHOME mini VENTO inHOME M VENTO inHOME mini M VENTO inHOME C1 VENTO inHOME C1 M USER’S MANUAL...
-
Page 2: Table Of Contents
The manual contains information about purpose, technical details, operating principle, design, and installation of the VENTO inHOME (mini) (C1) (M) unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country. - Page 3 VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units. Do not attempt to install the product, connect it to the mains, or perform maintenance yourself.
-
Page 4: Purpose
С1 – shortened regenerator Ventilator series VENTO inHOME – a series of reversible ventilators with a duct diameter of 160 mm and a nominal capacity of 50 m VENTO inHOME mini – a series of reversible ventilators with a duct diameter of 100 mm and a nominal... -
Page 5: Technical Data
VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de TECHNICAL DATA The temperature in the room where the indoor unit of the ventilator is installed must be in the range from +1 ˚C to +40 ˚C with relative humidity up to 65 % (no condensation build-up). -
Page 6: Design And Operating Principle
In the VENTO inHOME mini and VENTO inHOME mini M models, the fan and heat exchanger units are combined in a single cartridge. Two filters are located inside the air duct in the airflow path to provide coarse air purification and prevent dust and foreign objects from entering the heat exchanger and the fan. - Page 7 The shutter opening/closing mechanism operates with a delay of 1 to 5 minutes after the unit is switched on or off. The indoor unit of the VENTO inHOME M and VENTO inHOME C1 M ventilators does not have shutters. The air duct in these models can only be blocked by pushing the front panel of the ventilator as far as it will go, as shown in the figure below.
- Page 8 VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de VENTILATOR OPERATION MODES Ventilation: the ventilator runs either in air extraction or air supply mode at a set speed. In this mode some of the ventilators in the network run in air supply mode and the other ones in air extraction mode, depending on the DIP switch No.
-
Page 9: Mounting And Set-Up
VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT DO NOT BLOCK THE AIR DUCT OF THE INSTALLED VENTILATOR WITH DUST ACCUMULATING MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR CIRCULATION IN THE ROOM. - Page 10 VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de 1. Prepare a round core hole in the outer wall. The figure below shows the minimum distance from the hole to the surrounding objects. The hole diameter depends on the specific ventilator model. The corresponding values are given in the table.
- Page 11 VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de 5. Separate the front panel of the indoor unit from its back part. To do this, press the round buttons on the top and bottom of the indoor unit simultaneously, as shown on the left in the figure below.
- Page 12 VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de 8. Route the power cable as figured below and connect the ventilator to power mains in compliance with the external wiring diagram, refer to the Connection to power mains section. Secure the cables in the new position with cable ties.
- Page 13 VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de Insert the sound-absorbing layer into the air duct. Roll the layer of the sound-absorbing material to match the air duct diameter. The protecting paper layer must be outside. Insert the sound absorbing roll into the cartridge to match the slot. Make a mark at the end of the air duct, remove the material and cut the roll as marked.
-
Page 14: Connection To Power Mains
VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de CONNECTION TO POWER MAINS The ventilator is rated for connection to AC 100-240 V/50 (60) Hz power mains. For electric installations use insulated, flexible conductors (cables, wires) with the minimum cross section of 0.5 up to 0.75 mm power cables and 0.25 mm... - Page 15 VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de Grouping the ventilators in a network For group control over multiple ventilators, they need to be grouped in a network. A possible network grouping example is illustrated in the figure below. The ventilators can be connected in series and branching chains (ventilators No. 2 and No. 3 in the figure).
- Page 16 VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de VENTILATOR SETUP Prior to operating the ventilator set up the ventilator using the DIP switch. It is located on the controller circuit board. To access the DIP switch, take off the front panel of the indoor unit and uplift the rubber plug that covers the switch.
- Page 17 VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de VENTILATOR CONTROL The ventilator is controlled with the remote control or keys on the side surface of the indoor unit (see the figure below). When ventilators are connected in a single network, the controls only impact the first (Master) ventilator.
- Page 18 VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de VENTILATOR CONTROL WITH THE BUTTONS ON THE INDOOR UNIT The table below shows the buttons and indicators on the indoor ventilator unit with a detailed description of their purpose and functionality. The ventilator speed selection sequence is as follows: I-II-III-Standby. All ventilators combined into one network run at the speed set by the master ventilator.
-
Page 19: Technical Maintenance
VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION. Maintenance of the ventilator means regular cleaning of the ventilator surfaces of dust and cleaning and replacement of the filters. Upon elapse of the set filter service life (90 days) the Filter indicator starts shining. - Page 20 VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de 4. Clean the filters as they get clogged. Depending on the dustiness of the air, the duration of the ventilator operation until the next filter cleaning may be different. • Wash the filters and let those dry out completely.
-
Page 21: Storage And Transportation Regulations
VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de POSSIBLE REASONS AND TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line is connected No power supply. correctly, otherwise troubleshoot the connection When switching on the error. ventilator, the fan does not Turn the ventilator off. -
Page 22: Manufacturer's Warranty
VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 23: Certificate Of Acceptance
VENTO inHOME (mini) (С1) (M) www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Single-room reversible energy recovery ventilator Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 www.blaubergventilatoren.de B268-1EN-02...
