Summary of Contents for Andersen 18ST FS

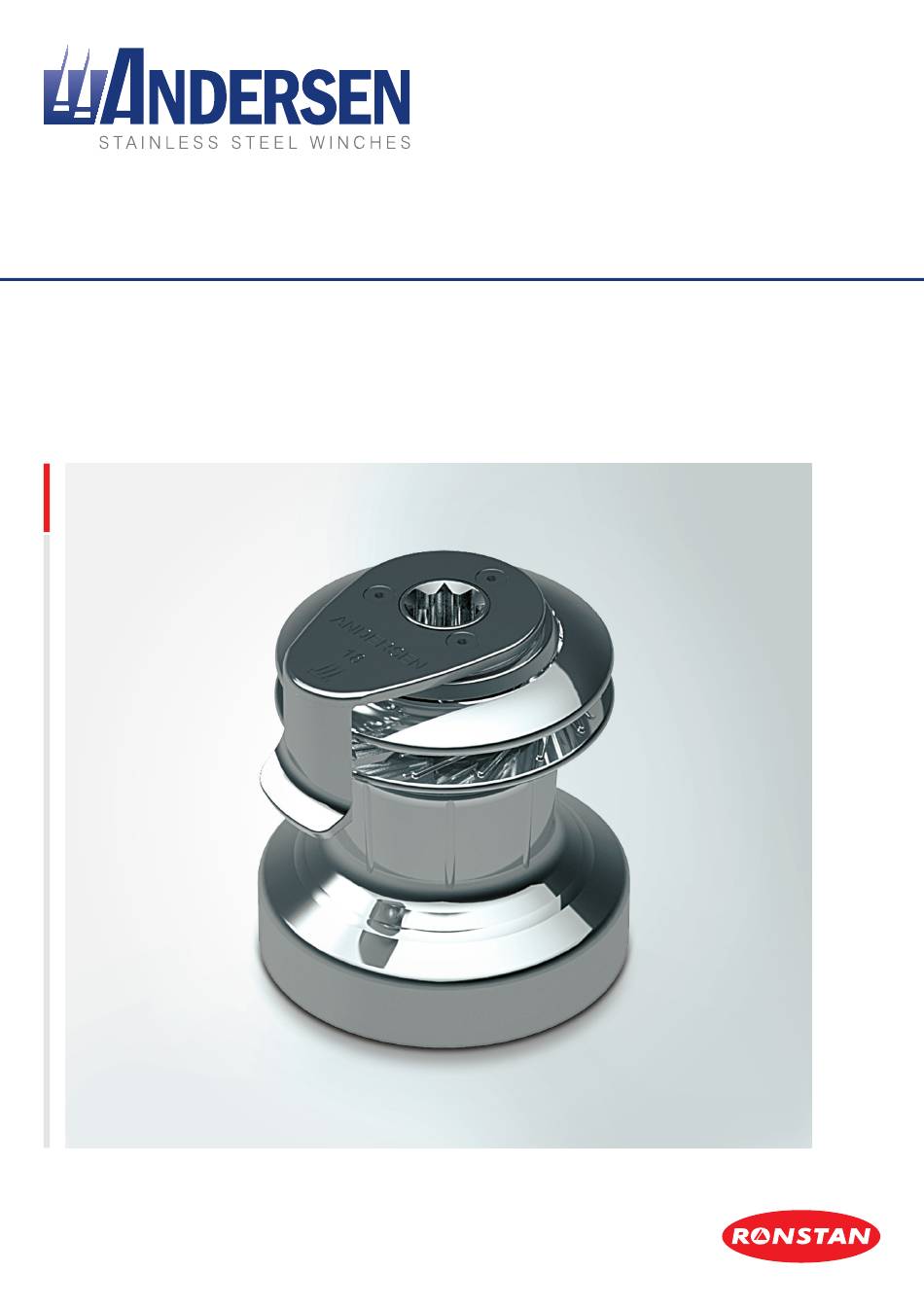

- Page 1 PRODUCT MANUAL 18ST (V.2.0) 18ST FS (V.2.0.F) RON-WPM-710218-18STFS-Rev.4...
- Page 2 18ST (V.2.0) 18ST FS (V.2.0.F) EXPLODED VIEW ITEM. 3 MODEL ST FS - PART No. 537551 ITEM. 5 - PART No. 786001 ITEM. 3 MODEL ST FS - PART No. 537511...
- Page 3 18ST (V.2.0) 18ST FS (V.2.0.F) PARTS LIST ITEM NO. QTY. DESCRIPTION PART NO. Screw 543310 Self-tailing arm 786105 Self-tailing top complete 537551 Model ST Self-tailing top complete 537511 Model ST FS Circlip 726400U Top ring 782100 Screw 781811 Disc - Model ST (537551 only)
- Page 4 18ST (V.2.0) 18ST FS (V.2.0.F) MOUNTING INSTRUCTIONS Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: • Allen key (3 mm) • 6 x M6 (1/4”) countersunk head screws and corresponding • Allen key (5 mm)
- Page 5 9. Assemble in reverse order. During assemble, by the use of a small soft brush lightly grease all gear teeth, drive shaft, roller bearing, shafts, pawls, springs and bushings. Pawls should only be lubricated with a very thin film of ANDERSEN WINCH GREASE. It is very important that pawls can move freely.
- Page 6 Pawl arm springs should be replaced every second year. Spare arm springs and other parts that may be required are included in the ANDERSEN Service Kit. Please refer to the service instruction for the Service Kit suitable for the specific winch.
- Page 7 Do not install or operate this winch before reading and fully understanding the contents of this Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance. Operators Must be Trained...
- Page 8 PRODUCT MANUAL 18ST (V.2.0) 18ST FS (V.2.0.F) WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.ronstan.com/warranty Manufactured by Ronstan Denmark ApS. Jægervænget 36 - 7100 Vejle - Denmark office@ronstan.dk - www.andersenwinches.com...
