THORLABS ELL6 Operating Manual page 12

ELL6K Dual Position Optics Slider Kit
Connector J2 Pin Out
PIN TYPE
1 PWR
2 OUT
3 IN
4 OUT
5 IN
6 IN
7 IN
8 PWR
Connector model number MOLEX 90814-0808 Farnell order code 1518211
Mating connector model number MOLEX 90327-0308 Farnell order code 673160
Caution
The ribbon cable connector (J2) is made of plastic and is not particularly robust. Do not use force when making
connections. Unnecessary or repeated plugging in and unplugging should be avoided or the connector may fail.
Page 10
Ground
ODTX - open drain transmit 3.3V TTL RS232
RX receive - 3.3V TTL RS232
In Motion, open drain active low max 5mA
JOG/Mode = normal/test demo, active low max 5V
BW Backward , active low max 5V
FW Forward, active low max 5V
VCC +5V +/-10% 600mA

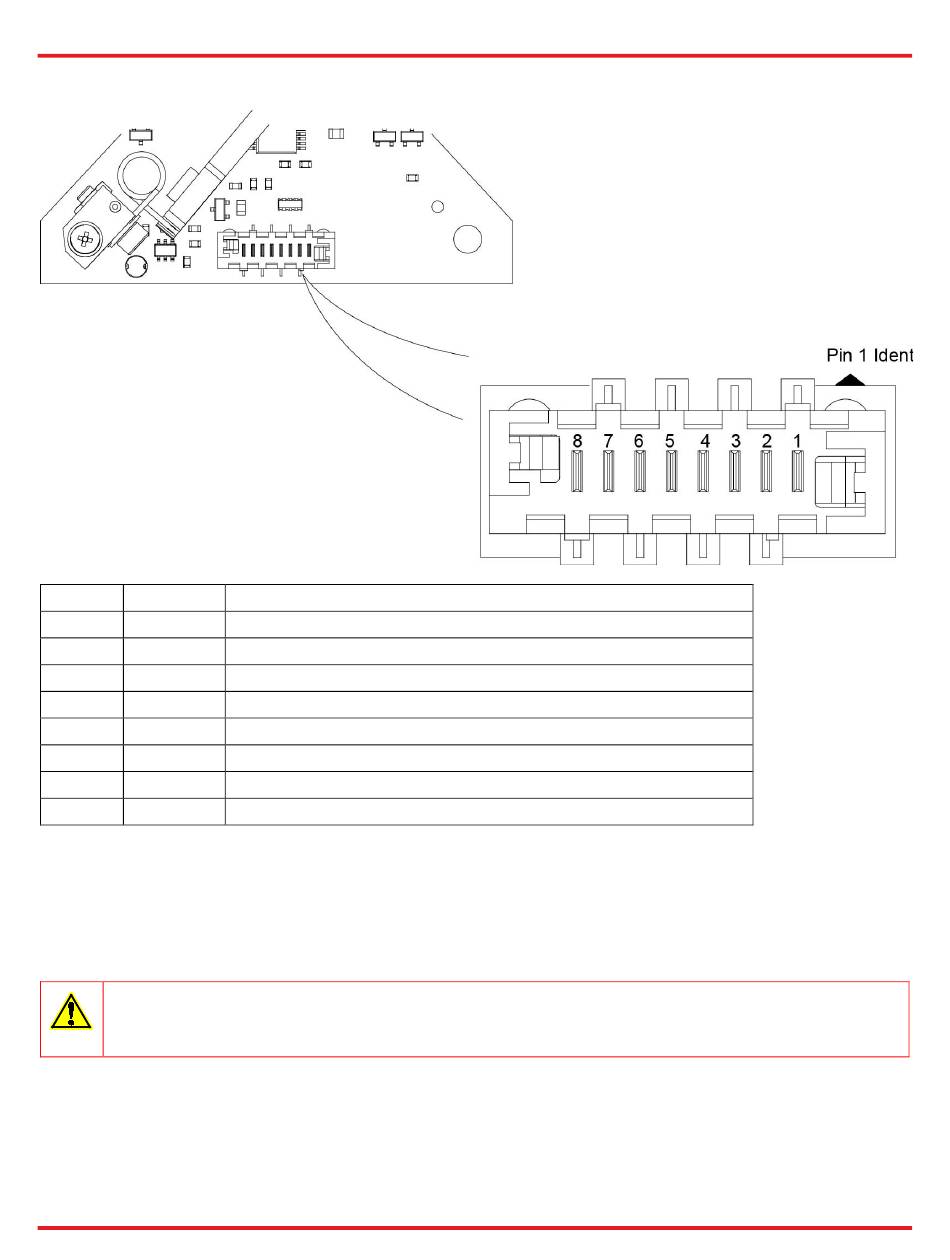

Figure 7 Connector J2 pin out details
FUNCTION
Chapter 4: Operation
DTN000414-D02
