- Page 1 GPON ONU Router with 1 PON and 1 Giga Port DG-GR4010 V1.0 2018-05-25...
- Page 2 Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: DIGISOL is a trademark of DIGISOL SYSTEMS LTD. All other trademarks are the property of the respective manufacturers.
-
Page 3: 1:1 Product Description

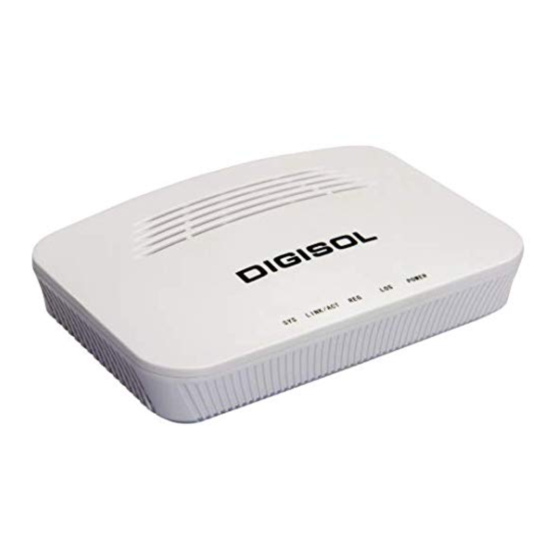

Overview 1:1 Product Description DG-GR4010 ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH (Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. - Page 4 1:3 Technical Parameters Technical item DG-GR4010 PON interface 1GPON connector, SC single-mode/single-fiber, uplink 1.25Gbps, downlink 2.5Gbps Wavelength Tx1310nm,Rx 1490nm Optical interface SC connector LAN interface 1x 10/100/1000Mbps auto adaptive Ethernet interfaces RJ-45 connector 5, For Status of SYS, POWER, LOS, PON, LAN...
-
Page 5: Installation
Installation 2:1 Installation Requirements To avoid equipment damage caused by improper use and personal injury, please observe the following precautions: Do not place the device near water or in damp places, in order to ● prevent water or moisture from entering the device. Do not place the device in an unstable place, avoid falling damage to ●... - Page 6 1. Installed on the desktop Place the machine on a clean bench, this installation is relatively simple, you can observe the following operation: Ensure the smooth workbench. ● Around the device enough space for heat dissipation. ● Do not place objects on the device. ●...
-
Page 7: Web Management
Web Management GPON ONU provides simple Web management functions, including Device Information, modify Lan Managemenet IP address, SN (Serial Number) Loid, Password, Configuration File backup/upload/restore, firmware upgrade etc... NOTE: About More ONU Detail Configurations should be configured via OMCI protocols from OLT. 3:1 Default configuration The following is the default device configuration information. - Page 8 Figure 4 Device Information Status Menu displays the current device base Information's. Including Hardware Version, Boot Loader Version, PON Serial Number and Password. Note: All the device information may be changed, the received device shall prevail.
- Page 9 Figure 5 Modify Loid and Password LOID/SN Menu displays the current device SN, Loid and Password information's. SN: Modify the device SN, fixed 12 bytes, 4 bytes for Vendor manufacturers Password: fixed 10 bytes. Loid: 0-24 bytes. Note: 1. Usually no need to modify the Version and Vendor Product Code information, otherwise it may lead to ONU registration problems.
- Page 10 Figure 6 Reboot / Restore Default Reboot: The operation to reboot the device. Restore Default: The operation to restore the device to its factory configuration. Note: 1. Press RST button over 10 seconds, onu can restore factory defaults and reboot. 2.
- Page 11 Figure 7 Upgrade Firmware upgrade Menu displays the current equipment upgrades related information.
- Page 12 Figure 8 Backup/ Restore Configuration Backup Configuration: The operation to backup configuration from the device. Restore Configuration: The operation to restore configuration from a configuration file.
-
Page 13: Troubleshooting
Troubleshooting 1. After power all the lights are lit? Reasons: 1) Power connection errors 2) Power is not normal. Solution: 1) Check that the power cable is connected 2) The rear panel of the power supply is turned on. 2. GE / FE led does not light? Reasons: 1) Network cable is damaged or loose connection 2) Cable type error;... - Page 14 WARRANTY helpdesk@digisol.com 1800 209 3444...
