3.5.3 Electrical connection - Multilift II

Hall sensor and wiring
Plug connector pin assignment
Fig. 20: Plug connector pin assign-
ment
20.02.2019
Electrical connection to a controller provided by the operator > Electrical connection - Multilift II

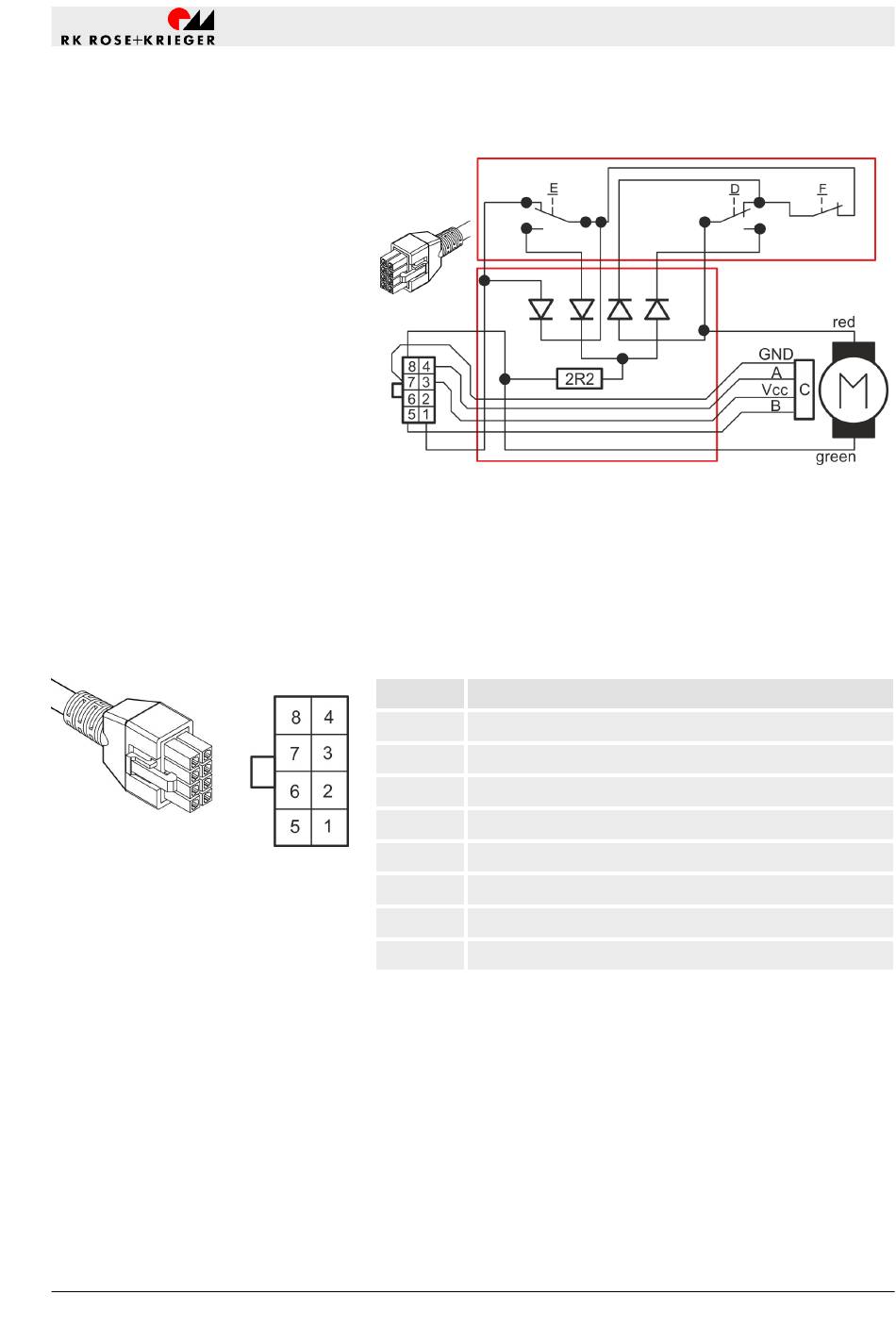

Fig. 19: Circuit diagram for Multilift II
A/B Output hall sensor
C Internal hall sensor in the motor
D Top limit switch
E Bottom limit switch
F Safety limit switch
Pin
1
2
3
4
5
6
7
8
Lifting column Multilift I/Multilift II
Function
Motor +
N/A
+5 V
A
B
N/A
GND
Motor -
