8.3.2 Load diagrams - Multilift II

Load diagrams - Multilift II Standard/ESD/impact/clean
8.3.2.1
Maximum compressive/tensile
force depending on the stroke
length
20.02.2019

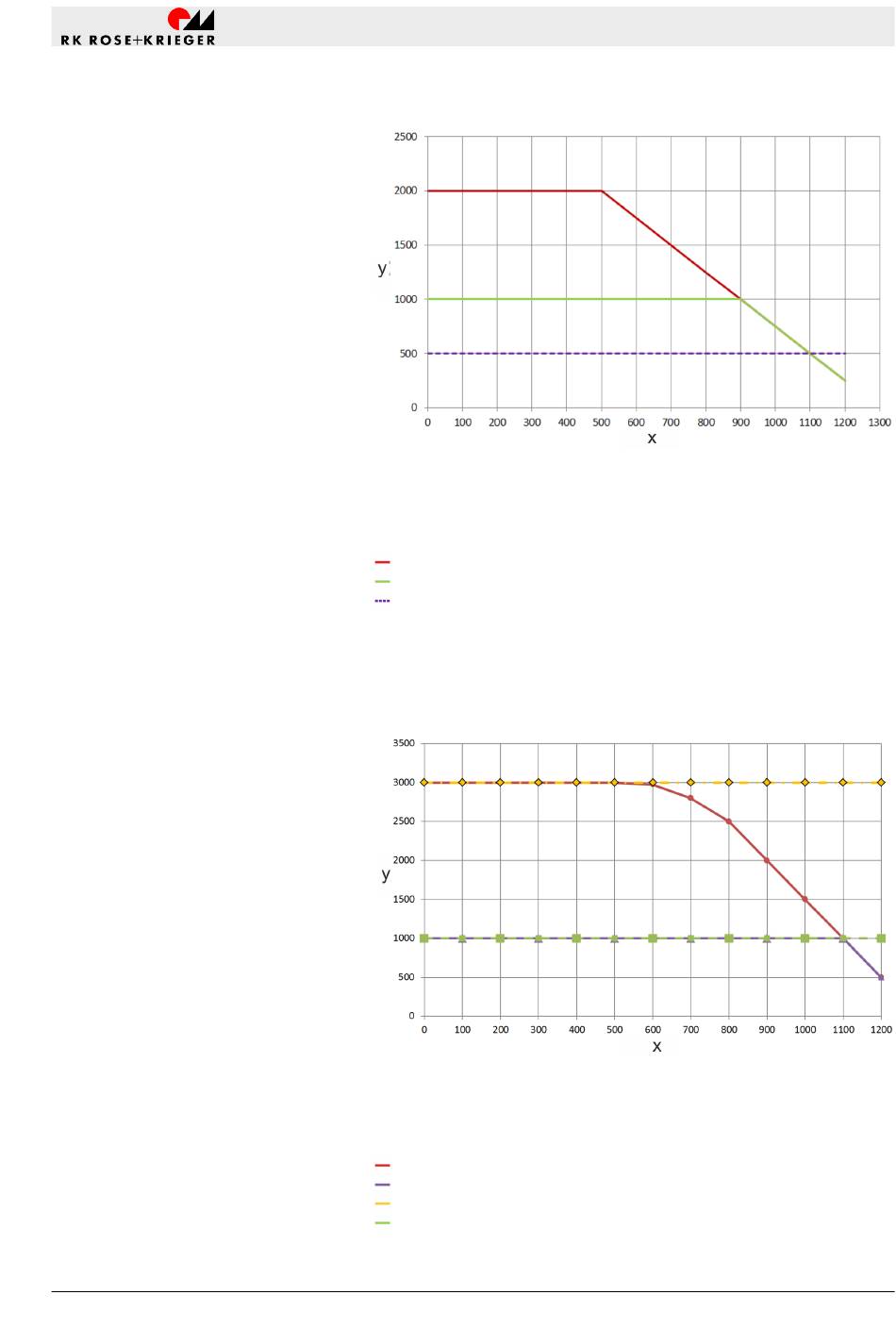

Fig. 32: Maximum compressive/tensile force depending on the
stroke length in medical applications
x Stroke [mm]
y F [N]
8 mm/s (compressive force)
16 mm/s (compressive force)
8/16 mm (tensile force)
Fig. 33: Maximum compressive/tensile force depending on the
stroke length
x Stroke [mm]
y F [N]
8 mm/s (compressive force)
16 mm/s (compressive force)
8 mm/s (tensile force)
16 mm (tensile force)
