Polycom RealPresence Group Series Setting Up page 3

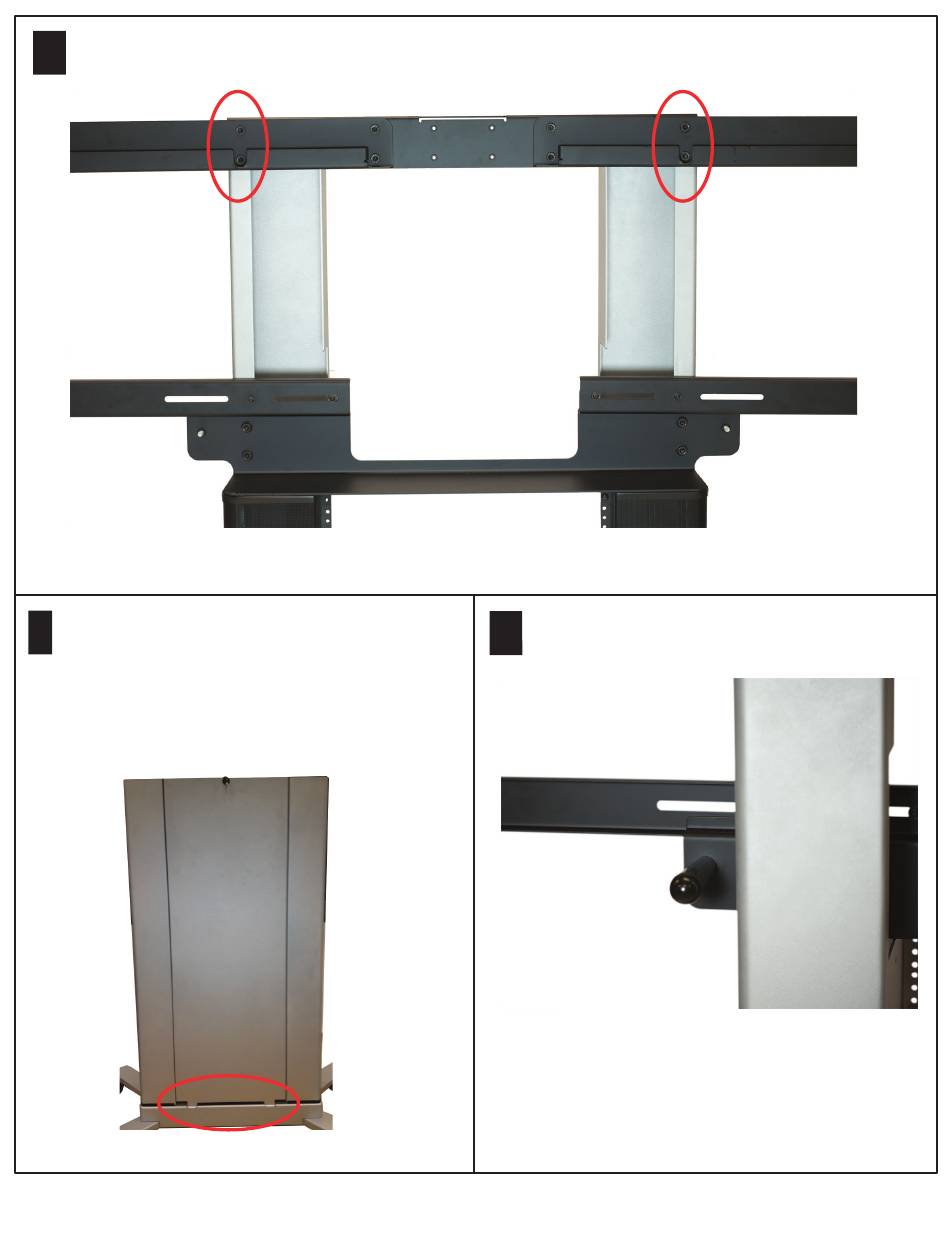

Install the upper display rail assembly by aligning the holes in the display rail with the holes in the vertical
6b
supports. Attach with two M10 x 25 flanged socket head cap screws per vertical support. Do not fully tighten.
Attach the rear panel by inserting the two tabs at the
8
bottom of the door into the slots in the base. This
serves as an alignment tool to ensure the frame is
properly aligned before tightening all bolts. Using
the L-key, tighten the socket head cap screws at
the bottom of the base, the lower display rail, and
the upper display rail. Remove the rear door.
Setting up the Polycom® RealPresence® Group Series Media Center
On the back side, install a handle on both ends
13
of the bottom display rail.
3
