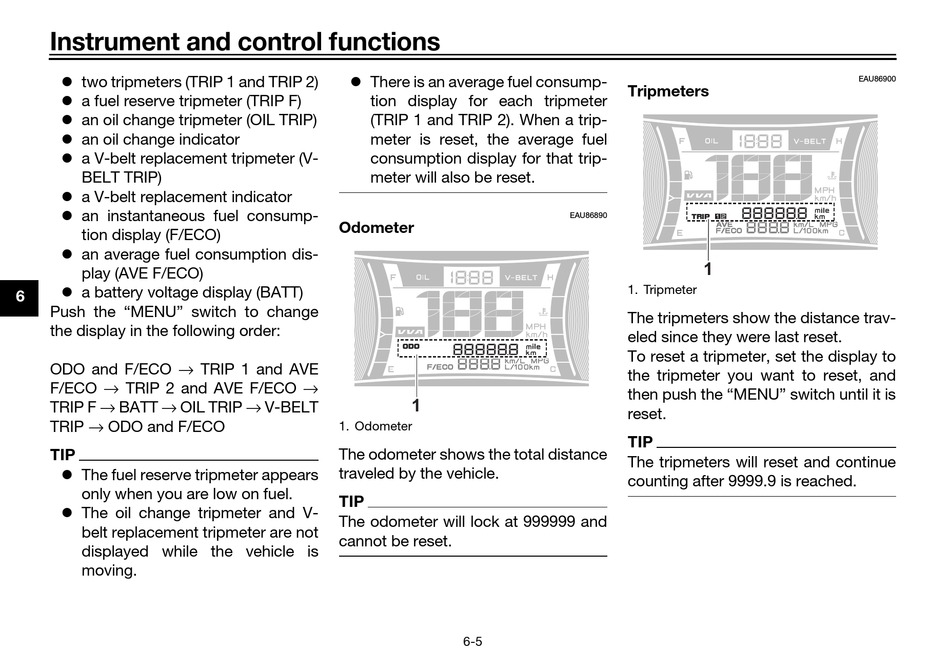

Yamaha NMAX 155 Owner's Manual page 38

Instrument and control functions
 two tripmeters (TRIP 1 and TRIP 2)
 a fuel reserve tripmeter (TRIP F)
 an oil change tripmeter (OIL TRIP)
 an oil change indicator
 a V-belt replacement tripmeter (V-
BELT TRIP)
 a V-belt replacement indicator
 an instantaneous fuel consump-
tion display (F/ECO)
 an average fuel consumption dis-
play (AVE F/ECO)
 a battery voltage display (BATT)
6
Push the "MENU" switch to change
the display in the following order:
ODO and F/ECO → TRIP 1 and AVE
F/ECO → TRIP 2 and AVE F/ECO →
TRIP F → BATT → OIL TRIP → V-BELT
TRIP → ODO and F/ECO
TIP
 The fuel reserve tripmeter appears
only when you are low on fuel.
 The oil change tripmeter and V-
belt replacement tripmeter are not
displayed while the vehicle is
moving.
 There is an average fuel consump-
tion display for each tripmeter
(TRIP 1 and TRIP 2). When a trip-
meter is reset, the average fuel
consumption display for that trip-
meter will also be reset.
Odometer
1
1. Odometer
The odometer shows the total distance
traveled by the vehicle.
TIP
The odometer will lock at 999999 and
cannot be reset.
6-5
Tripmeters
EAU86890
1
1. Tripmeter
The tripmeters show the distance trav-
eled since they were last reset.
To reset a tripmeter, set the display to
the tripmeter you want to reset, and
then push the "MENU" switch until it is
reset.
TIP
The tripmeters will reset and continue
counting after 9999.9 is reached.
EAU86900
