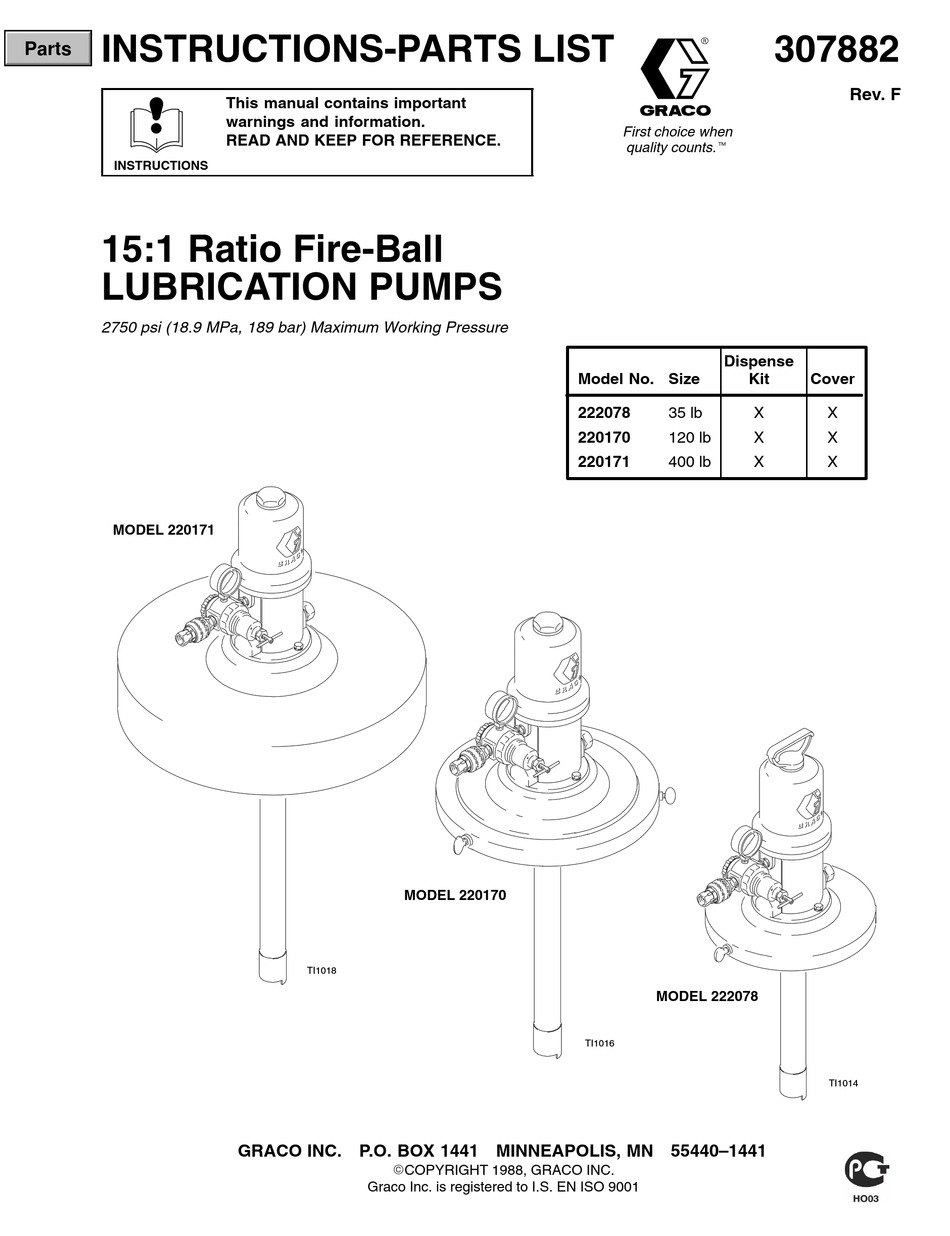

INSTRUCTIONS-PARTS LIST
Parts
INSTRUCTIONS

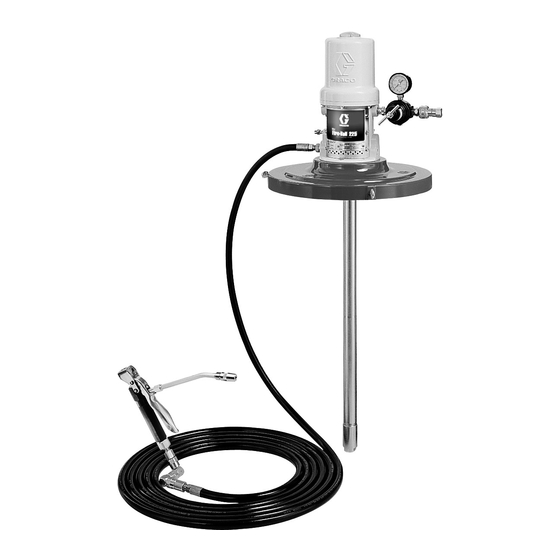

15:1 Ratio Fire-Ball
LUBRICATION PUMPS
2750 psi (18.9 MPa, 189 bar) Maximum Working Pressure
MODEL 220171
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
TI1018
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 1988, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
Model No. Size
222078
220170
220171
MODEL 220170
First choice when
quality counts.t
Dispense
Kit
35 lb
X
120 lb
X
400 lb
X
MODEL 222078
TI1016
307882
Rev. F
Cover
X
X
X
TI1014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco 222078
Summary of Contents for Graco 222078
- Page 1 Cover 222078 35 lb 220170 120 lb 220171 400 lb MODEL 220171 MODEL 220170 TI1018 MODEL 222078 TI1016 TI1014 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 ECOPYRIGHT 1988, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
-
Page 2: Table Of Contents
........Parts Model 222078 ....... . . -
Page 3: Warnings
D Read all instruction manuals, tags, and labels before you operate the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment. Use only Graco parts and accessories. - Page 4 WARNING INJECTION HAZARD Spray from the spray gun/dispense valve, leaks, or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. D Fluid injected into the skin might look like just a cut, but it is a serious injury.
-
Page 5: Setup
Setup Grounding D Any pails used when flushing: Use only metal, To reduce the risk of static sparking, ground the pump. grounded pails when flushing. Make firm metal-to- Check your local electrical code for detailed grounding metal contact between a metal part of the dispens- instructions for your area and type of equipment. - Page 6 Assemble the air and fluid lines as shown in Fig 2. 2. Install an air line filter (C) to remove harmful dirt and For Model 222078 contaminants from your compressed air supply. Secure pump to cover (3) with the screws and lo- 3.
-
Page 7: Operation
Operation Pressure Relief Procedure 3. For the pump which is connected, trigger the dis- pensing valve into a grounded metal waste con- tainer, making firm metal-to-metal contact between WARNING the container and valve. Open the bleed-type master air valve and open the pump air regulator slowly, just INJECTION HAZARD until the pump is running. -
Page 8: Parts
Parts Model 222078 Model 222080 35 lb Pail Size Dispense Kit Part No. Description Part No. Description 206405 PUMP, 15:1 Ratio Fire-Ball; 109165 HOSE; 3/8” ID, cpld 1/4 npt (mbe), See 306531 for parts 15 ft (4.5 m) 222080 DISPENSE KIT; See parts at right... -
Page 9: Model 220170
Parts Model 220170 Model 222081 120 lb Drum Size Dispense Kit Part No. Description Part No. Description 206699 PUMP, 15:1 Ratio Fire-Ball; 109167 HOSE; 3/8” ID, cpld 1/4 npt (mbe), See 306531 for parts 25 ft (7.6 m) 222081 DISPENSE KIT; See parts at right 242056 VALVE, dispense 204574... -
Page 10: Model 220171
Parts Model 220171 Model 222081 400 lb Drum Size Dispense Kit Part No. Description Part No. Description 206700 PUMP, 15:1 Ratio Fire-Ball; 109167 HOSE; 3/8” ID, cpld 1/4 npt (mbe), See 306531 for parts 25 ft (7.6 m) 222081 DISPENSE KIT; See parts at right 242056 VALVE, dispense 200326... - Page 11 Notes 307882 11...
-
Page 12: Graco Warranty
Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
