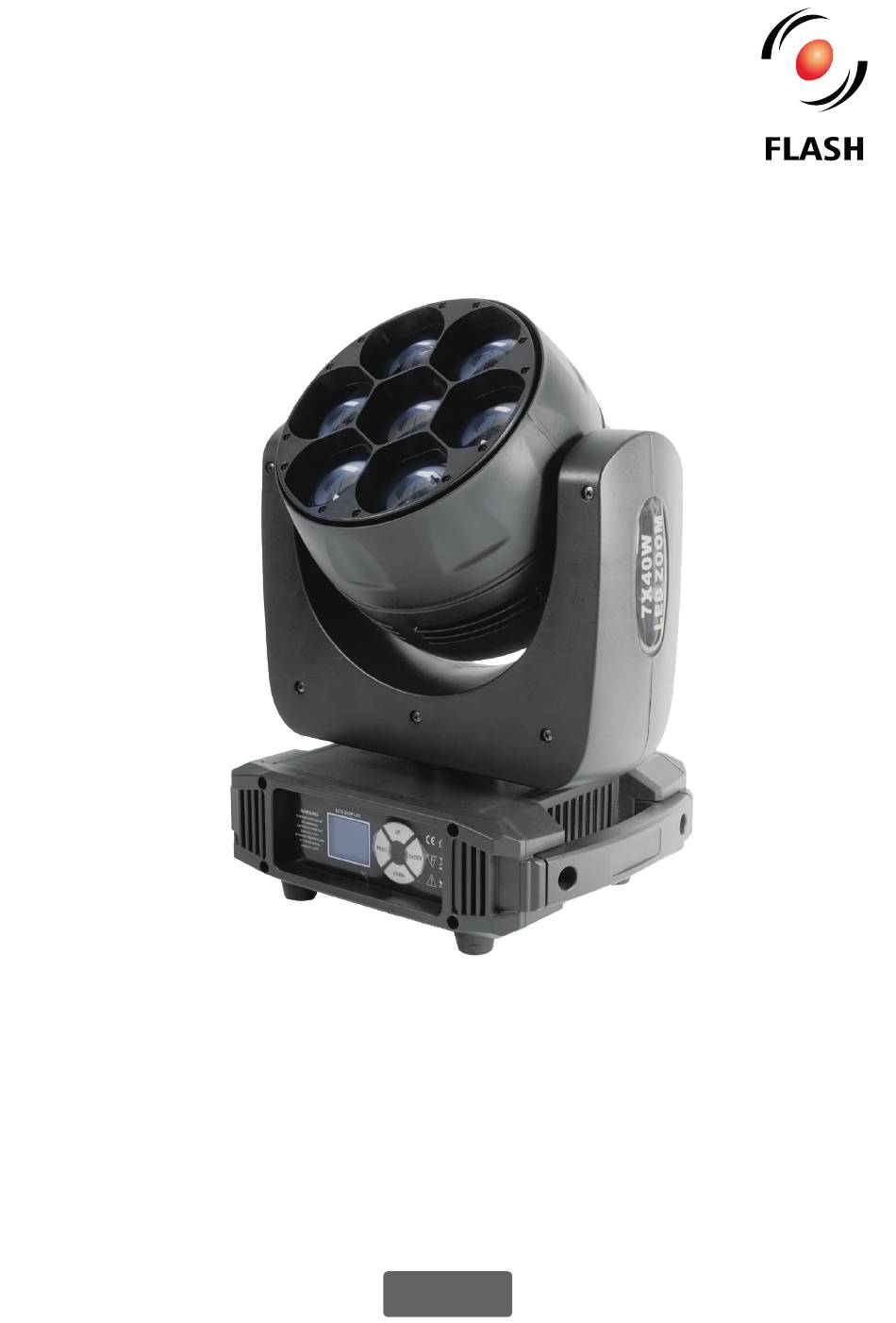

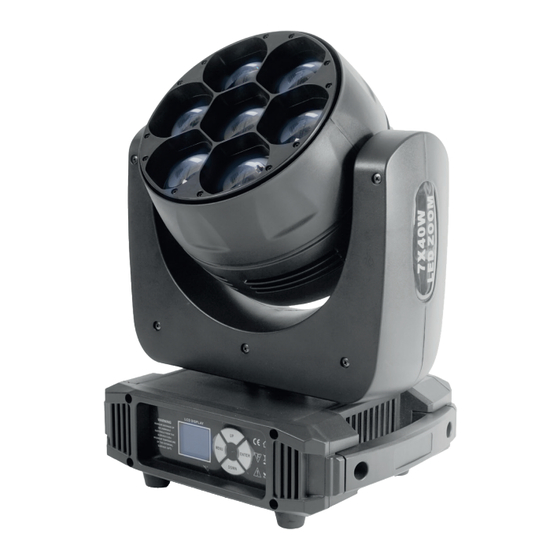

- Page 1 User Manual LED MOVING HEAD PIXEL ZOOM 7x40W F7100519...
-
Page 2: Safety Information
User Manual • 1. INTRODUCTION THANK YOU FOR PURCHASING LED MOVING HEAD PIXEL ZOOM 7x40W. FOR SAFETY REASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CAREFULLY READ THE INSTRUCTIONS. 2. SAFETY INFORMATION Please keep this User Manual for future In the event of serious operating problem, consultation. -
Page 3: Product Information
LED MOVING HEAD PIXEL ZOOM 7x40W • Art No F7100519 3. PRODUCT INFORMATION Light Source: 7pcs 40W 4in1 LEDs IP20 protection rating. Wide zoom range: 5-450 3-Pin XLR DMX input/output PAN range: 0-5400 Power supply: 100 - 240V AC, 50-60Hz ... -
Page 4: How To Set The Unit
User Manual • 5.2 Voltage specification Input Voltage Total Power Frequency 100~240V 350W 50/60Hz 5.3 Connecting power supply Make sure that the power grid supply The connection is performed using power cable with PowerCon connector parameters are consistent with device parameters and limitations are not ( i n c l u d e d ) . -
Page 5: Dmx Channels
LED MOVING HEAD PIXEL ZOOM 7x40W • Art No F7100519 9. DMX CHANNELS 9.1 CH17 Mode Function Value Description 0-255 0-5400 Pan Fine 0-255 Tilt 0-255 0-2200 Tilt Fine 0-255 Pan/Tilt Speed 0-255 Fast - Slow Zoom 0-255 Wide 45° - Narrow 5°... - Page 6 User Manual • 38-43 White 44-49 Yellow 50-55 Magenta 56-61 Cyan 62-67 RGBW 68-73 Macro 1 74-79 Macro 2 80-85 Macro 3 86-91 Macro 4 92-97 Macro 5 98-103 Macro 6 104-109 Macro 7 110-115 Macro 8 116-121 Macro 9 122-127 Macro 10 128-133...
- Page 7 LED MOVING HEAD PIXEL ZOOM 7x40W • Art No F7100519 9.2 CH 21 Mode Function Value Description 0-255 0-540º Pan Fine 0-255 Tilt 0-255 0-220º Tilt Fine 0-255 Pan/Tilt Speed 0-255 Fast - Slow Zoom 0-255 Wide 45° - Narrow 5°...
- Page 8 User Manual • Function Value Description 72-84 Macro 5 85-97 Macro 6 98-110 Macro 7 111-123 Macro 8 124-136 Macro 9 137-149 Macro 10 150-162 Macro 11 163-175 Macro 12 176-188 Macro 13 189-201 Macro 14 202-214 Macro 15 215-227 Macro 16 228-255 Macro 17...
- Page 9 LED MOVING HEAD PIXEL ZOOM 7x40W • Art No F7100519 9.3 CH 41 Mode Function Value Description 0-255 0-540º Pan fine 0-255 Tilt 0-255 0-220º Tilt fine 0-255 Pan/Tilt speed 0-255 Fast - Slow Zoom 0-255 Wide 45° - Narrow 5°...
- Page 10 User Manual • Function Value Description 6 Red 0-255 0-100% 6 Green 0-255 0-100% 6 Blue 0-255 0-100% 6 White 0-255 0-100% 7 Red 0-255 0-100% 7 Green 0-255 0-100% 7 Blue 0-255 0-100% 7 White 0-255 0-100% Open 1-255 Warm - Cold Color Macro Open...
- Page 11 LED MOVING HEAD PIXEL ZOOM 7x40W • Art No F7100519 Function Value Description 92-97 Macro 5 98-103 Macro 6 104-109 Macro 7 110-115 Macro 8 116-121 Macro 9 122-127 Macro 10 128-133 Macro 11 134-139 Macro 12 140-145 Macro 13...
- Page 12 F7100519 www.flash-butrym.pl...
