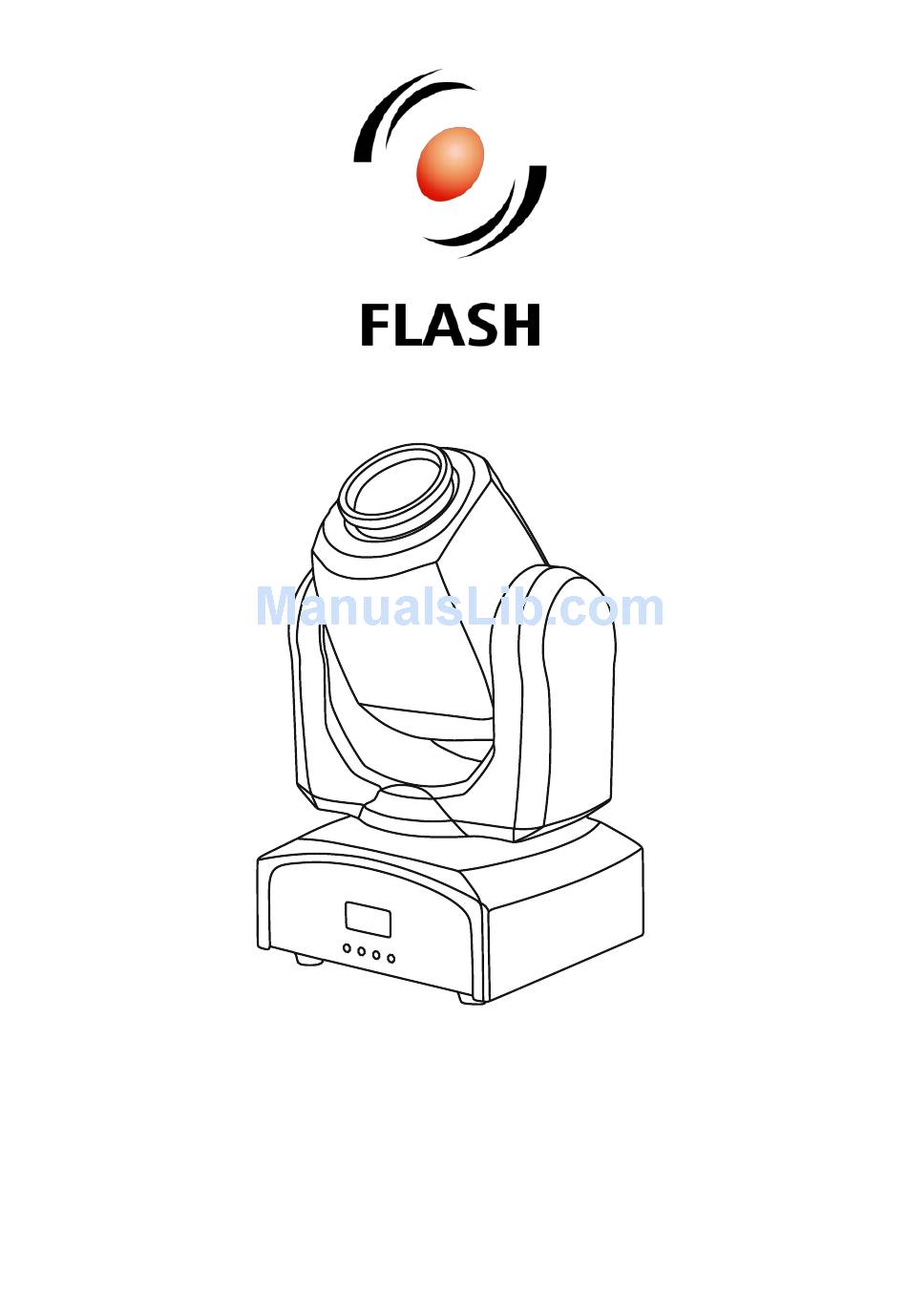

- Page 1 LED Moving Head 30W SPOT COLOR GOBO F7000499 USER MANUAL...
-
Page 2: Table Of Contents
LED Moving Head 30W SPOT COLOR GOBO F7000499 Table of Contents Introduction ..............................2 Safety information ............................2 maintenance ..............................2 Product information ............................2 Specification ..............................2 Installation ................................ 3 Connections ..............................3 Connecting DMX signal..........................4 Voltage specification ..........................4 Connecting power supply ........................ -
Page 3: Introduction
AC IN: IEC 320 - C14 DMX IN: XLR - 3 pin DMX OUT: XLR - 3 pin Cooling: Active Height [cm]: 32,5 Width [cm]: 25 Depth [cm]: 27 Weight [kg]: 2,5 www.flash-butrym.pl... -
Page 4: Installation
LED Moving Head 30W SPOT COLOR GOBO F7000499 INSTALLATION After removing the packaging, check if the device was not damaged during transport. Before connecting to the mains, make sure that the device is securely mounted. The manufacturer is not responsible for damage caused by unstable mounting. -
Page 5: Connecting Dmx Signal
OPERATION MANUAL Control panel The control panel is equipped with display and 4 control buttons with the following functions: MENU – choose option UP – edit parameter DOWN – edit parameter ENTER – confirm changes www.flash-butrym.pl... -
Page 6: Menu
LED Moving Head 30W SPOT COLOR GOBO F7000499 Menu Menu diagram: Addr A001-A512 512 address code 11CH 11 channel mode CHnd 9 channel mode MAST Master mode SLnd SL 1 DMX mode SL 2 Slave mode SH 0 Effect0 SH 1... -
Page 7: Dmx Channel List
60-84: Auto mode 1 58-109: Auto mode 2 110-134: Auto mode 3 CH 10 Auto mode 135-159: Auto mode 4 160-184: Sound mode 1 158-209: Sound mode 2 210-234: Sound mode 3 0-249: No function CH 11 Reset 250-255: Reset after 5s www.flash-butrym.pl...
