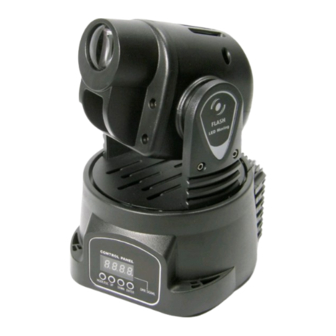

- Page 1 Moving Head LED 15W User Manual Flash-Butrym Sp.j.
- Page 2 6. Please look round the manual for ensure the product can be used normally. Product introduction • Power supply: AC230V, 50Hz • Power consumption: 50W • Fiting lamp: LED 15W RGB • DMX-control-channels: 5 or 13, select from control board Flash-Butrym Sp.j.
- Page 3 • Color: RGB color-mixture • Gobo-wheel: 9 gobo + open + rainbow • Shuttle: Flash rate: 0-10Hz • Dimmer: 0-100% mechanic dimmer • Maximum PAN-movement: 540 • Maximum TILT-movement: 270 • Master/ Slave activated by sound at pre-programmed function. 13 Control Channel...
- Page 4 Auto program 4 68~82 Auto program 5 83~97 Auto program 6 98~112 Auto program 7 113~135 Auto program 8 136~142 Sound control 1 143~157 Sound control 2 158~172 Sound control 3 173~187 Sound control 4 188~202 Sound control 5 Flash-Butrym Sp.j.
- Page 5 1 PAN 0~255 540° 2 TILT 0~255 270° Close Shutter 8~134 100%-0% mechanic dimmer 135~239 Strobe effect with electric al speed 240~255 Open 4 LED makro No function 8~21 White 22~35 36~49 Green 50~63 Blue 64~77 Cyan 78~91 Magenta Flash-Butrym Sp.j.
-
Page 6: Control Board
Use the <UP> button to move up. Use the <DOWN> button to move down. Use the <ENTER> button to move right. Use the <MODE> button to move left, Or to scroll through the left-most items In the menu map. Flash-Butrym Sp.j. - Page 7 Flash-Butrym Sp.j.
- Page 8 Flash-Butrym Sp.j.
