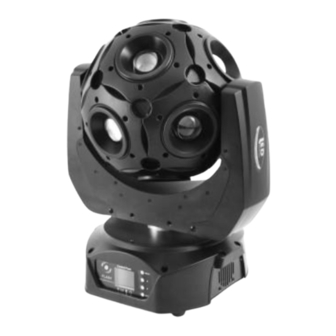

LED SPHERE MOVING HEAD
12x12 4in1 No Limit
F7100083
USER MANUAL / INSTRUKCJA OBSŁUGI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F7100083 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Flash F7100083

Summary of Contents for Flash F7100083

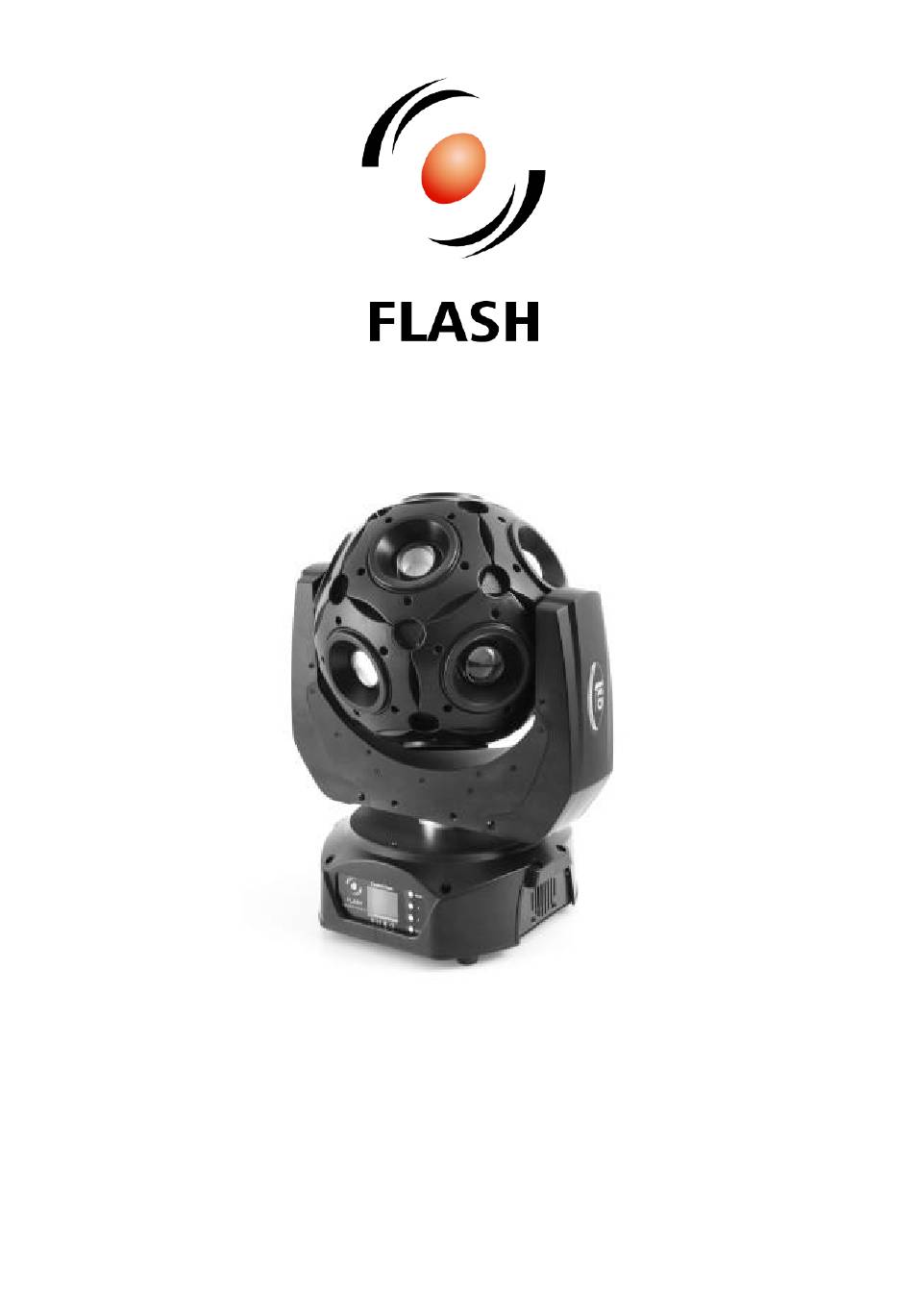

  • Page 1 LED SPHERE MOVING HEAD 12x12 4in1 No Limit F7100083 USER MANUAL / INSTRUKCJA OBSŁUGI...

  • Page 2: Table Of Contents

    LED Sphere MOVING HEAD 12x12 4in1 No Limit F7100083 Table of contents Introduction ..............................2 Safety information ............................2 Maintenance ..............................2 Product specification ............................2 Installation ................................ 3 connections ............................... 3 Connecting DMX signal..........................3 Voltage specification ..........................4 Operation manual ............................

  • Page 3: Introduction

    Color: RGBW  Beam angle (min): 3°  Beam angle (max): 3°  Dimming: Linear: 0 - 100%  Flash frequency (min): 1Hz  Flash frequency (max): 20Hz  PAN range: No limit  TILT range: No limit  DMX standard: DMX 512 ...

  • Page 4: Installation

    LED Sphere MOVING HEAD 12x12 4in1 No Limit F7100083  Cooling: Active  Height [cm]: 44  Width [cm]: 34  Depth [cm]: 34  Weight [kg]: 8  Weight with packaging [kg]: 10 INSTALLATION After removing the packaging, check if the device was not damaged during transport. Before connecting to the mains, make sure that the device is securely mounted.

  • Page 5: Voltage Specification

    Dimmer 0-255: 0-100% CH 5 Built-in program 0-255: Various programs CH 6 Strobe 0-255: Strobe, slow to fast CH 7 Color macro 0-255: Various programs CH 8 Auto run 0-255: Various settings CH 9 Section 1 Red 0-255: 0-100% www.flash-butrym.pl...

  • Page 6: Wprowadzenie

    LED Sphere MOVING HEAD 12x12 4in1 No Limit F7100083 CH 10 Section 1 Green 0-255: 0-100% CH 11 Section 1 Blue 0-255: 0-100% CH 12 Section 1 White 0-255: 0-100% CH 13 Section 2 Red 0-255: 0-100% CH 14 Section 2 Green...

  • Page 7: Zasady Bezpieczeństwa

    Tryby pracy: DMX, Automatyczny, Sterowanie dźwiękiem, Master/Slave, Automatyczny, Sterowanie dźwiękiem, Master/Slave  AC IN: IEC - C14  DMX IN: XLR - 3 pin  DMX OUT: XLR - 3 pin  Stopień ochrony IP: IP20  Rodzaj obudowy: ABS www.flash-butrym.pl...

  • Page 8: Instalacja

    LED Sphere MOVING HEAD 12x12 4in1 No Limit F7100083  Chłodzenie: Aktywne  Wysokość [cm]: 44  Szerokość [cm]: 34  Głębokość [cm]: 34  Waga [kg]: 8  Waga z opakowaniem [kg]: 10 INSTALACJA Po wyjęciu urządzenia z opakowania należy sprawdzić czy nie zostało ono uszkodzone podczas transportu.

  • Page 9: Specyfikacja Zasilania

    Funkcja Efekt CH 1 0-255: 0°-540° 0-127: 0°-360° CH 2 TIlt 128-192: Obrót bez limitu w prawo, szybko - wolno 193-255: Obrót bez limitu w lewo, wolno – szybko CH 3 Pan / Tilt speed 0-255: Szybko – wolno www.flash-butrym.pl...
  • Page 10 LED Sphere MOVING HEAD 12x12 4in1 No Limit F7100083 CH 4 Ściemnianie 0-255: 0-100% CH 5 Wbudowane programy 0-255: Różne programy CH 6 Strobo 0-255: Strobo, wolno – szybko CH 7 Zmiana kolorów 0-255: Różne program CH 8 Tryb Auto 0-255: Różne opcje...
