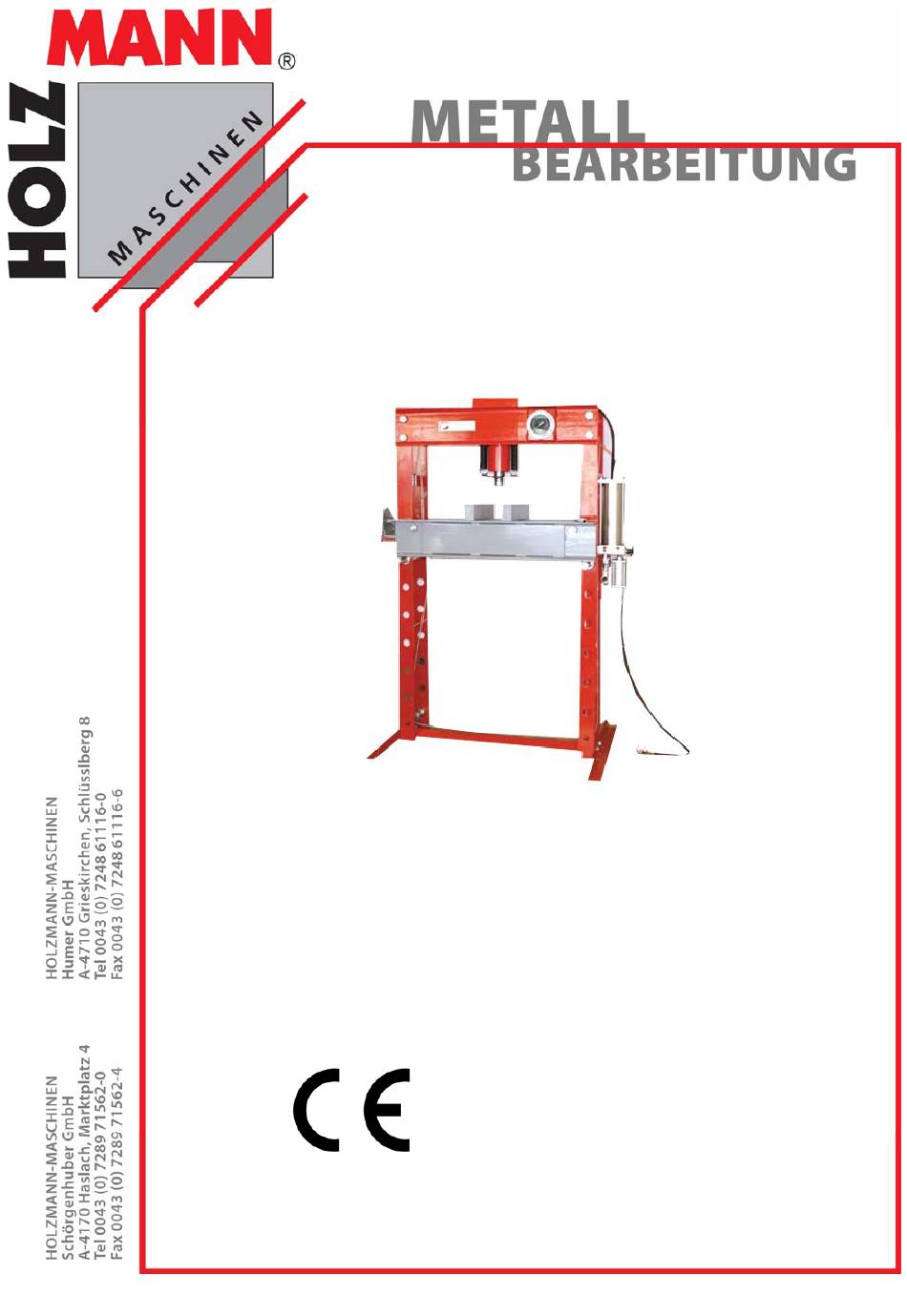

- Page 1 Operation Manual Workshop Press WP 45H Read this operation manual carefully before first use! Technical changes and errors excepted! Version: 2010 – Revision 01 - ENGLISH...
- Page 2 Tel 0043 7289 71562 - 0 Fax 0043 7289 71562 - 4 HOLZMANN MASCHINEN Humer GmbH A-4710 Grieskirchen, Schlüsslberg 8 Tel 0043 7248 61116 - 0 Fax 0043 7248 61116 - 6 HOLZMANN Maschinen Austria ξ www.holzmann-maschinen.at Seite 2 Operation Manual Shop Press WP 45H...
-
Page 3: Table Of Contents
MAINTENANCE SPARE PARTS How to order spare parts ................... 11 KONFORMITÄTSERKLÄRUNG/CERTIFICATE OF CONFORMITY PRODUCT EXPERIENCE FORM HOLZMANN Maschinen Austria ξ www.holzmann-maschinen.at Seite 3 Operation Manual Shop Press WP 45H... -
Page 4: Techncal Information
Crank for cable winch Pressure Zylinder Lever support Air hose reel 1.2 Technische Daten maximum pressure ram diameter total weight bed width working width 0-750 dimensions (WxH) 1400x1710 stroke HOLZMANN Maschinen Austria ξ www.holzmann-maschinen.at Seite 4 Operation Manual Shop Press WP 45H... -
Page 5: Security
It is forbidden to change any parameters on the machine with- out prior written permission by us. The Shop Press WP 45H is designed for pressing bending and straightening works of metallic workpieces. 2.1.1 Working conditions... -
Page 6: Residual Risks
SECURITY The shop press WP 45H shall be used only by trained personnel. Non authorized personnel, especially children, shall be kept away from the machine! When working with the machine, don’t wear loose clothing, long hair openly or loose jewellery like necklaces etc. -
Page 7: Assembly & Setup The Workplace
Assure yourself that the underground is stable and suitable for the machine weight. As- sure yourself that the machine stands even. When choosing a workplace reserve 0.8m distance around the machine. 3.2 Assembly Please follow the assembly instructions HOLZMANN Maschinen Austria ξ www.holzmann-maschinen.at Seite 7 Operation Manual Shop Press WP 45H... - Page 8 Install the pressure gauge (29) by connecting one end of the gauge hose (32) to the pres- sure gauge, the other end to the fitting on the base of the ram assembly. HOLZMANN Maschinen Austria ξ www.holzmann-maschinen.at Seite 8 Operation Manual Shop Press WP 45H...
-
Page 9: Operation Before First Operation
• You can use instead oft he manual lever as well pneumatic pressure. • Connect for this the air hose reel with the pneumatic pressure device and for applying pressure onto the ram, press slightly the handle HOLZMANN Maschinen Austria ξ www.holzmann-maschinen.at Seite 9 Operation Manual Shop Press WP 45H... -
Page 10: Maintenance
Do not store the machine in a room with high humidity. HOLZMANN Maschinen Austria ξ www.holzmann-maschinen.at Seite 10 Operation Manual Shop Press WP 45H... -
Page 11: Spare Parts
Please indicate your HOLZMANN DEALER, which spare part you need. H I N W E I S Using other spareparts than ORIGINAL spare parts without prior written permission by HOLZMANN renders subsequent guarantee claims invalid! HOLZMANN Maschinen Austria ξ www.holzmann-maschinen.at Seite 11 Operation Manual Shop Press WP 45H... -
Page 12: Konformitätserklärung/Certificate Of Conformity
Veränderungen an der Maschine vorgenommen werden, die nicht mit uns abgestimmt wur- den. Hereby we declare that the mentioned machines fulfil the above stated EC-Directives. Any ma- nipulation of the machines, not authorized by HOLZMANN Maschinen explicitly, renders this document invalid. Haslach, 06.03.2008... -
Page 13: Product Experience Form
Tel 0043 7289 71562 - 0 Fax 0043 7289 71562 - 4 HOLZMANN MASCHINEN Humer GmbH A-4710 Grieskirchen, Schlüsslberg 8 Tel 0043 7248 61116 - 0 Fax 0043 7248 61116 - 6 HOLZMANN Maschinen Austria ξ www.holzmann-maschinen.at Seite 13 Operation Manual Shop Press WP 45H...
