OPS70_Simple_Install_v1-1.indd
©2018 Procam Controls, Inc. All Rights Reserved

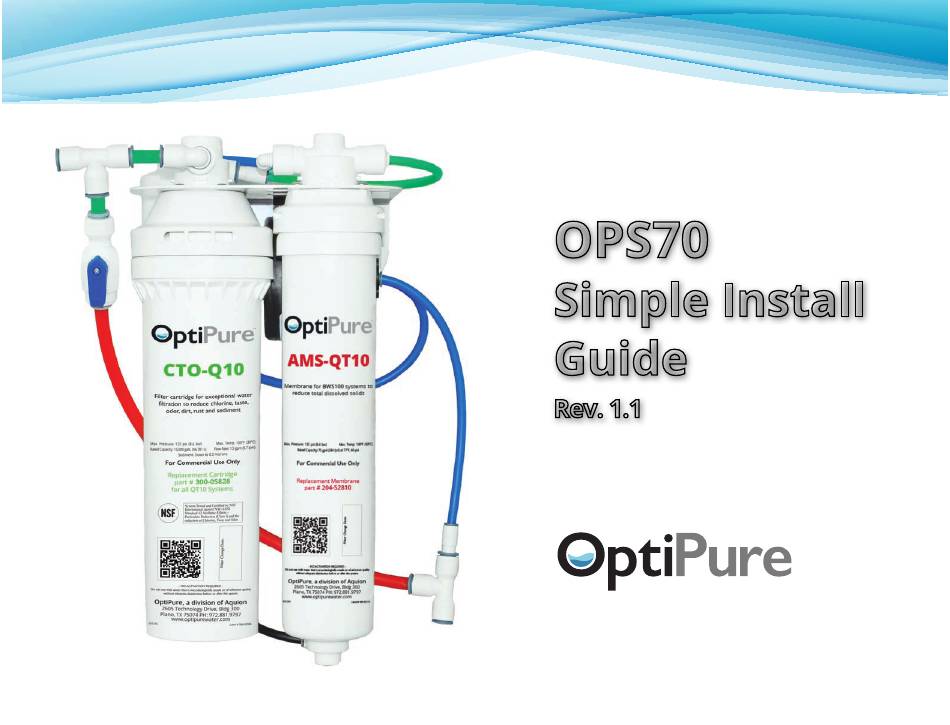

OPS70
Simple Install
Guide
Rev. 1.1
Access manuals, spec sheets and additional educational
materials for foodservice water treatment at our website.
www.optipurewater.com

Advertisement

Table of Contents
loading

Summary of Contents for OptiPure OPS70

  • Page 1 OPS70 Simple Install Guide Rev. 1.1 Access manuals, spec sheets and additional educational materials for foodservice water treatment at our website. www.optipurewater.com OPS70_Simple_Install_v1-1.indd ©2018 Procam Controls, Inc. All Rights Reserved...
  • Page 2: General Information

    Completed E-mail correspondence to: ps@optipure.net OPS70 Installation Environmental Conditions The OPS70 is certified to operate under the following conditions: 1. Altitude up to 2000 m. 2. Ambient Temperature of 40˚ - 105˚F (5˚ - 40˚C). 3. Maximum Relative Humidity 80% at 88˚F (31˚C).
  • Page 3: Installation Requirements

    15 feet use larger inside diameter tubing or hose to minimize pressure drop. Feed Water Connection An adequate flow and pressure of water to the unit is essential for successful operation. OPS70 Simple Install Guide...
  • Page 4 Reject Water IMPORTANT - PROTECT PROCESSOR AND TANK FROM THE ELEMENTS. DO NOT INSTALL (To Drain) Optimized Water Storage Tank IN DIRECT SUNLIGHT OR WHERE EXPOSED TO - 2.5 gals. Bladder Tank Shown FREEZING TEMPERATURES OR RAIN. OPS70 Simple Install Guide...
  • Page 5 Attach the system with 2 screws (user supplied) through the attachment keyholes shown below. Use anchors or attach directly to studs. Be sure to allow at least 3” clearance below cartridges for removal. Use Keyholes in Bracket OPS70 Simple Install Guide...
  • Page 6 Remove the plug from the fitting at the bottom of the Membrane and insert the end of the black tubing coming from the lower left part of the Permeate Pump. Attention: Warranty will be void if this step is not performed properly. OPS70 Simple Install Guide...
  • Page 7 Feedwater Supply Valve. (Do not over-tighten.) fasten to the wall and at the drain connection. (Some locations may require an approved air Step 5b gap. Optional OptiPure Air Gap available, part number: 164-89905) Step 6 Connect a piece of 3/8” green tubing to the Feed Water Supply Valve.
  • Page 8 1/2” gray hose and secure with clamp. Insert into the Tank Tee Step 7a as shown. This will later be the water supply connection to downstream equipment. Step 7b Do not connect to equipment at this time. OPS70 Simple Install Guide...
  • Page 9: Flush The System

    Note: During normal operation, the water Step 9b flow alternates between the optimized water line and the drain line. You will notice that the water flow pulses when the system is making Ensure Tank Valve is CLOSED. water. OPS70 Simple Install Guide...
  • Page 10 Connect ONLY to the treated/steam water connection at the equipment. Do not connect to the drain/condensate supply. Step 11 Step 12 Tank Valve in Optimized Water Open position to Equipment OPS70 Simple Install Guide...
  • Page 11 (this could take 30 minutes to several hours depending on the tank capacity). IMPORTANT: Do not leave the system in bypass. This could result in damage to the downstream equipment. Step 13 Tank Bypass OPS70 Simple Install Guide...
  • Page 12: Operation

    IMPORTANT: Leaving the system in bypass could cause damage to downstream equipment. If the problem persists contact Be sure Bypass Valve is closed and turn your OptiPure dealer for assistance. pre-filter cartridge 1/4 turn to the left . Open Closed...
