Summary of Contents for OptiPure OPS175

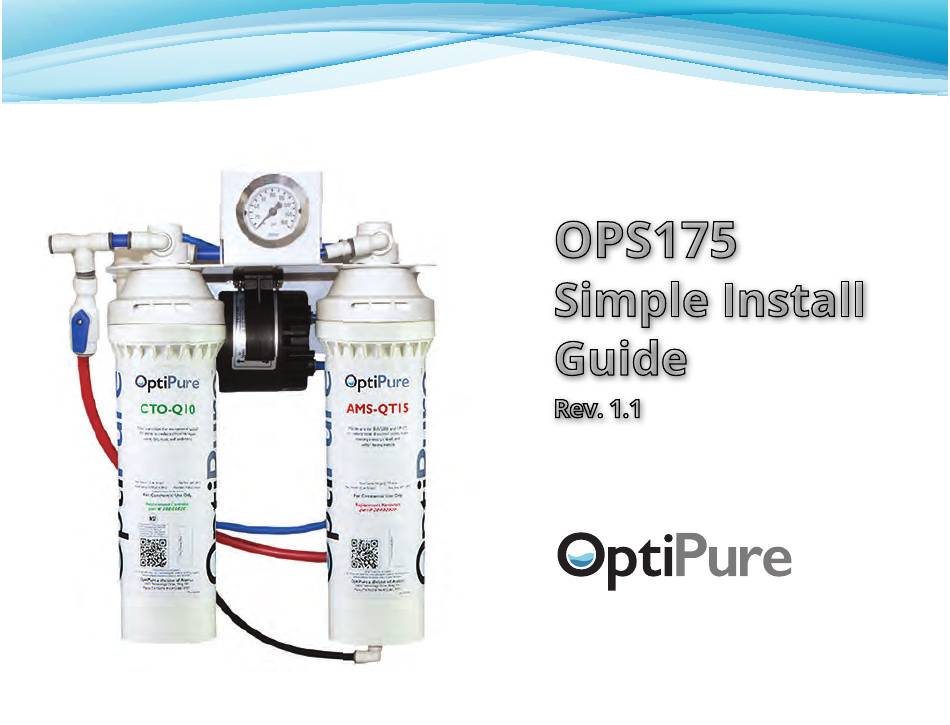

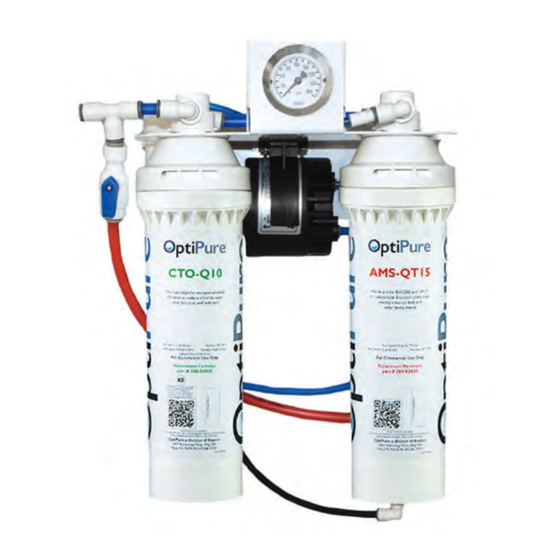

- Page 1 OPS175 Simple Install Guide Rev. 1.1 Access manuals, spec sheets and additional educational materials for foodservice water treatment at our website. www.optipurewater.com OPS175_Simple_Install_v1-1.indd ©2018 Procam Controls, Inc. All Rights Reserved...
-
Page 2: General Information
Completed E-mail correspondence to: ps@optipure.net OPS175 Installation Environmental Conditions The OPS175 is certified to operate under the following conditions: 1. Altitude up to 2000 m. 2. Ambient Temperature of 40˚ - 105˚F (5˚ - 40˚C). 3. Maximum Relative Humidity 80% at 88˚F (31˚C). -
Page 3: Installation Requirements
Feed Water Connection An adequate flow and pressure of water to the unit is essential for successful operation. OPS175 Simple Install Guide... - Page 4 Reject Water to Drain blade. Do not cut with wire crimpers (To Drain) Optimized Water Storage Tank or dikes. When routing and securing tubing avoid loops or kinks. - 2.5 gals. Bladder Tank Shown OPS175 Simple Install Guide...
- Page 5 Attach the system with 2 screws (user supplied) through the attachment keyholes shown below. Use anchors or attach directly to studs. Be sure to allow at least 3” clearance below cartridges for removal. Use Keyholes in Bracket OPS175 Simple Install Guide...
- Page 6 Remove the plug from the fitting at the bottom of the Membrane and insert the end of the black tubing coming from the lower left part of the Permeate Pump. Attention: Warranty will be void if this step is not performed properly. OPS175 Simple Install Guide...
- Page 7 Feedwater Supply Valve. (Do not over-tighten.) fasten to the wall and at the drain connection. Step 5b (Some locations may require an approved air gap. Optional OptiPure Air Gap available, part number: 164-89905) Step 6 Connect a piece of 3/8” green tubing to the Feedwater Supply Valve.
- Page 8 Make Optimized Water Connections MODEL: OPS175 - Follow instructions below and proceed to Step 8 on page 10. MODEL: OPS175CR - With Chloramine Post-Filter, continue with all steps. Connector Fitting Step 7a Step 7b Step 7a Step 7a...
- Page 9 Securely mount with 2 screws (user supplied). Step 7c-CR Step 7a-CR Connect a piece of 3/8” blue tubing to the Step 7b-CR optimized water fitting from the processor. Connect the other end to the inlet push-connect fitting on the post filter. OPS175 Simple Install Guide...
-
Page 10: Flush The System
Ensure Tank Valve is CLOSED. and the drain line. You will notice that the water flow pulses when the system is making water. Step 8 Step 10 Step 9a Step 9b OPS175 Simple Install Guide... - Page 11 (supplied) into the 1/2” gray hose and secure with clamp. Connect ONLY the treated/ steam water connection at the equipment. Do no connect to the drain/condensate supply. Step 11 Step 12 Tank Valve in Optimized Water Open position to Equipment OPS175 Simple Install Guide...
- Page 12 (this could take 30 flow to the tank. minutes to several hours depending on the tank capacity). IMPORTANT: Do not leave the system in bypass. This could result in damage to the downstream equipment. Step 13 Open Bypass OPS175 Simple Install Guide...
-
Page 13: Operation
Be sure Bypass Valve is closed and turn equipment. If the problem persists contact pre-filter cartridge 1/4 turn to the left . your OptiPure dealer for assistance. Open Closed The water is now shut off and the system is ready for filter or membrane replacement or other maintenance.
