Installation, Operation & Maintenance Manual

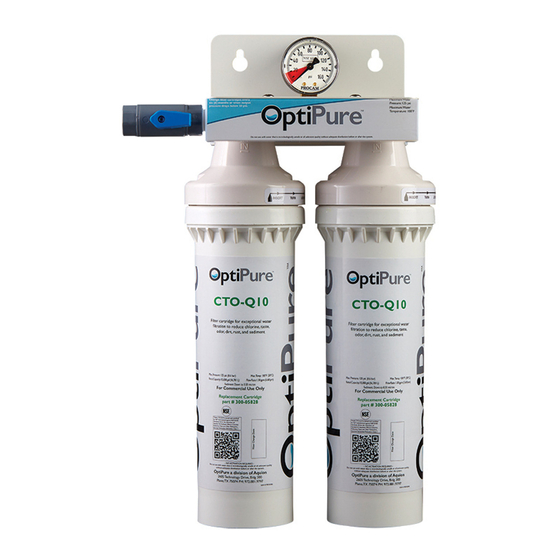

For: Manifold Series QT, QTI, QTC, QTCR
Models:
QT10-2
QT-2
QT10-3
QT-3
QTI10-2
QT-4
QTI10-3
QTI-2
QT-1+
QTI-3
QT-2+
QTI-4
QTI-1+
QTI-2+
101 S. Gary Ave Roselle, IL 60172
www.optipurewater.com
(972)881-9797
QTC-2
QTCR-2
QTC-3
QTCR-3
QTC-4
QTCR-4
QTC-1+
QTC-2+
QT1+CR
QTI1+CR
P/N 970-09704
Rev: A,04/11/19
Advertisement
Table of Contents
Related Manuals for OptiPure QT Series
Summary of Contents for OptiPure QT Series
- Page 1 Installation, Operation & Maintenance Manual For: Manifold Series QT, QTI, QTC, QTCR Models: QT10-2 QT-2 QTI-2 QT-1+ QTC-2 QTCR-2 QTC-1+ QT10-3 QT-3 QTI-3 QT-2+ QTC-3 QTCR-3 QTC-2+ QTI10-2 QT-4 QTI-4 QTI-1+ QTC-4 QTCR-4 QT1+CR QTI10-3 QTI-2+ QTI1+CR 101 S. Gary Ave Roselle, IL 60172 www.optipurewater.com (972)881-9797 P/N 970-09704...
- Page 2 ● Do NOT mount the system behind equipment. The unit must be easily accessible for filter replacement. ● Failure to change cartridges per recommended intervals with OptiPure replacement cartridges may lead to system failure and property damage.
- Page 3 & consistency of your products. The OptiPure System is built with the finest, most advanced materials and each system is quality inspected and pressure tested prior to shipment. Proper system installation and routine filter changes will ensure years of trouble-free operation and performance.
- Page 4 ® Filtertrak® is an online application that enables low maintenance service and filter monitoring of water treatment systems, ensuring customers get the full performance of their system. HOW DOES FILTERTRAK WORK? FilterTrak manages timely, proper filter replacement which: • Reduces maintenance •...
- Page 5 System/ Operating Specification & Connections: Maximum Pressure: 125 psi/8.6 bar Operating Temperature: 35° - 100°F (2° - 32°C) Inlet/Outlet Connections: 1/2” NPT Male Fittings Standard on all QT 2, and QT 3 Systems - 3/4” NPT Male Fittings Standard on QT-4, QTI-4, QTC-4 1/2”...
- Page 6 Capacity: Change filters at gallon rating or at least every 6 months, or when pressure gauge needle enters the red zone on the outlet gauge while water is flowing through the filter system under normal operating conditions. Model Flowrate Capacity Scale Reduction of Name...
-
Page 7: Dimensional Drawing
Dimensional Drawing: 4 3 4 " 14 1 4 " 14 1 4 " 14 1 4 " 18 3 8 " 23 1 4 " 23 1 4 " Model: QT10-2 Model: QT1+CR Model: QT-1+ Model: QTC-2 Model: QTI10-2 Model: QTI1+CR Model: QTI-1+ Model: QTC-1+... -
Page 8: Installation Precautions
• Do NOT install system in direct sunlight or where system is exposed to harsh chemicals or may be subjected to being struck by moving equipment, carts, mops or any other item that may cause damage. • IF water hammer is evident, install water hammer arrestors before OptiPure unit. Mounting Installation Procedure : Dimensions Turn off... - Page 9 2. Slowly turn the Multi-Function Valve top handle into the Operating Position. (See Figure 1 on page 10.) Turn Flush Valve Options a. / b. to open positions. 3. Allow water to flush through the OptiPure System for 5 to 10 minutes or until the water runs clear.
-
Page 10: Operating Position
Multi-Function Valve The OptiPure Manifold System includes a Multi-Function Valve that allows the System to have the water turned off, or be put into bypass. The white handles on the valve provide a clear indication of the water flow path in each position. The three points on the tee shape of the handle indicate a path the flow can take. - Page 11 Insert wrench as shown to help rotate handles 90 degrees in each direction from Service Position. Alternate Outlet Locations The OptiPure Manifold System has the ability to be flexible with treated water outlet locations. The outlet fitting can be switched to the other end of the Manifold System if Inlet and Outlet needs to be on opposite sides of the system.
-
Page 12: Replacement Filter Cartridges
Replacement Filter Cartridges: OptiPure Filter Systems are designed, tested, and certified with OptiPure filter cartridges with proven performance, size and operating capacities. Use of replacement cartridges other than those specified will void warranties, certifications and may compromise equipment protection, water quality and cartridge life. -
Page 13: Operation
Operation: With adequate pressure, normal operation of the OptiPure System is completely automatic. Dependable operation involves only monitoring of outlet pressure, periodic filter changes and service documentation. Filter Change Frequency: Several situations will mandate filter changes. Complete filter sets should be changed when any of... -
Page 14: Maintenance
Pressure Gauge Monitoring: Periodically monitor the pressure gauge on the OptiPure System. If the needle on the gauge ever enters the red zone (while the connected equipment is in operation and water is flowing through the system to the equipment) it may be an indication that the filters have become clogged. - Page 15 Flush Kit Optional attachment to Multi-Function Valve To install Flush Valve Assembly: 1. Turn Multi-function Valve to Off Position and relieve pressure to OptiPure System. 2. To remove White Port Plug on Multi-Function Valve remove Port Clip using small flat head screwdriver.
- Page 16 Manufactured by : OptiPure 101 S. Gary Ave., Suite A Roselle, IL 60172 p: 972.881.9797 e: info@optipure.net www.optipurewater.com...
