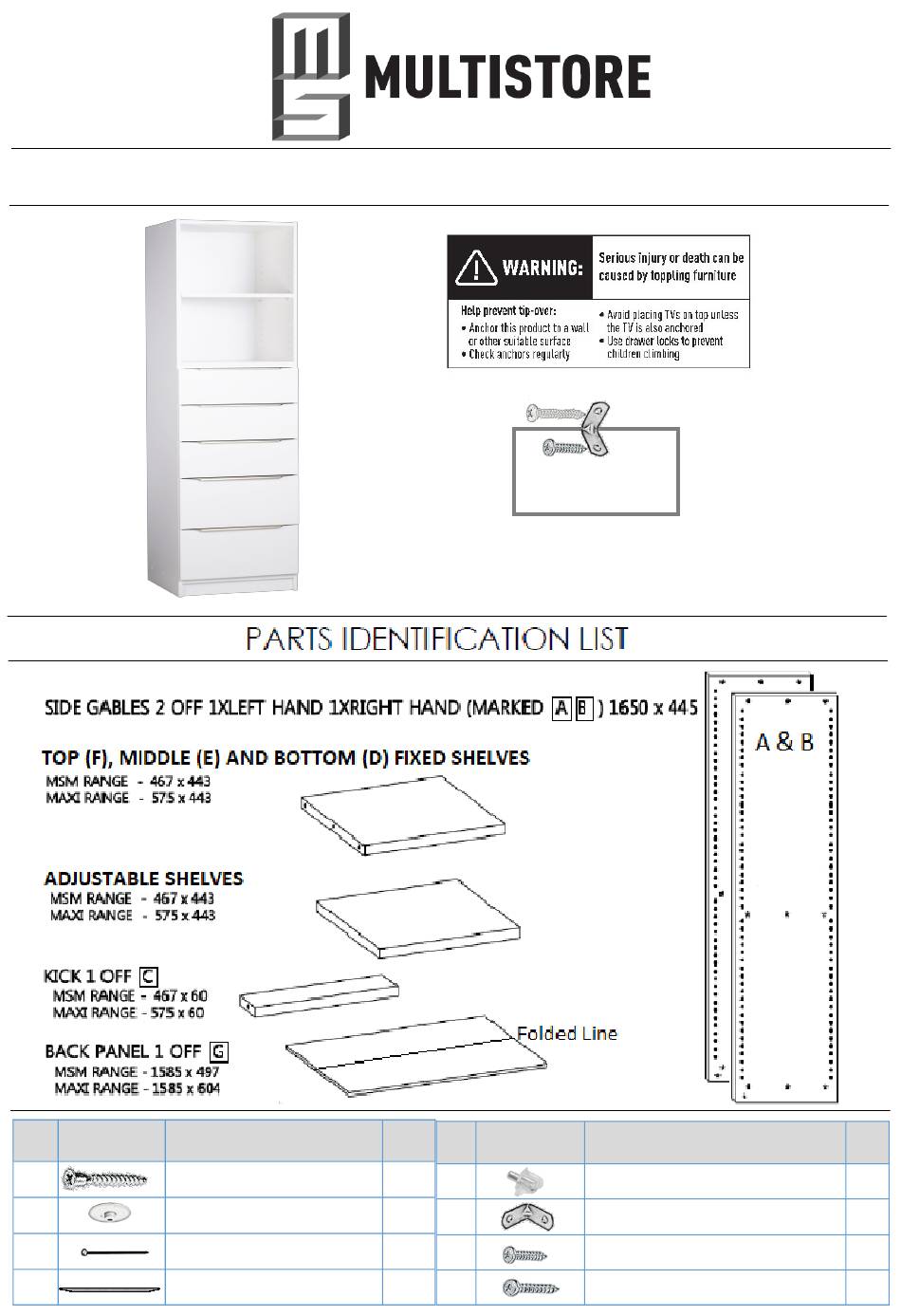

ASSEMBLY INSTRUCTION FOR MAXI & MSM C16
NO
MODEL
DESCRIPTION
1
CONFIRMAT SCREWS
2
CAPS
3
BACKING NAILS
4
HANDLES
PARTS IDENTIFICATION LIST
TOP of UNIT
When attaching unit to wall put safety bracket in
middle of unit with 16 Pan head screw then 25mm
Pan head screw into wall.
For plasterboard without a stud it is recommended
to use a plug with screw (not provided).
QTY
NO MODEL
20
5
20
6
75
7
5
8
DESCRIPTION
SHELF PINS
BRACKETS
BRACKET UNIT SCREW
BRACKET WALL SCREW
QTY
4
1
1
1
Advertisement
Table of Contents
Related Manuals for Multistore Maxi C16
Summary of Contents for Multistore Maxi C16
- Page 1 ASSEMBLY INSTRUCTION FOR MAXI & MSM C16 TOP of UNIT When attaching unit to wall put safety bracket in middle of unit with 16 Pan head screw then 25mm Pan head screw into wall. For plasterboard without a stud it is recommended to use a plug with screw (not provided).
- Page 3 PROCEED TO UN-FOLD YOUR BACK BOARD AND PROCEED TO NAIL IT INTO POSITION MAKING SURE YOU ARE SQUARE AND ON THE EDGE AT ALL TIMES. STAND YOUR UNIT UP AND PROCEED TO INSERT YOUR ADJUSTABLE SHELVING. PUSH THE 4 SHELF PINS INTO THE HOLES PROVIDED (5) ON EITHER SIDE FOR YOUR SHELF TO SIT ON, THE BEST WAY TO DO THIS IS TO COUNT YOUR HOLES UP FROM THE BOTTOM SO YOUR SHELF WILL BE LEVEL.
- Page 4 HOW TO ASSEMBLE YOUR 5—DRAWER MODEL DESCRIPTION NO MODEL DESCRIPTION CONFIRMAT SCREWS CAMS DOWELS CAM PINS BACKING NAILS 30mm 8 GAUGE INFILL SCREW 5/8 X 6 WOOD SCREWS EURO SCREWS HANDLES INFILL RUNNERS PER SET STEP1. LAYOUT YOUR DRAWER PIECES FLAT AS PER DESIGN WITH PRE-DRILLED HOLES FACING UP. START WITH THE BACK OF THE FRONT DRAWER AND PLACE YOUR DOWELS &...
- Page 5 DRAWER ASSEMBLY STEP 3. STEP 4 YOUR DRAWER SHOULD BE FACING DOWN WITH THE FRONT DRAWER EXSPOSING THE CUTOUT FOR THE BASE TO BE PUSHED INTO FACE DOWN WITH THE BROWN SIDE SHOWING. MAK- ING SURE YOU HAVE THE DRAWER SQUARE, PROCEED TO NAIL DOWN THE BASE SPACING THEM OUT AROUND THE EDGE OF THE THREE SIDES.
- Page 6 INSTRUCTIONS FOR RUNNER PLACEMENT Executive Series DIAGRAM 1 ● ● Models Hole Positions Fixed Shelf Position ● ● EXC – 4J 1 – 8 – 15 - 22 ● ● EXC – 5C 1 – 8 – 15 – 20 – 25 ●...
- Page 7 Multistore Industries (Aust) directly on (07) 3208 6799 and state date of pur- chase, place of purchase and proof of purchase. Multistore Industries (Aust) will replace any faulty or defect parts at no cost to the • customer. A replacement will be sent to you as soon as possible, or product can be exchanged at the store of purchase.
