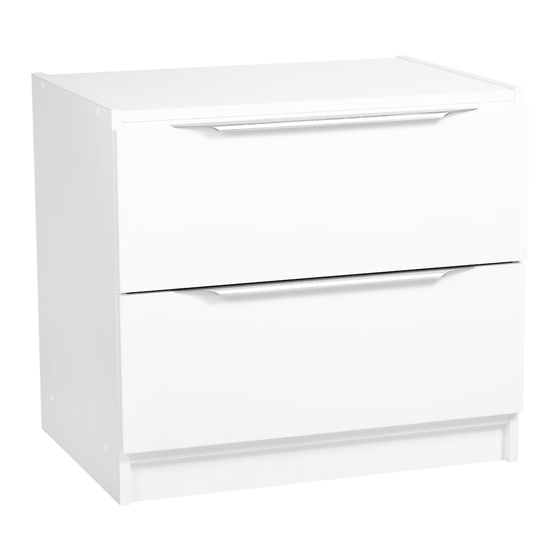

Assembly Instructions FOR MODEL LSD 550
2 x PANELS - 1 x LEFT HAND, 1 x RIGHT HAND
TOP AND BOTTOM FIXED SHELF 1 x TOP 1 x BOTTOM
1 x KICK
575mm x 61mm
2 x Drawers
1 x BACK PANEL 485mm x 604mm
Industries (Aust) Pty Ltd
PARTS IDENTIFICATION LIST
HARDWARE LIST
NO
MODEL
1
2
3
4
5
6
7
9 Nevilles St, Underwood, Brisbane, QLD 4119
Ph: 07 3208 6799 Fax: 07 3290 6332
Int Ph: +61 7 3208 6799 Int Fax: +61 7 3290 6332
Email: sales@multi-store.com.au
www.multi-store.com.au
LSD 550mm H x 608mm W x 430mm D
557mm H x 424mm W
DESCRIPTIONS
QTY
M50 x 5mm
CONFIRMAT SCREWS
WHITE CAPS
NAILS
FIXING OF BACK
5/8 x 6 WOOD SCREWS
FIXING SHELF RUNNER
EURO SCREW
ATTACHMENT OF RUNNERS
HANDLE SCREWS
DRAWER RUNNERS
550mm H x 426mm W x 16mm D
10
10
25
8
8
4
2
Advertisement
Table of Contents
Related Manuals for Multistore LSD 550
Summary of Contents for Multistore LSD 550
- Page 1 Int Ph: +61 7 3208 6799 Int Fax: +61 7 3290 6332 Email: sales@multi-store.com.au Industries (Aust) Pty Ltd www.multi-store.com.au ASSEMBLY INSTRUCTIONS FOR MODEL LSD 550 LSD 550mm H x 608mm W x 430mm D PARTS IDENTIFICATION LIST 2 x PANELS - 1 x LEFT HAND, 1 x RIGHT HAND...
- Page 2 ASSEMBLY INSTRUCTIONS FOR MODEL LSD 550 Back View Completed STEP 1: ALIGN FIXED SHELVES (D & C) AND KICK BOARD (B) TO LEFT PANEL (A) AND RIGHT PANEL (E). TIGHTEN USING M50 x 5MM CONFIRMAT SCREWS. COVER SCREWS WITH WHITE CAPS STEP 2: WITH THE UNIT LYING ON ITS FACE, ATTACH THE BACK PANEL (F) MAKING SURE TO KEEP IT PARALLEL TO THE TOP AND SIDES OF THE UNIT.
