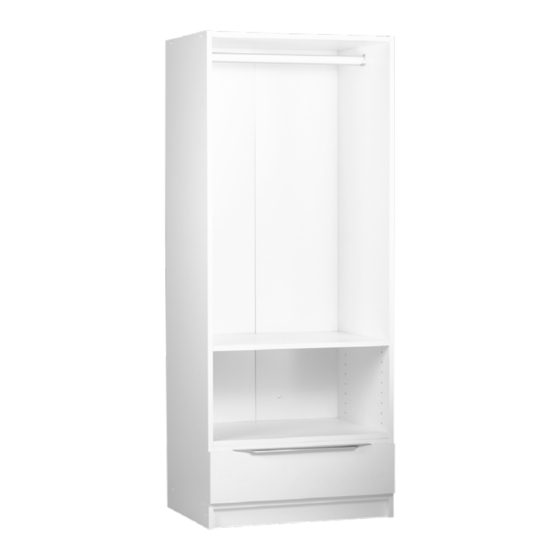

- Page 1 Assembly InstructIons mAXI uLtrA-HS2 CLASSIC RANGE HAngIng rAIL FIXeD SHeLF Jumbo DrAWer PACK 1495H x 608W x 430D WHITE #2669938 LIgHT Oak #2683484 Dark COCO #2683522...
- Page 2 ASSEMBLY INSTRUCTION FOR MAXI ULTRA HS2 TOP of UNIT When attaching unit to wall put safety bracket in middle of unit with 16mm pan head screw then 25mm pan head screw into wall. For plasterboard without a stud it is recommended to use a plug with screw (not provided).
- Page 3 TAKE YOUR GABLES AND LAY THEM OUT FLAT, YOU SHOULD HAVE A LEFT AND RIGHT GABLE. NEXT STEP REQUIRES YOU TO OPEN PART 2 FIXED SHELF AND RETREVE THE INFILL. AND SCREWS. KICK INSERT YOUR 4 PINS INTO THE HOLE NO: THEN INSERT THE CAMS INTO THE HOLES INFILL PROVIDED ON YOUR SHELF .
- Page 4 1 x DRAWER ASSEMBLY INSTRUCTION MODEL DESCRIPTION NO MODEL DESCRIPTION CONFIRMAT SCREWS CAMS DOWELS CAM PINS BACKING NAILS 30mm 8 GAUGE SCREW 5/8 X 6 WOOD SCREWS 6 EURO SCREWS INFILL HANDLE RUNNERS PER SET STEP 1. LAYOUT YOUR DRAWER PIECES FLAT AS PER DESIGN WITH PRE- DRILLED HOLES FACING UP.
- Page 5 DRAWER USING THE WOOD SCREWS PROVIDED (No:4) SCREW TWO INTO EACH RUNNER . REPEAT FOR THE OTHER SIDE PICTURE OF YOUR FINISHED DRAWER Multistore Industries (Aust) Pty Ltd 9 Nevilles Street, Underwood, QLD 4119 Tel—(07) 3208 6799 Fax- (07) 3209 6332 www.multistore.com.au...
- Page 6 INSTRUCTIONS FOR RUNNER PLACEMENT DIAGRAM 1 Executive Series ● ● Models Hole Positions Fixed Shelf Position ● ● EXC – 4J 1 – 8 – 15 - 22 ● ● EXC – 5C 1 – 8 – 15 – 20 – 25 ●...
- Page 7 Storage units for any room multistore.com.au multistore Industries (Aust) Pty Ltd 9 nevilles Street, underwood QLD 4119 P:+61 (7) 3208 6799 sales@multistore.com.au For easy assembly instructions, please refer to video on our website: www.multistore.com.au...
