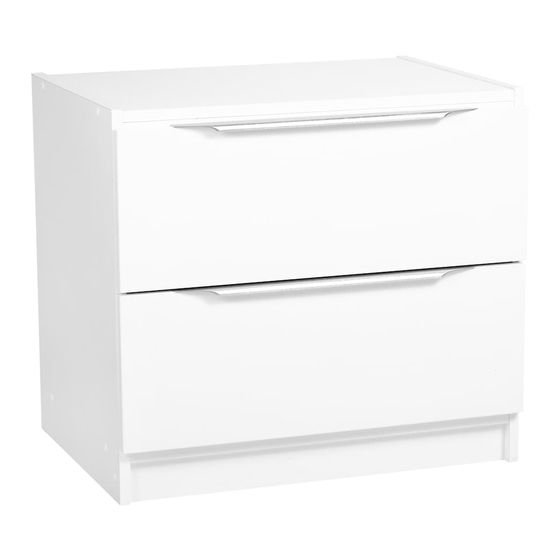

- Page 1 ASSEMBLY INSTRUCTION FOR LSD 550 LSD 550 1 x BOTTOM KICK C & D 2 x FIXED SHELVES 1 x FOLDED BACK 2 x GABLES NO MODEL DESCRIPTION CONFIRMAT SCREWS 50mm x 5mm CAPS BACKING NAILS 16mm PAN HEAD UNIT WOOD SCREWS 25mm PAN HEAD WALL WOOD SCREWS “L”...
- Page 2 ASSEMBLY INSTRUCTION FOR LSD 550 INFILL TOP of UNIT YOU WILL NEED TO RETRIEVE THE INFILL, USING 3 X 30mm SCREWS PROVIDED, ATTACH THE INFILL TO THE UNDER-SIDE OF THE CAM SHELF When attaching unit to wall put safety bracket in BEFORE PUTTING YOUR SHELF INTO PLACE.
- Page 3 DRAWER ASSEMBLY 2 DRAWER INSTRUCTION MODEL DESCRIPTION NO MODEL DESCRIPTION CONFIRMAT SCREWS CAMS DOWELS CAM PINS BACKING NAILS 30mm 8 GAUGE SCREW 5/8 X 6 WOOD SCREWS 12 EURO SCREWS INFILL 1 HANDLE RUNNERS PER SET STEP 1. LAYOUT YOUR DRAWER PIECES FLAT AS PER DESIGN WITH PRE- DRILLED HOLES FACING UP.
- Page 4 DRAWER USING THE WOOD SCREWS PROVIDED (No:4) SCREW TWO INTO EACH RUNNER . REPEAT FOR THE OTHER SIDE PICTURE OF YOUR FINISHED DRAWER Multistore Industries (Aust) Pty Ltd 9 Nevilles Street, Underwood, QLD 4119 Tel—(07) 3208 6799 Fax- (07) 3209 6332 www.multistore.com.au...
- Page 5 10 Year Warranty • If the purchaser has a fault or defect with this product, the purchaser needs to contact Multistore Industries (Aust) directly on (07) 3208 6799 and state date of purchase, place of purchase and proof of purchase.
