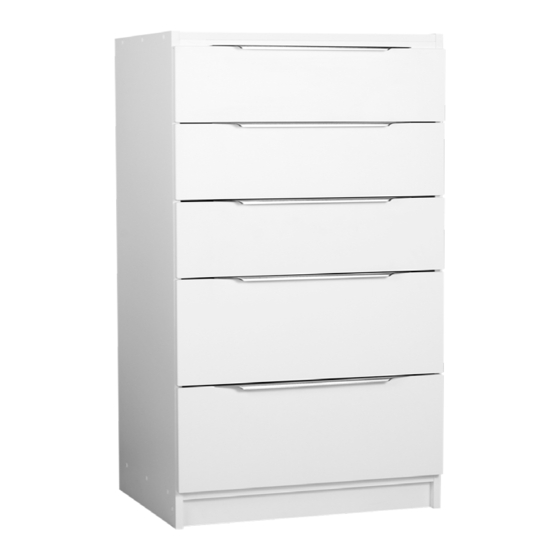

- Page 1 Assembly InstructIons eXb-5C ComPACt rAnge 3 StAnDArD DrAWerS Jumbo DrAWerS PACKS 1035H x 608W x 450D WHITE #0027264 LIgHT Oak #2683493 Dark COCO #2683531...
- Page 2 ASSEMBLY INSTRUCTION FOR EXB-5C PARTS IDENTIFICATION LIST NO MODEL DESCRIPTION MODEL DESCRIPTION CONFIRMAT SCREWS 16mm PANHEAD UNIT SCREWS 50mm x 5mm 25mm PAN HEAD SCREWS CAPS “L” SAFETY BRACKET BACKING NAILS...
- Page 3 FINALLY YOU WILL NEED TO RETRIEVE THE INFILL FROM PART 2, USING 3 X 30mm SCREWS PROVIDED, ATTACH THE INFILL TO THE UNDER-SIDE OF THE FIXED TOP SHELF. When attaching unit to wall put safety bracket in middle of unit with 16mm pan head screw then 25mm pan head screw into wall.
- Page 4 HOW TO ASSEMBLE YOUR 5—DRAWER MODEL DESCRIPTION NO MODEL DESCRIPTION CONFIRMAT SCREWS CAMS DOWELS CAM PINS BACKING NAILS 30mm 8 GAUGE INFILL SCREW 5/8 X 6 WOOD SCREWS EURO SCREWS HANDLES INFILL RUNNERS PER SET STEP1. LAYOUT YOUR DRAWER PIECES FLAT AS PER DESIGN WITH PRE-DRILLED HOLES FACING UP. START WITH THE BACK OF THE FRONT DRAWER AND PLACE YOUR DOWELS &...
- Page 5 DRAWER ASSEMBLY STEP 3. STEP 4 YOUR DRAWER SHOULD BE FACING DOWN WITH THE FRONT DRAWER EXSPOSING THE CUTOUT FOR THE BASE TO BE PUSHED INTO FACE DOWN WITH THE BROWN SIDE SHOWING. MAK- ING SURE YOU HAVE THE DRAWER SQUARE, PROCEED TO NAIL DOWN THE BASE SPACING THEM OUT AROUND THE EDGE OF THE THREE SIDES.
- Page 6 INSTRUCTIONS FOR RUNNER PLACEMENT DIAGRAM 1 Executive Series ● ● Models Hole Positions Fixed Shelf Position ● ● EXC – 4J 1 – 8 – 15 - 22 ● ● EXC – 5C 1 – 8 – 15 – 20 – 25 ●...
- Page 7 Storage units for any room multistore.com.au multistore Industries (Aust) Pty Ltd 9 nevilles Street, underwood QLD 4119 P:+61 (7) 3208 6799 sales@multistore.com.au For easy assembly instructions, please refer to video on our website: www.multistore.com.au...
