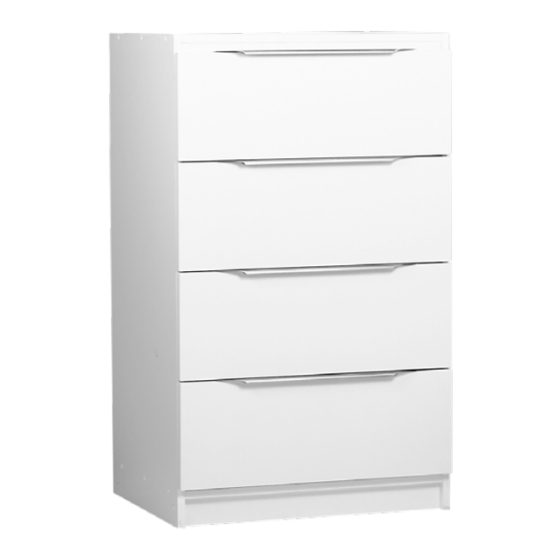

- Page 1 Assembly InstructIons eXb-4J ComPACt rAnge Jumbo DrAWerS PACKS 1035H x 608W x 450D WHITE #0027265 LIgHT Oak #2683494 Dark COCO #2683532...
-
Page 2: Parts Identification List
ASSEMBLY INSTRUCTION FOR EXB-4J PARTS IDENTIFICATION LIST NO MODEL DESCRIPTION MODEL DESCRIPTION CONFIRMAT SCREWS 50mm x 5mm 16mm PANHEAD UNITSCREWS 25mm PAN HEAD SCREWS CAPS BACKING NAILS “L” SAFETY BRACKET... - Page 3 NEXT YOU WILL NEED TO RETRIEVE THE INFILL FROM PART 2, USING 3 X 60mm SCREWS PROVIDED, ATTACH THE INFILL TO THE UNDER-SIDE OF THE FIXED SHELF. When attaching unit to wall put safety bracket in middle of unit with 16mm pan head screw then 25mm pan head screw into wall.
- Page 4 DRAWER INSTRUCTIONS TO SUIT EXB 4J UNITS - PART 2 MODEL DESCRIPTION NO MODEL DESCRIPTION CONFIRMAT SCREWS CAMS DOWELS CAM PINS BACKING NAILS 60mm WOOD SCREW 16mm WOOD SCREWS EURO SCREWS INFILL HANDLE RUNNERS PER SET STEP 1. LAYOUT YOUR DRAWER PIECES FLAT AS PER DESIGN WITH PRE-DRILLED HOLES FACING UP.
-
Page 5: Drawer Assembly
DRAWER USING THE WOOD SCREWS PROVIDED No: 4 SCREW TWO INTO EACH RUNNER . REPEAT FOR THE OTHER SIDE PICTURE OF YOUR FINISHED DRAWER Multistore Industries (Aust) Pty Ltd 9 Nevilles Street, Underwood, QLD 4119 Tel—(07) 3208 6799 Fax- (07) 3209 6332 www.multistore.com.au... - Page 6 INSTRUCTIONS FOR RUNNER PLACEMENT DIAGRAM 1 Executive Series ● ● Models Hole Positions Fixed Shelf Position ● ● EXC – 4J 1 – 8 – 15 - 22 ● ● EXC – 5C 1 – 8 – 15 – 20 – 25 ●...
- Page 7 Storage units for any room multistore.com.au multistore Industries (Aust) Pty Ltd 9 nevilles Street, underwood QLD 4119 P:+61 (7) 3208 6799 sales@multistore.com.au For easy assembly instructions, please refer to video on our website: www.multistore.com.au...
