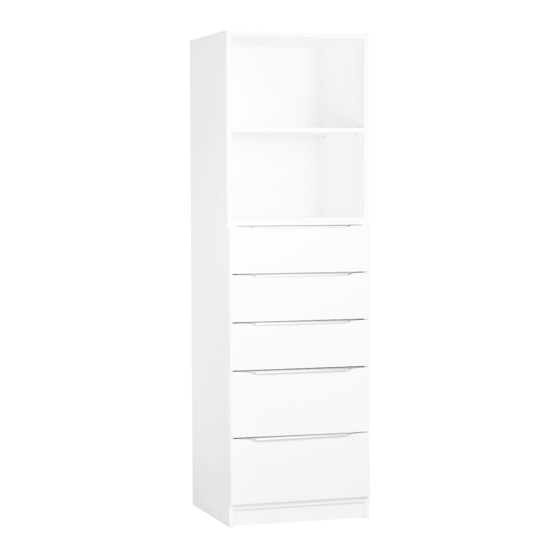

ASSEMBLY INSTRUCTION FOR MAXI & MSM C16
NO
MODEL
DESCRIPTION
1
CONFIRMAT SCREWS
2
CAPS
3
BACKING NAILS
4
HANDLES

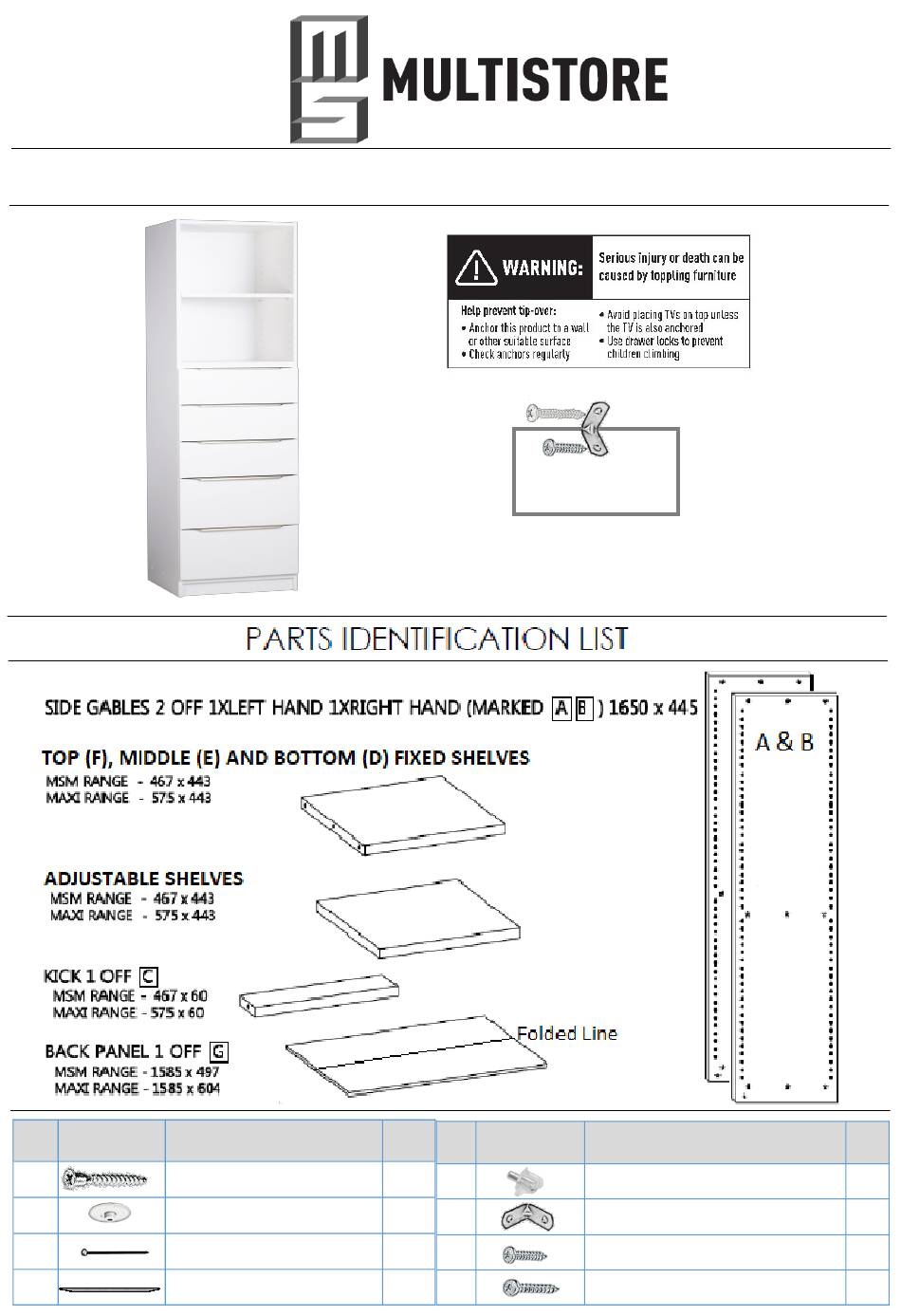

PARTS IDENTIFICATION LIST
TOP of UNIT
When attaching unit to wall put safety bracket in
middle of unit with 16 Pan head screw then 25mm
Pan head screw into wall.
For plasterboard without a stud it is recommended
to use a plug with screw (not provided).
QTY
NO MODEL
20
5
20
6
75
7
5
8
DESCRIPTION
SHELF PINS
BRACKETS
BRACKET UNIT SCREW
BRACKET WALL SCREW
QTY
4
1
1
1
Advertisement
Table of Contents
Related Manuals for Multistore MAXI 16
Summary of Contents for Multistore MAXI 16
- Page 1 ASSEMBLY INSTRUCTION FOR MAXI & MSM C16 TOP of UNIT When attaching unit to wall put safety bracket in middle of unit with 16 Pan head screw then 25mm Pan head screw into wall. For plasterboard without a stud it is recommended to use a plug with screw (not provided).
- Page 3 PROCEED TO UN-FOLD YOUR BACK BOARD AND PROCEED TO NAIL IT INTO POSITION MAKING SURE YOU ARE SQUARE AND ON THE EDGE AT ALL TIMES. STAND YOUR UNIT UP AND PROCEED TO INSERT YOUR ADJUSTABLE SHELVING. PUSH THE 4 SHELF PINS INTO THE HOLES PROVIDED (5) ON EITHER SIDE FOR YOUR SHELF TO SIT ON, THE BEST WAY TO DO THIS IS TO COUNT YOUR HOLES UP FROM THE BOTTOM SO YOUR SHELF WILL BE LEVEL.
