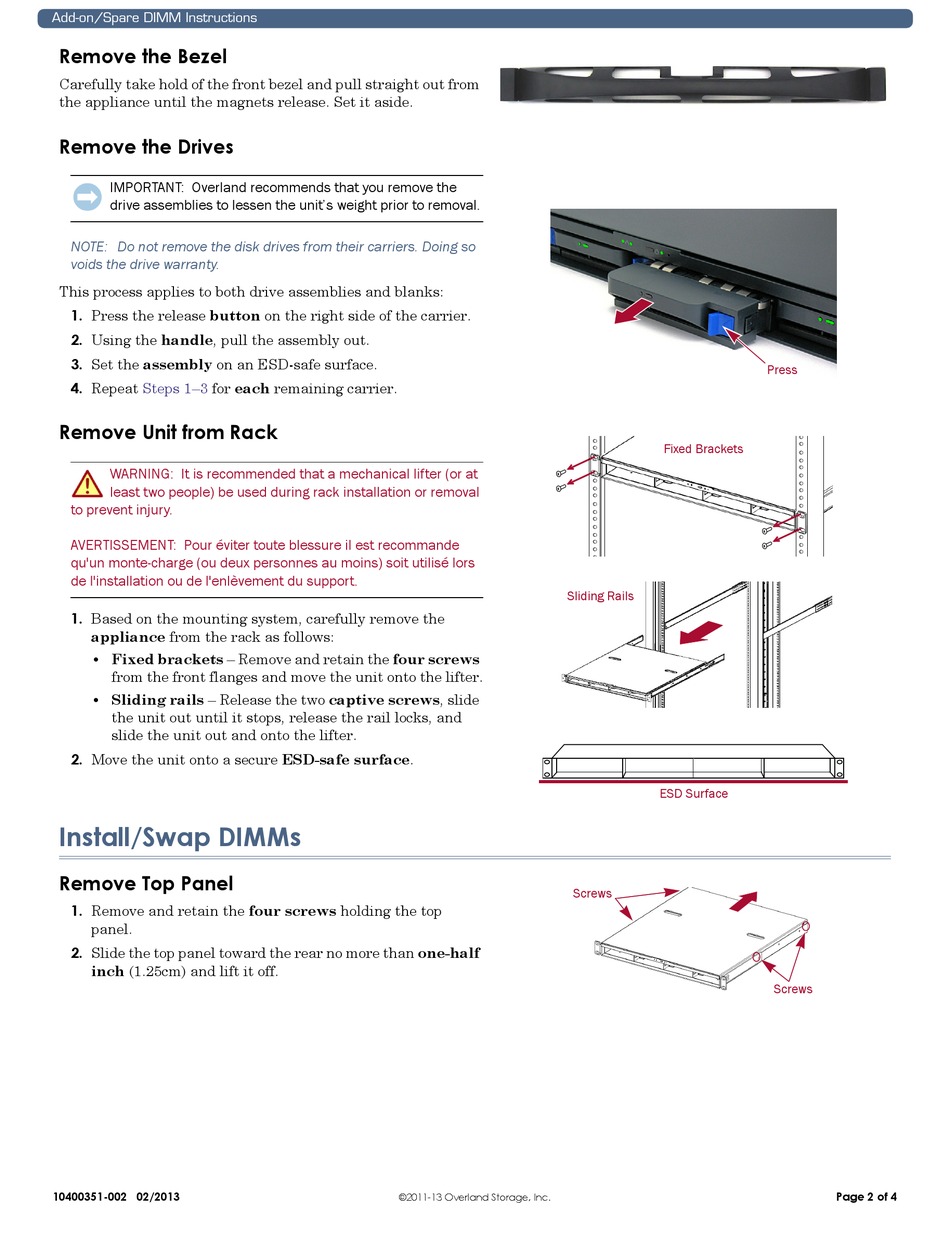

Add-on/Spare DIMM Instructions
Remove the Bezel
Carefully take hold of the front bezel and pull straight out from
the appliance until the magnets release. Set it aside.
Remove the Drives
IMPORTANT: Overland recommends that you remove the
drive assemblies to lessen the unit's weight prior to removal.
NOTE: Do not remove the disk drives from their carriers. Doing so
voids the drive warranty.
This process applies to both drive assemblies and blanks:
1. Press the release button on the right side of the carrier.
2. Using the handle, pull the assembly out.
3. Set the assembly on an ESD-safe surface.
4. Repeat Steps 1–3 for each remaining carrier.
Remove Unit from Rack
WARNING: It is recommended that a mechanical lifter (or at
least two people) be used during rack installation or removal
to prevent injury.
AVERTISSEMENT: Pour éviter toute blessure il est recommande
qu'un monte-charge (ou deux personnes au moins) soit utilisé lors
de l'installation ou de l'enlèvement du support.
1. Based on the mounting system, carefully remove the
appliance from the rack as follows:
• Fixed brackets – Remove and retain the four screws
from the front flanges and move the unit onto the lifter.
• Sliding rails – Release the two captive screws, slide
the unit out until it stops, release the rail locks, and
slide the unit out and onto the lifter.
2. Move the unit onto a secure ESD-safe surface.
Install/Swap DIMMs
Remove Top Panel
1. Remove and retain the four screws holding the top
panel.
2. Slide the top panel toward the rear no more than one-half
inch (1.25cm) and lift it off.
10400351-002 02/2013
Sliding Rails
Screws
©2011-13 Overland Storage, Inc.
Press
Fixed Brackets
ESD Surface
Screws
