Operating Overview

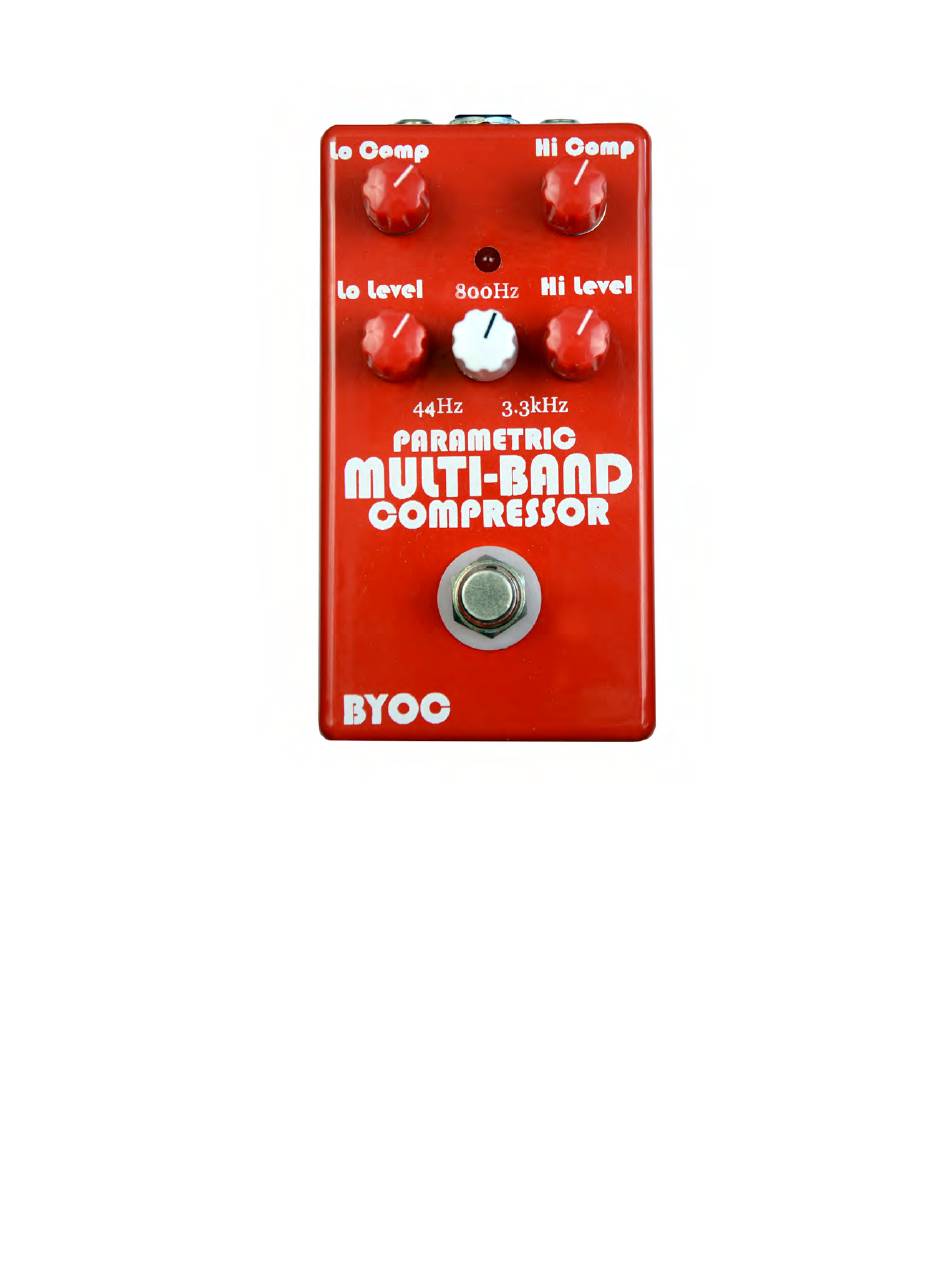

Note: The picture above is of a kit with the optional red paint/white screen print.
Hi Level: This controls the volume level of high frequency compressor output.
Lo Level: This controls the volume level of the low frequency compressor output.
Cross Over Frequency (white knob in the middle): Controls the frequency at where your
signal is split into high and low. The further clockwise you turn this knob, the larger the "low
spectrum" becomes and the smaller the "high spectrum" becomes. And vice versa. The larger
spectrum will have more volume output and more sensitivity to compression, so adjust the level
and comp knobs accordingly.
Low Comp: How much compression is applied to your lows.
Hi Comp: How much compression is applied to your highs
Power supply: 9V battery or 2.1mm negative tip
Current Draw: 12.5mA
Input Impedance: 1 Meg ohms
Output Impedance: 100k ohms
