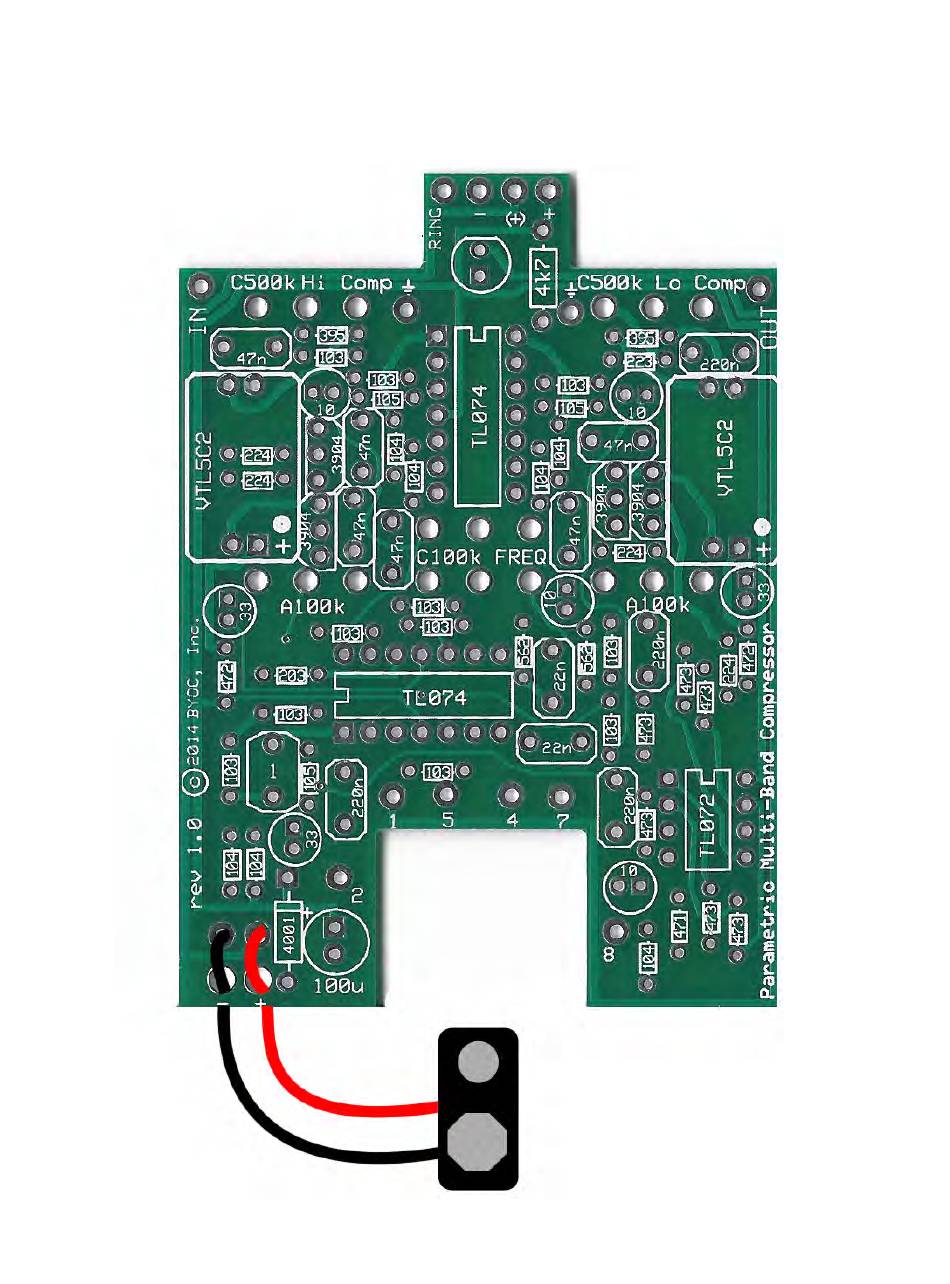

Step 9: Add the battery snap. Thread the leads into the strain relief holes first through
the bottom side of the PCB. Then insert the leads into their respective solder pad hole on
the top side of the PCB. The red lead goes in the + hole and the black lead goes in the –
hole.
