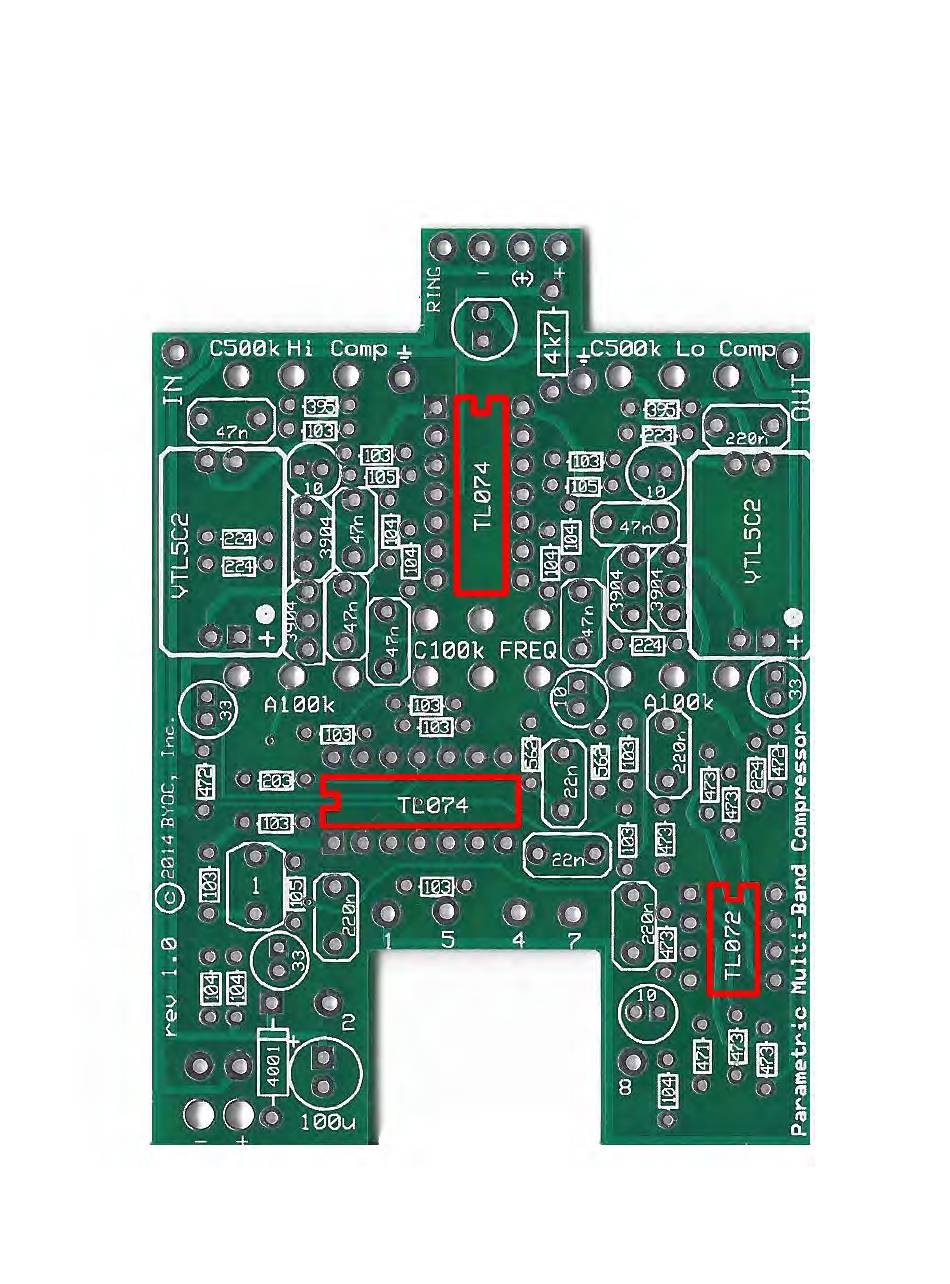

Step 3: Add the 8 pin and two 14 pin IC sockets.
ONLY SOLDER THE SOCKET!
NOT THE ACTUAL IC!
This is a socket. The sockets get soldered to the PCB. The
ICs get inserted into the sockets. The actual IC chip itself, never gets soldered. You will
insert the IC into the socket after the entire pedal has been built. See page 27 for
instructions on how to orient and install the ICs.
