BFC-07R1
7" Freescale iMX6 Panel PC

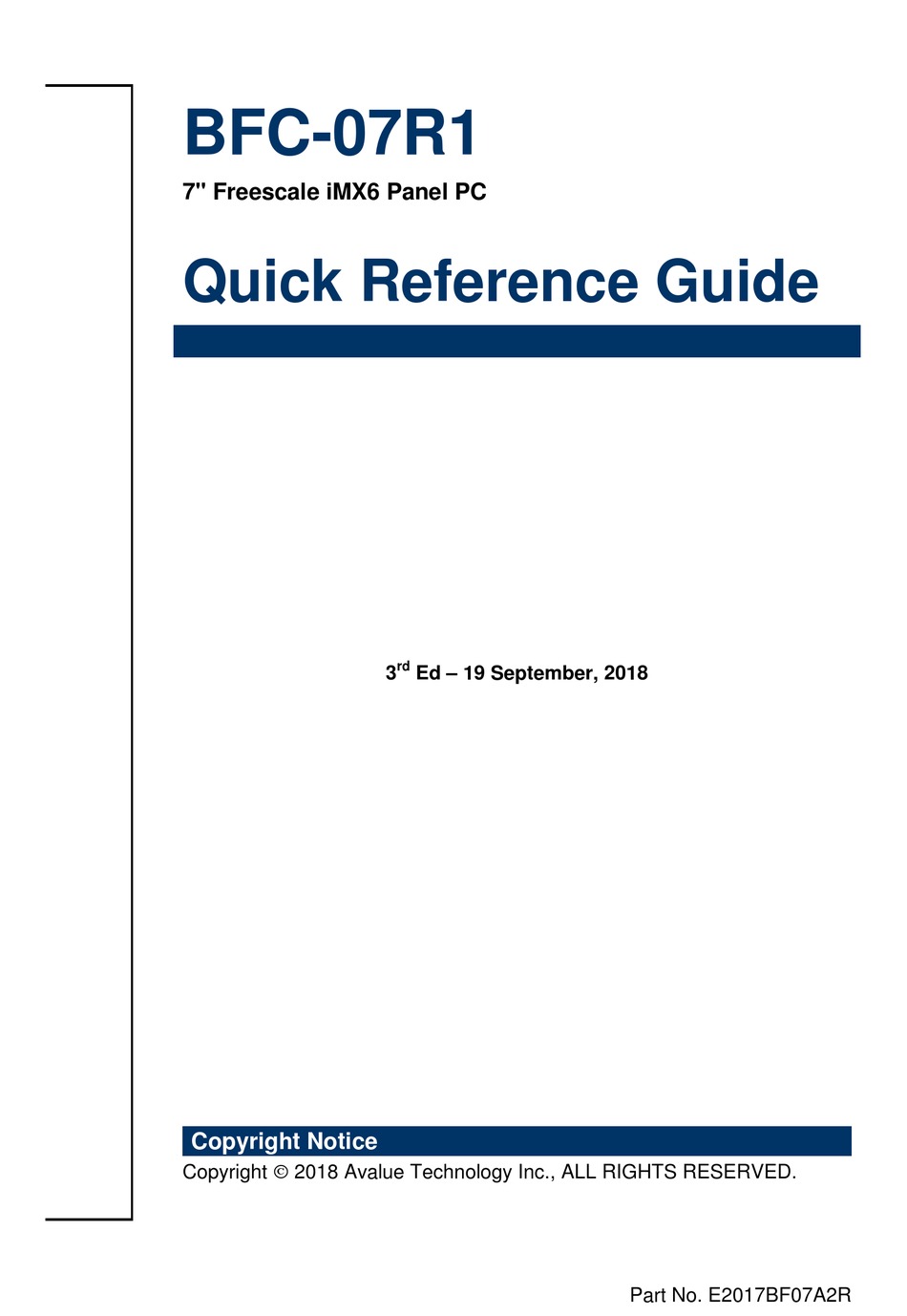

Quick Reference Guide
rd
Ed – 19 September, 2018
3
Copyright Notice
Copyright  2018 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017BF07A2R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BFC-07R1 and is the answer not in the manual?

Questions and answers

Related Manuals for Avalue Technology BFC-07R1

Summary of Contents for Avalue Technology BFC-07R1

  • Page 1 BFC-07R1 7" Freescale iMX6 Panel PC Quick Reference Guide Ed – 19 September, 2018 Copyright Notice Copyright  2018 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017BF07A2R...
  • Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 BFC-07R1 Quick Reference Guide...

  • Page 3: Table Of Contents

    2.4.14 USB connector (JUSB4) ......................22 2.4.15 LVDS connector (JLCD1) ......................23 2.4.16 LCD inverter connector (JBKLT1) ..................... 23 2.5 OTG(Mini USB) update (BFC-07R1) ................ 24 3. Build and install Android image ................. 25 3.1 Setup Build Environment ..................26 3.2 Download source code and MFG tool ..............

  • Page 4: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x BFC-07R1  1 x 60W Power Adapter (12V/5A)  1 x Power cord  4 BFC-07R1 Quick Reference Guide...

  • Page 5: System Specifications

    10/100/1000 LAN RJ45x1, Optional Powered LAN support (IEEE 802.3at) Wireless LAN Optional WIFI antenna x2 Antenna Hidden reset button x1 Switch Power Off button x1 Analogy Mic x1 Speaker Speaker Mechanical 12~26V DC input, typical 12V input Power Type With brownout detection BFC-07R1 Quick Reference Guide...
  • Page 6 Test Fh : Vibration boardband random Test 1 Test PSD : 0.026G²/Hz , 2.16 Grms 2 Test frequency : 5~500 Hz 3 Test axis : X,Y and Z axis 4 Test time : 30 minutes each axis 6 BFC-07R1 Quick Reference Guide...
  • Page 7 1 Test phase : One corner, three edges, six faces 2 Test high : 3 Package weight : 4 Test drawing Operating -20~55 degree Temperature Operating Humidity 0~90% Storage -30~70 degree Temperature Note: Specifications are subject to change without notice. BFC-07R1 Quick Reference Guide...

  • Page 8: System Overview

    BFC-07R1 1.4 System Overview 1.4.1 Bottom View 1.4.2 Right Side View 1.4.3 Left Side View Connectors Label Function Note System power indicator RJ-45 Ethernet USB2.0 2 x USB2.0 connector 8 BFC-07R1 Quick Reference Guide...
  • Page 9 Mic-in audio jack DB-9 male connector Serial port connector Note: Refer to RSC-IMX61 JCOM2. Speaker connector Speaker Power Power on button SD card SD card socket USB OTG connector USB OTG Micro SD socket Micro SD socket BFC-07R1 Quick Reference Guide...

  • Page 10: System Dimensions

    BFC-07R1 1.5 System Dimensions (Unit: mm) 10 BFC-07R1 Quick Reference Guide...

  • Page 11: Hardware Configuration

    Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- RSC-IMX61 included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw BFC-07R1 Quick Reference Guide 11...

  • Page 12: Bfc-07R1 Connector Mapping

    BFC-07R1 2.1 BFC-07R1 connector mapping 2.1.1 Serial port connector (COM) Signal PIN PIN Signal 12 BFC-07R1 Quick Reference Guide...

  • Page 13: Rsc-Imx61 Overview

    Quick Reference Guide 2.2 RSC-IMX61 Overview BFC-07R1 Quick Reference Guide 13...

  • Page 14: Rsc-Imx61 Jumper And Connector List

    4 x 1 wafer, pitch 2.00mm JTOUCH1 Touch Panel connector 4 x 1 wafer, pitch 2.00mm JSPL1 Speaker L connector 2 x 1 wafer, pitch 2.00mm JSPR1 Speaker R connector 2 x 1 wafer, pitch 2.00mm 14 BFC-07R1 Quick Reference Guide...
  • Page 15 MINI USB-MAB_5P JUSB2 2 x USB2.0 connector JUSB4 USB connector 5 x 1 wafer, pitch 2.00mm JLCD1 LVDS connector 20 x 2 wafer, pitch 1.25mm LCD inverter connector 5 x 1 wafer, pitch 2.00mm JBKLT1 BFC-07R1 Quick Reference Guide 15...

  • Page 16: Rsc-Imx61 Setting Jumpers & Connectors

    BFC-07R1 2.4 RSC-IMX61 Setting Jumpers & Connectors 2.4.1 Boot set selector (SW1) OTG load SD boot eMMC boot Power-in boot choice boot Shutdown 2.4.2 Battery connector (JBAT1) Signal +V_BAT 16 BFC-07R1 Quick Reference Guide...

  • Page 17: Can Bus Connector (Jcan1)

    Quick Reference Guide 2.4.3 Can Bus connector (JCAN1) Signal CAN_H CAN_L 2.4.4 Touch Panel connector (JTOUCH1) Signal XP_A YP_A XM_A YM_A BFC-07R1 Quick Reference Guide 17...

  • Page 18: Speaker L Connector (Jspl1)

    BFC-07R1 2.4.5 Speaker L connector (JSPL1) Signal SPKL_N SPKL_P 2.4.6 Speaker R connector (JSPR1) Signal SPKR_N SPKR_P 18 BFC-07R1 Quick Reference Guide...

  • Page 19: Line In, Mic Connector (Jmic1)

    Quick Reference Guide 2.4.7 Line In, MIC connector (JMIC1) Signal MIC_DET MIC_IN MIC_GND 2.4.8 Serial ATA connector (JSATA1) Signal BFC-07R1 Quick Reference Guide 19...

  • Page 20: Sata Power Connector (Jsatap1)

    BFC-07R1 2.4.9 SATA power connector (JSATAP1) Signal 2.4.10 Serial Port 1 connector (JCOM1) Signal COM1_TX COM1_RX 20 BFC-07R1 Quick Reference Guide...

  • Page 21: Serial Port 2 Connector (Jcom2)

    Quick Reference Guide 2.4.11 Serial Port 2 connector (JCOM2) Signal COM2_TX COM2_RX COM2_RTS COM2_CTS 2.4.12 I2C connector (JI2C1) Signal +3.3V JI2C_SCL JI2C_SDA JI2C_INT# BFC-07R1 Quick Reference Guide 21...

  • Page 22: General Purpose I/O Connector (Jgpio1)

    BFC-07R1 2.4.13 General purpose I/O connector (JGPIO1) Signal Signal GPIO2 GPIO1 GPIO4 GPIO3 GPIO6 GPIO5 GPIO8 GPIO7 GPIO10 GPIO9 +3.3V 2.4.14 USB connector (JUSB4) Signal USB_NP4 USB_PP4 22 BFC-07R1 Quick Reference Guide...

  • Page 23: Lvds Connector (Jlcd1)

    +12V +12V LVDS1_CLK_N LVDS0_CLK_N LVDS1_CLK_P LVDS0_CLK_P LVDS1_TX3_N LVDS1_TX2_N LVDS1_TX3_P LVDS1_TX2_P LVDS1_TX1_N LVDS1_TX0_N LVDS1_TX1_P LVDS1_TX0_P LVDS0_TX3_N LVDS0_TX2_N LVDS0_TX3_P LVDS0_TX2_P LVDS0_TX1_N LVDS0_TX0_N LVDS0_TX1_P LVDS0_TX0_P LVDS_DDC_CLK LVDS_DDC_DATA +3.3V +3.3V 2.4.16 LCD inverter connector (JBKLT1) Signal +12V BKLT_EN INV_PWM BFC-07R1 Quick Reference Guide 23...

  • Page 24: Otg(Mini Usb) Update (Bfc-07R1)

    BFC-07R1 2.5 OTG(Mini USB) update (BFC-07R1) • Remove the 6 screws to disassemble SD card cover and back cover. 24 BFC-07R1 Quick Reference Guide...

  • Page 25: Build And Install Android Image

    Quick Reference Guide 3. Build and install Android image BFC-07R1 Quick Reference Guide 25...

  • Page 26: Setup Build Environment

    JAVA_HOME=/usr/lib/jvm/java-7-openjdk-amd64 export JRE_HOME=${JAVA_HOME}/jre export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib export PATH=${JAVA_HOME}/bin:$PATH # source /etc/profile Please refer to hyperlink below to setup development environment Initializing a Build Environment 3.2 Download source code and MFG tool Please connect to Avalue FAE(jerry_lee@avalue.com.tw) 26 BFC-07R1 Quick Reference Guide...

  • Page 27: Compiler Android Source Code

    Recovery image file for Quad core system.img System image file recovery.img Recovery image file u-boot-imx6dl.imx Bootloader for 1G Dual Lite u-boot-imx6dl2g.imx Bootloader for 2 G Dual Lite u-boot-imx6q.imx Bootloader for Quad core Please copy all of them to path RSC-IMX61-6.0.1\Image\RSC-IMX6\android\6.0.1\Factory BFC-07R1 Quick Reference Guide 27...

  • Page 28: Install Android Image Into Emmc

    BFC-07R1 3.4 Install Android image into eMMC Connect RSC-IMX61 to computer through JUSB1 by mini USB. 28 BFC-07R1 Quick Reference Guide...
  • Page 29 Quick Reference Guide Set the jumper to OTG mode. Execute “MFG-Helper.exe”. Select the items as the blow picture and click “Run MFG-Tools”. When MFG tool show “HID-compliant device”, click “Start” to start to flash image. BFC-07R1 Quick Reference Guide 29...
  • Page 30 BFC-07R1 When it show “Done”, click “Stop” and “Exit” to finish. Turn off the power. Set the jumper to “eMMC boot” and power on to boot Android. 30 BFC-07R1 Quick Reference Guide...
