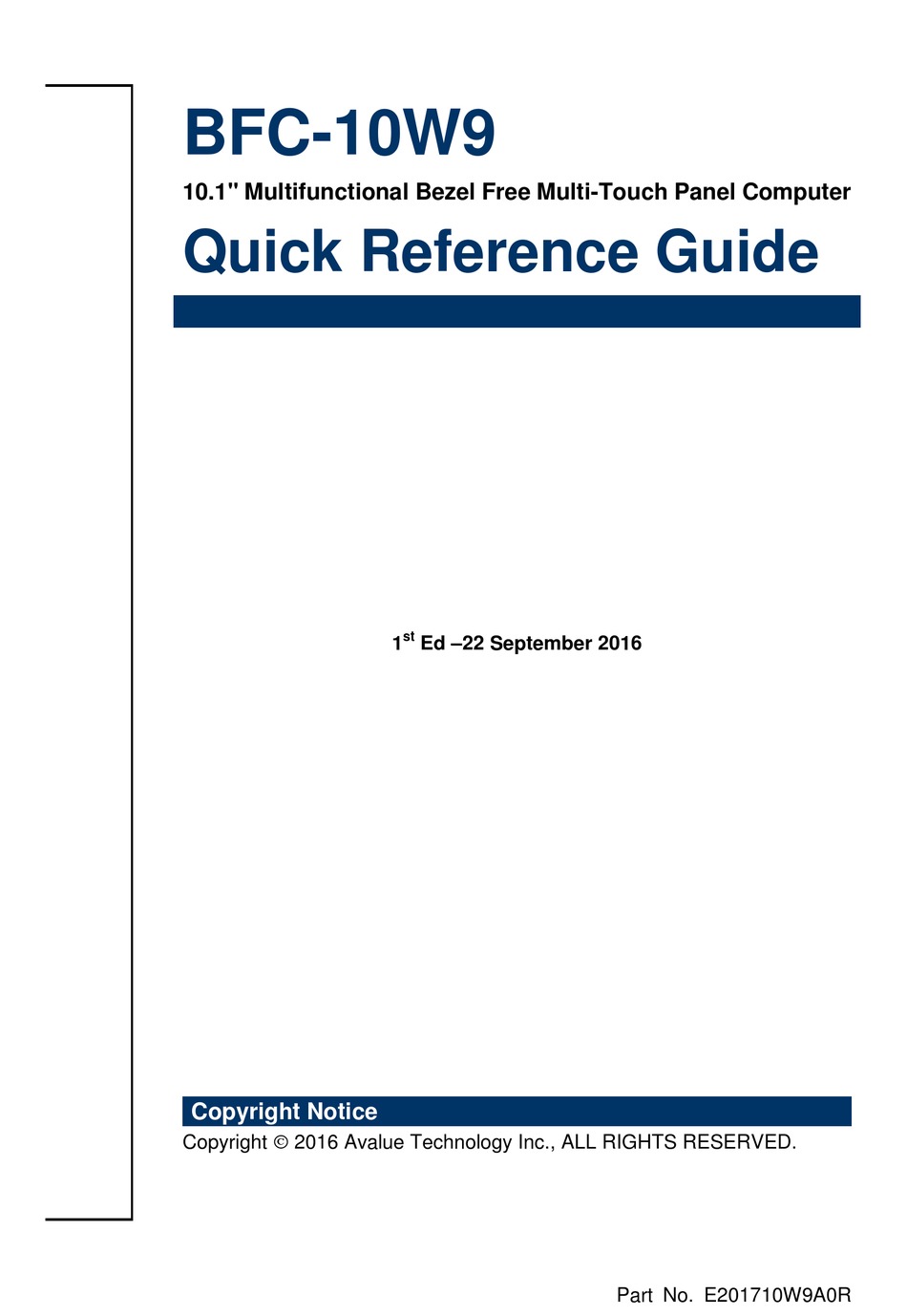

- Page 1 BFC-10W9 10.1" Multifunctional Bezel Free Multi-Touch Panel Computer Quick Reference Guide Ed –22 September 2016 Copyright Notice Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E201710W9A0R...
-
Page 2: Table Of Contents
VGA connector (VGA) ........................ 14 Installing Memory (BFC-10W9 A1/A2 Version)............ 15 Installing mini PCIe device (BFC-10W9 B1 Version) ........... 17 Installing Memory & mini PCIe device (BFC-10W9 B1 Version) ......18 Installing Storage (BFC-10W9 B1 Version) ............20 2 BFC-10W9 Quick Reference Guide... -
Page 3: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x BFC-10W9 10.1" Multifunctional Bezel Free Multi-Touch Panel Computer 1 x DVD-ROM contains the followings: ... -
Page 4: System Specifications
1 x RS232, 1x RS232/422/485 (selected by jumper) Ethernet 2 x RJ-45 (Dual Intel I211AT Gigabit Ethernet) Display 1 x HDMI & 1 x VGA Audio port 1 x Mic in 1 x Mic in, 1 x Line out 4 BFC-10W9 Quick Reference Guide... - Page 5 5%~90% relative humidity, non-condensing 251.94 x 154.5 x 45.25mm Dimensions 252.2 x 154.7 x 48.85mm 251.94 x 154.5 x 66.05 (w/ HDD) Weight 1.4kg 1.6kg Reliability EMI Test CE/FCC Class B Dust and Rain Test Front side IP65 BFC-10W9 Quick Reference Guide...
-
Page 6: System Overview
Note/ Location COM2 Serial port connector DB-9 male connector/4 MIC in Mic in connector Audio Jack/ 2 Line Out connector Audio Jack/ 3 (By optional) Line Out Antenna Antenna for WIFI/ BT (Reserve for Antenna)/ 1 6 BFC-10W9 Quick Reference Guide... -
Page 7: Front & Top View (B1 Version)
Quick Reference Guide 1.4.2 Front & Top View (B1 Version) Connectors Label Function Note/ Location USB connector USB2.0/ 1 BFC-10W9 Quick Reference Guide... -
Page 8: Rear View (A1/A2 Version)
LAN port/ 6 Power System power switch Power on/ off/ 8 USB connector USB2.0/ 4 Power Indicator Power status/ 11 DC-IN Lockable DC Jack DC in/ 9 CF card slot CF/ 1 USB connector USB2.0/ 7 8 BFC-10W9 Quick Reference Guide... -
Page 9: Rear View (B1 Version)
USB connector USB2.0/ 4 Power Indicator Power status/ 13 DC-IN Lockable DC Jack DC in/ 10 CF card slot CF/ 1 Mic in Mic in connector Audio Jack/ 8 Line Out Line Out connector Audio Jack/ 9 BFC-10W9 Quick Reference Guide... -
Page 10: Hardware Configuration
BFC-10W9 2. Hardware Configuration For advanced information, please refer to: 1- BFC-10W9 Quick Reference Guide or User’s Manual 2- ECM-BYT included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 BFC-10W9 Quick Reference Guide... -
Page 11: Bfc-10W9 Connector Mapping (A1/A2 Version)
Quick Reference Guide 2.1 BFC-10W9 connector mapping (A1/A2 Version) 2.1.1 External Serial Port 1 connector (COM1) Signal Signal DCDA# RxDA TxDA DTRA# DSRA# RTSA# CTSA# RIA# 2.1.2 External Serial Port 2 connector (COM2) Signal Signal DCDB# RxDB TxDB DTRB# DSRB#... -
Page 12: Vga Connector (Vga)
BFC-10W9 2.1.3 VGA connector (VGA) PIN Signal PIN Signal PIN Signal DATA HSYNC VSYNC 12 BFC-10W9 Quick Reference Guide... -
Page 13: Bfc-10W9 Connector Mapping (B1 Version)
Quick Reference Guide 2.2 BFC-10W9 connector mapping (B1 Version) 2.2.1 External Serial Port 1 connector (COM1) Signal Signal DCDA# RxDA TxDA DTRA# DSRA# RTSA# CTSA# RIA# 2.2.2 External Serial Port 2 connector (COM2) Signal Signal DCDB# RxDB TxDB DTRB# DSRB#... -
Page 14: Vga Connector (Vga)
BFC-10W9 2.2.3 VGA connector (VGA) PIN Signal PIN Signal PIN Signal DATA 13 HSYNC VSYNC 14 BFC-10W9 Quick Reference Guide... -
Page 15: Installing Memory (Bfc-10W9 A1/A2 Version)
Quick Reference Guide 2.3 Installing Memory (BFC-10W9 A1/A2 Version) Step 1. Remove the 8 screws to disassemble your system back cover. Step 2. Remove the 3 screws to disassemble your panel pc bezel. BFC-10W9 Quick Reference Guide 15... - Page 16 BFC-10W9 Step 3. Insert DDR3 SO-DIMM memory into the memory socket. 16 BFC-10W9 Quick Reference Guide...
-
Page 17: Installing Mini Pcie Device (Bfc-10W9 B1 Version)
Quick Reference Guide 2.4 Installing mini PCIe device (BFC-10W9 B1 Version) Step1. Remove the 8 screws to disassemble your system back cover. Please install mini PCIe device, and fasten with 2 screws Step2. Noted: if mini PCIe slot without screw holes, you can just plug in mini PCIe device without fasten screws... -
Page 18: Installing Memory & Mini Pcie Device (Bfc-10W9 B1 Version)
BFC-10W9 2.5 Installing Memory & mini PCIe device (BFC-10W9 B1 Version) Step 1. Remove the 8 screws to disassemble your system back cover. Step 2. Remove the 4 screws on COM port and VGA port 18 BFC-10W9 Quick Reference Guide... - Page 19 Quick Reference Guide Step 3. Remove 4 screws on SBC and release SBC from the box Step 4. Install Memory & mini PCIe device to correct slot. BFC-10W9 Quick Reference Guide 19...
-
Page 20: Installing Storage (Bfc-10W9 B1 Version)
BFC-10W9 2.6 Installing Storage (BFC-10W9 B1 Version) Step1. Remove the 8 screws to disassemble your system back cover. Fasten your storage (2.5” HDD or SSD) into HDD bracket with 4 screws Step2. 20 BFC-10W9 Quick Reference Guide... - Page 21 Quick Reference Guide Fasten your storage (2.5” HDD or SSD) on box with 4 screws Step3. BFC-10W9 Quick Reference Guide 21...
