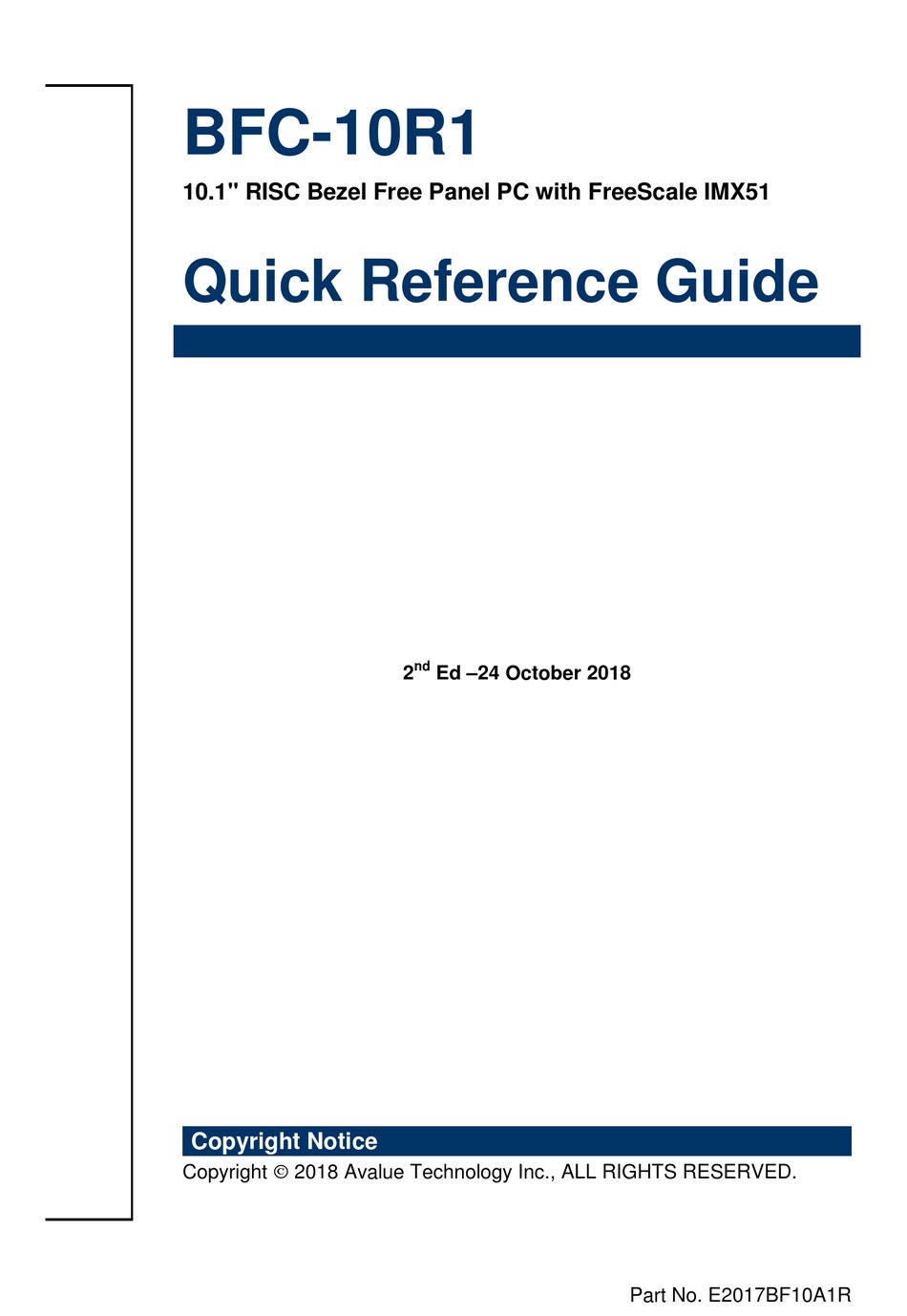

- Page 1 BFC-10R1 10.1" RISC Bezel Free Panel PC with FreeScale IMX51 Quick Reference Guide Ed –24 October 2018 Copyright Notice Copyright 2018 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017BF10A1R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 BFC-10R1 Quick Reference Guide...
-
Page 3: Table Of Contents
Jumper & connector settings ................10 2.2.1 COM1 & COM2 connector ......................10 2.2.2 Boot Mode selector (SW2) ......................11 2.2.3 DC power-in connector ......................11 Installing PCIE device (BFC-10R1) ..............12 Installing SD Card (BFC-10R1) ................13 BFC-10R1 Quick Reference Guide... -
Page 4: Getting Started
1.2 Packing List 1 x 10.1” RISC Bezel Free Panel PC System. Other major components include the following: — 1 x Power Adapter(12V/5A) 4 BFC-10R1 Quick Reference Guide... -
Page 5: System Specifications
Power Requirement +12 VDC Input Operating Temperature 0°C to 40°C (32°F to 140°F) Relative Humidity 0%~90% relative humidity, non-condensing Storage Temperature -20°C to 60°C Mounting Wall/Stand/VESA 100 mm X 100 mm Dimensions 251.9mm x 154.5mm x 42.7mm BFC-10R1 Quick Reference Guide... - Page 6 BFC-10R1 Weight 1Kgs Note: Specifications are subject to change without notice. 6 BFC-10R1 Quick Reference Guide...
-
Page 7: System Overview
Quick Reference Guide 1.4 System Overview 1.4.1 Front & Top View 1.4.2 Right Side View Connectors Label Function Note SD Card Slot SD/SDHC card socket Right side Mini USB USB client connector Right side BFC-10R1 Quick Reference Guide... -
Page 8: Left Side View
Serial port connector1~2 DB-9 male connector DC-IN +12V DC power-in connector RJ-45 Fast Ethernet connector MODE SWITCH Boot Mode selector RJ-45 Powered LAN connector For BFC-10R1-M51P Powered LAN Power S/W System power switch Reset button RESET 8 BFC-10R1 Quick Reference Guide... -
Page 9: Hardware Configuration
Jumper and Connector Setting, Driver and BIOS Installing For advanced information, please refer to: 1- RSC-IMX51 Installation Guide or User’s Manual 2- EPM-PSE and AUX-MPCIE (Optional) Installation Guide. Note: If you need more information, please visit our website: http://www.avalue.com.tw BFC-10R1 Quick Reference Guide... -
Page 10: Jumper & Connector List
Reset button RESET SD Card Slot Right side SD/SDHC card socket USB client connector Right side Mini USB USB 2.0 connector 1&2 Left side 2.2 Jumper & connector settings 2.2.1 COM1 & COM2 connector Signal Signal 10 BFC-10R1 Quick Reference Guide... -
Page 11: Boot Mode Selector (Sw2)
DIP Switch setting: 0=Off, 1=On When Position4 is switched On, the system is forced to power On as soon as power is applied. Switch to Off mode for normal operation. 2.2.3 DC power-in connector DC-IN 12V BFC-10R1 Quick Reference Guide 11... -
Page 12: Installing Pcie Device (Bfc-10R1)
BFC-10R1 2.3 Installing PCIE device (BFC-10R1) Step1. Remove the 8 screws to disassemble your system back cover. Step2. Please install mini PCIe device, and fasten with 2 screws 12 BFC-10R1 Quick Reference Guide... -
Page 13: Installing Sd Card (Bfc-10R1)
Quick Reference Guide 2.4 Installing SD Card (BFC-10R1) Step1. Put SD Card into the SD Card Slot. BFC-10R1 Quick Reference Guide 13...
