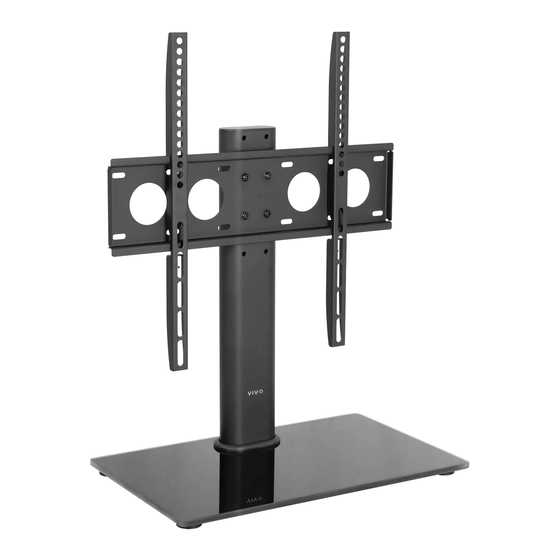

Tabletop TV Stand
Instruction Manual
Model: STAND TV00J
Email: help@vivo-us.com
Live chat: www.vivo-us.com
Call: 1-800-371-5654
-
Scan the QR code with your mobile device or follow the link to
helpful videos and specifications related to this product.
https://vivo us.com/products/stand tv00j
-
Tools Required:
phillips screwdriver
Package Contents
A (x1)
B (x2)
TV Plate
Monitor Bracket
E (x1)
F (x1)
Plastic Socket
Metal Pad
I (x3)
J (x2)
M8x22 Bolt
Wire Clip
M(x4)
N (x4)
M4x30 Bolt
M6x20 Bolt
Q (x4)
R (x4)
M8x35 Bolt
M4 Washer
U (x4)
V (x8)
M4 Spacer
M6/M8 Spacer
-
C (x1)
D (x1)
Tempered Glass
Support Column
G (x4)
H (x4)
M6x10 Bolt
Metal Washer
K (x4)
L (x4)
Rubber Foot
M4x12 Bolt
O (x4)
P (x4)
M6x35 Bolt
M8x20 Bolt
S (x4)
T (x4)
M6 Washer
M8 Washer
W (x1)
X (x1)
Allen Key
Security Wire Kit
1
Advertisement
Table of Contents
Related Manuals for Vivo STAND TV00J
Summary of Contents for Vivo STAND TV00J
- Page 1 Scan the QR code with your mobile device or follow the link to helpful videos and specifications related to this product. https://vivo us.com/products/stand tv00j Tools Required: phillips screwdriver Package Contents Tabletop TV Stand Instruction Manual A (x1) B (x2) C (x1)
- Page 2 Assembly Steps Step 2 Step 1 Optional: Stick rubber feet (K) to bottom of tempered glass (C). TV plate (A) can be installed on wall. Wall mounting hardware not included. Attach TV plate (A) to support column (D) at desired height using bolts (G) and metal washers (H).
- Page 3 Step 4 Step 5: OPTION A If your TV is located near a wall as shown in Diagram 5a, then a steel wire from security wire kit (X) can be attached for added security. Attach the two ends of the steel wire to the top two holes on the back of your TV as shown in Diagram 5b.
- Page 4 Call: 1-800-371-5654 If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product. For more VIVO products, check out our website at www.vivo-us.com. Last updated: 4/24/2018...
