- Page 1 VERMEIREN Turios INSTALLATION MANUAL...
-
Page 3: Table Of Contents
Turios 2020-02 Content Content Content ........................1 Preface........................2 This product ....................3 Scope of delivery ..................4 Assembly and adjustments ................. 5 Tools ....................... 5 Adjusting the wheelchair to the user ............... 6 3.2.1 Seat inclination (manual version) .............6 3.2.2... -
Page 4: Preface
To support you on the installation and repairs of this electric wheelchair, we provide you with this installation manual. Please read it carefully. If you still have questions after reading this manual, do not hesitate to contact Vermeiren. The information in this manual applies to the following wheelchair(s): •... -
Page 5: This Product

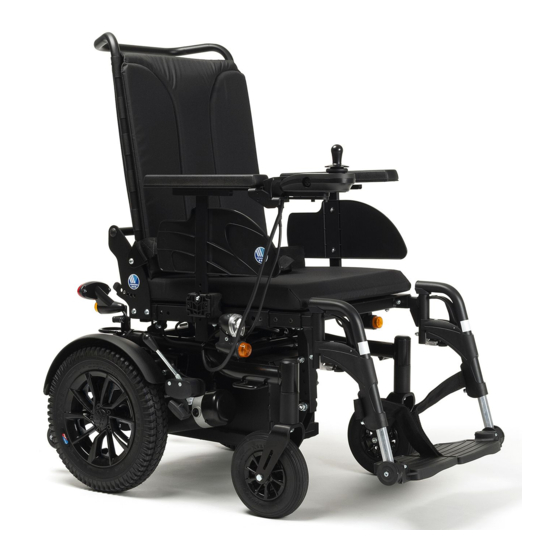

Turios 2020-02 This product This product Backrest Battery housing Operating console Front wheels Armrest Driving motors Seat Rear wheels / Driving wheels Footrest Front lights (optional) Footplate Parking brake Safety belt Identification plate Installation manual - 3 -... -
Page 6: Scope Of Delivery
Turios 2020-02 Scope of delivery Scope of delivery The following items are part of the delivery: • Framework with operator control, rear and front wheels, seat and backrest • Armrests • Footrests • Batteries • Battery charger • Tools •... -
Page 7: Assembly And Adjustments
Read the user manual of this wheelchair. • Be aware of the technical details and limits of intended use; see the user manual. • For more information, contact Vermeiren. Tools To (dis)assemble and adjust the wheelchair, the following tools are needed: •... -
Page 8: Adjusting The Wheelchair To The User
Turios 2020-02 Assembly and adjustments Adjusting the wheelchair to the user 3.2.1 Seat inclination (manual version) CAUTION Risk of injuries or damage • The frame with seat are heavy to handle. Ask help of an assistant. The seat angle can be manually adjusted according to the following steps: 1. -
Page 9: Seat Depth
Turios 2020-02 Assembly and adjustments 3.2.3 Seat depth Manual version To adjust the seat depth, you can adjust the position of the backrest (60 mm, steps of 20 mm) and the position of the front frame with footrest supports (60 mm, steps of 20 mm). It is recommended to start by adjusting the backrest. -
Page 10: Width Between Armrests
Turios 2020-02 Assembly and adjustments 3.2.4 Width between armrests 1. Remove the armrest. 2. Loosen the screw (11) under the seat frame until the armrest support can be moved. 3. Slide the armrest support inwards/outwards in the support tube until the desired position (range 60 mm: step less). -
Page 11: Adjusting The Footplates
Do not place fingers between the batteries and the battery housing. Replace both batteries at the same time and with the same type as the ones used in the wheelchair. If this is not possible, contact the nearest Vermeiren facility. 1. Switch OFF the wheelchair. -
Page 12: Battery Connections
Turios 2020-02 Assembly and adjustments 6. Disconnect the batteries, see §3.3.1. Remove them from the drawer. 7. Replace with the new batteries and connect them according to §3.3.1. 8. Carefully slide the inner drawer with batteries back into the battery box. Make sure that no wires are clamped between the batteries, drawer or battery box. -
Page 13: Changing Wheels Or Tyres
Turios 2020-02 Assembly and adjustments Changing wheels or tyres CAUTION Risk of injuries and damage • Make sure that all air is released from the tyre, before removing it. • Use a wooden block and jack to lift the wheelchair. Always place the jack under the lower frame, never under any other parts. -
Page 14: Steering Wheels
Turios 2020-02 Assembly and adjustments 3.4.2 Steering wheels DISMANTLING 1. Loosen the screw on the steering wheel axle (25) and remove it from the steering wheel fork. 2. Let the air out of the steering wheel by lightly pressing the pressure pin on the valve. - Page 16 No part of this manual may be reproduced in any form what so ever (print, photocopy, microfilm or any other process) without written permission of the publisher, or processed, duplicated or distributed by using electronic systems. © Vermeiren Group 2020...
