V RM IR N
Forest 3
I N S T R U C T I O N M
N U
L

Advertisement

Table of Contents
loading

Related Manuals for Vermeiren Forest 3

Summary of Contents for Vermeiren Forest 3

  • Page 1 V RM IR N Forest 3 I N S T R U C T I O N M...
  • Page 2 No part of this manual may be reproduced in any form what so ever (print, photocopy, microfilm or any other process) without written permission of the publisher, or processed, duplicated or distributed by using electronic systems. © N.V. Vermeiren N.V. 2014...

  • Page 3: Table Of Contents

    Forest 3 2014-12 Contents 1  Product description ......................3    Intended Use ....................... 3     Technical specifications ....................4     Components ........................ 6     Accessories ......................... 6     Explanation of symbols ....................7     Safety instructions ...................... 7  ...
  • Page 4 Following of the user instructions and the maintenance instructions are an essential part of the warranty. This manual reflects the latest product developments. Vermeiren has the right to introduce changes without the obligation to adapt or replace previously delivered models.

  • Page 5: Product Description

    Product description Intended Use The electric wheelchair Forest 3 is equipped with two motors, of 220W or 350W. The electric wheelchair Forest 3 is intended to comfortably transfer persons with walking difficulties or no walking abilities. This electric wheelchair is designed to transfer 1 person.

  • Page 6: Technical Specifications

    For Germany: You may not drive at above 6 km/h on public highways. By the 6 km/h limited versions of Forest 3, you do not require a driving licence and neither is vehicle insurance necessary. However, we recommend that you take out voluntary third-party insurance.
  • Page 7 Forest 3 2014-12 Brand Vermeiren Address Vermeirenplein 1/15, B-2920 Kalmthout Type Electric wheelchair, Class B Model Forest 3 Maximum occupant mass 130 kg Description Dimensions Minimum Dimensions Maximum Ground clearance 74 mm Seat plane angle 1,5° 9,5° Effective seat depth...

  • Page 8: Components

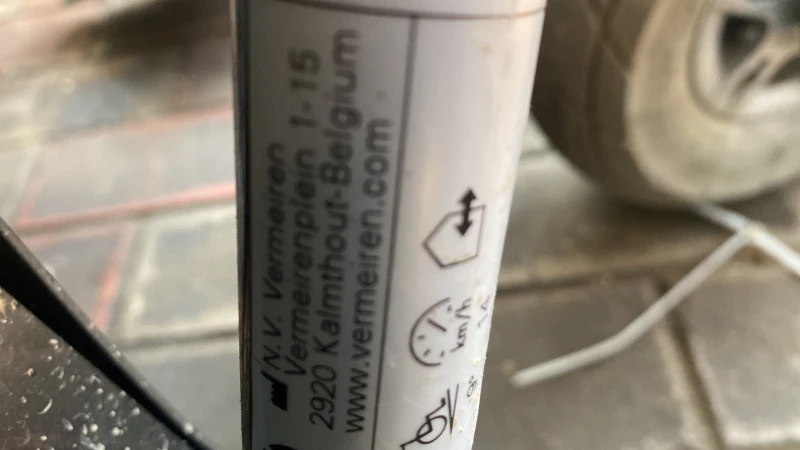

    12 = Identification plate 13 = Driving wheels (rear wheels) 14 = Forks 15 = Basic frame Accessories The following accessories are available for the electric wheelchair Forest 3:  Table (B15+B13)  Manual adjustable legrest (BZ7 / BZ8) ...

  • Page 9: Explanation Of Symbols

    Forest 3 2014-12 Explanation of symbols Maximum mass Limited indoor and outdoor use Indoor use (only for battery charger) Separate recovery and recycling of electric and electronic devices (only for battery charger) Protection class II Maximum safe slope CE conformity...

  • Page 10: Use

    This chapter describes the everyday use. These instructions are for the user and the specialist dealer. To find a service facility or specialist dealer near you, contact the nearest Vermeiren facility. A list of Vermeiren facilities can be found on the last page.

  • Page 11: Carrying The Electric Wheelchair

    Forest 3 2014-12 Interfering electromagnetic fields may have a negative effect on the wheelchair’s electronic systems. These can include:  Disengagement of the engine brake  Uncontrollable behavior by the wheelchair  Unintentional steering movements In the presence of very strong or enduring interfering fields, the electronic systems could even break down entirely or suffer permanent damage.

  • Page 12: Adjusting Armrest

    Forest 3 2014-12 Adjusting armrest Risk of injury and/or damage - Make sure that the lever  is WARNING: properly tightened before using the wheelchair. WARNING: Risk of tipping over - Check that the armrests are placed in the same position on each side.

  • Page 13: Mounting Or Removing Of The Footrests

    Forest 3 2014-12 2.3.2 Height and angle adjustment armpad The armpads can be adjusted in height over a range of 30 mm: stepless (for fine tuning) and angle over a range of 360 °: steps 7,5°. 1. Loosen the star knob .

  • Page 14: Suspension

    Forest 3 2014-12 Suspension The strength of the springs can be adjusted to enhance your comfort. These springs are located on the back of the electrical wheelchair, behind the battery cover. If you turn the adjuster  to the left, the range of the springs lengthens and the suspension becomes softer.

  • Page 15: Operating The Brakes

    The instructions for use from the operator controls you can find in the seperate user manals of the operator controls that is included with your wheelchair. Changing the software is only allowed by Vermeiren. For changes in the software contact Vermeiren.
  • Page 16 (Vermeiren personnel). Make sure that the joystick is in the neutral (central) position when pressing the on/off button, otherwise the electronics will be blocked.
  • Page 17 Forest 3 2014-12  Driving in corners and bends WARNING: Risk of tipping over - Reduce your speed before you enter a curve or corner. WARNING: Risk of clamping - Always maintain an adequate distance from corners and obstacles. Move the joystick into the position you wish to turn. The front wheels will turn accordingly and steer the electric wheelchair into a new direction.

  • Page 18: Driving The Electric Wheelchair On Stairs

    Forest 3 2014-12 2.9.7 Going downhill WARNING: Control your electric wheelchair - Accustom yourself with the driving behavior of your wheelchair. WARNING: Control your wheelchair - Never put your electric wheelchair in neutral on slopes. WARNING: Control your speed - Move on slopes as slow as possible.

  • Page 19: Pushing The Wheelchair

    Forest 3 2014-12 2.12 Pushing the wheelchair WARNING: Control your electric wheelchair - Never put your electric wheelchair in neutral while you are driving. WARNING: Control your electric wheelchair - Never put your electric wheelchair in neutral on slopes. It may accidentally roll away.

  • Page 20: Transport In An Airplane

    Forest 3 2014-12 It is not possible to transport the wheelchair in the car. Use a van to transport the wheelchair. The best way to transport your electric wheelchair in the van is to drive the electric wheelchair in the van by using ramps.

  • Page 21: Batteries

    Forest 3 2014-12 2.15 Batteries The standard for your electric wheelchair is two closed, 12 V/50 Ah or 80Ah AGM batteries. The batteries used with your electric wheelchair are drive batteries which only attain full capacity after a few charging and use cycles.

  • Page 22: Blow Fuse

    Forest 3 2014-12 2.18 Blow fuse To protect the motor against overload, there is a heat monitoring system located in the power module that will automatically cut off the motor to prevent overheating and thus rapid wear and tear or breakdowns. This can occur if you go up or down slopes that exceed the maximum gradient indicated.
  • Page 23 Forest 3 2014-12 Steps to secure the wheelchair in a motor vehicle: 1. Check that the vehicle is equipped with a suitable wheelchair tie down and occupant- restraint system, conform ISO 10542. 2. Check that the components of the wheelchair tie down and occupant restraint system are not frayed, contaminated, damaged or broken.

  • Page 24: Installation And Adjustment

    Installation and adjustment The instructions in this chapter are for the specialist dealer only. The Forest 3 has been designed as a rear wheel drive electric wheelchair for limited indoor and outdoor use. The advantage of this wheelchair is a better maneuverability.

  • Page 25: Manner Of Delivery

    3.3.1 Adjusting the seat height The Forest 3 is for sale in 2 different seat heights: 430 mm and 480 mm without seat cushion. The seat height must be decided with the purchase. 3.3.2 Adjusting the seat depth The Vermeiren Forest 3 is adjustable in 6 different seat depths over a range of 100 mm (steps of 20 mm).
  • Page 26 Forest 3 2014-12 3.3.3 Backrest and seat inclination The backrest is not mechanical adjustable. To adjust the seat inclination you can use the instructions below: WARNING: Power down the wheelchair before adjusting the seat inclination. CAUTION: Risk of injury - Check that the seat frame cannot fall down during adjustment.
  • Page 27 Forest 3 2014-12 * Adjusting width armrest Adjust the width of the armrests as follow (range 25 mm: stepless / on each side): Loosen the screws  on the back of the wheelchair just below the seat frame. Adjust the armrest to a comfortable width.

  • Page 28: Battery Connections

    Forest 3 2014-12 * Adjusting angle footplates: Adjust the angle of the footrests as follow: 1. Loosen the starknob Ⓐ. 2. Adjust the angle of the footplate to a comfortable position (range: 110°, steps 11°).  3. Tighten the starknob Ⓐ...

  • Page 29: Tyre Changing

    Forest 3 2014-12 Tyre changing CAUTION: There must be no air in the tube before the tyre can be removed. CAUTION: Risk of damage - If handled improperly, the rim might become damaged. Only an expert can guarantee correct assembly. Work not done by your specialist dealer, would void any warranty claims.

  • Page 30: Changing The Battery

    Forest 3 2014-12 DISMANTLING Unscrew and remove the axle nut on the drive wheel and the 4 screws that attach the wheel to the flange. Let the air out of the wheel by lightly pressing the pressure pin on the valve.
  • Page 31 Dealer´s stamp: Dealer´s stamp: Date: Date: Dealer´s stamp: Dealer´s stamp: Date: Date: Dealer´s stamp: Dealer´s stamp: Date: Date:  For service checklists an additional technical information, please see our specialist dealers nearest to you. More information on our website at: www.vermeiren.com.
  • Page 32 Fax: +41(0)31 818 40 98 website: www.reatime.it website: www.vermeiren.ch e-mail: info@reatime.it e-mail: info@vermeiren.ch Poland Spain / Portugal Vermeiren Polska Sp. z o.o Vermeiren Iberica, S.L. Carratera de Cartellà, Km 0,5 Łączna PL-55-100 Trzebnica Sant Gregori Parc Industrial Edifici A Tel: +48(0)71 387 42 00...
