Altronix ReServ Series Installation Manual page 7

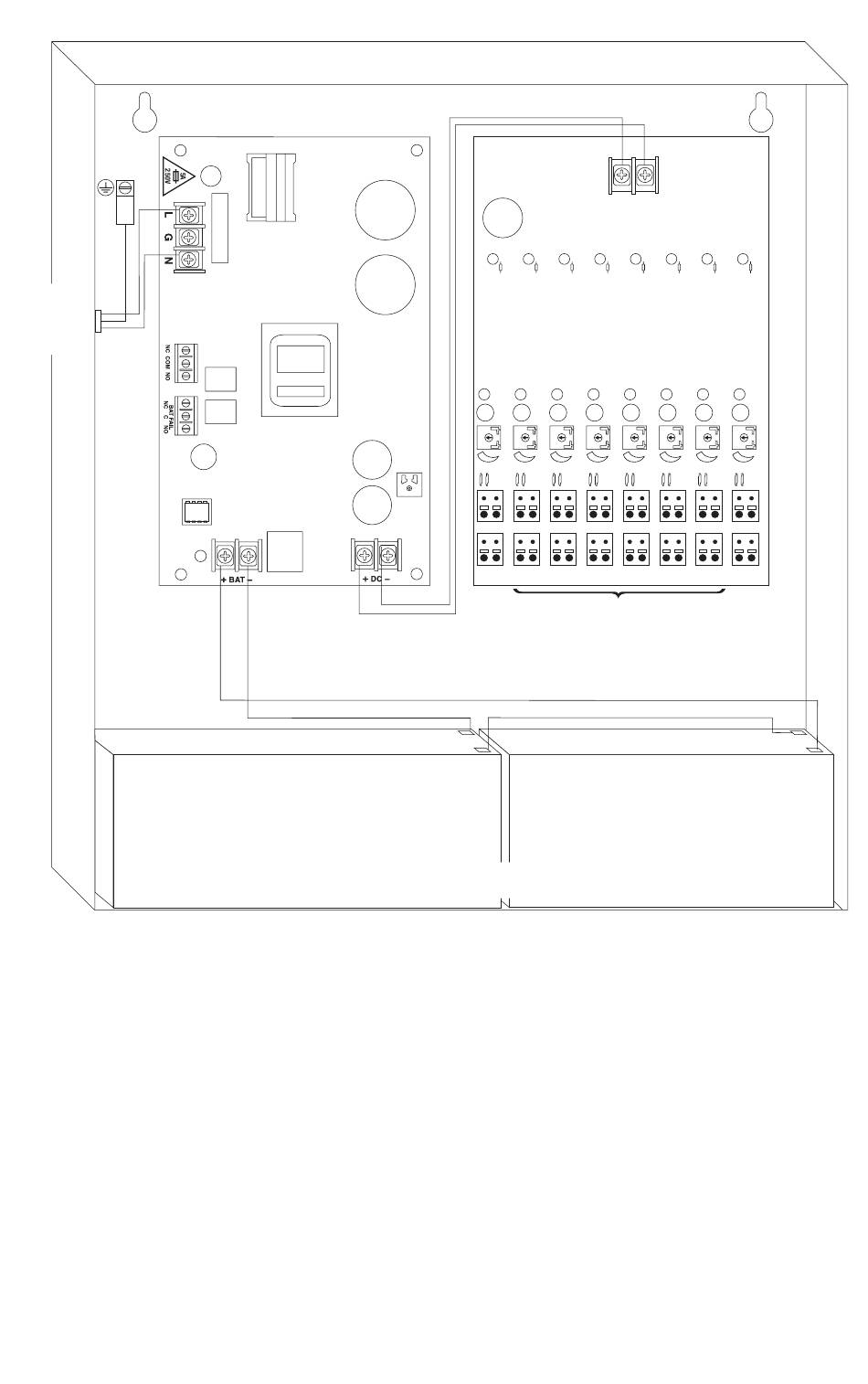

Fig. 3 - ReServ3V
Ground
Lug
Unswitched
230VAC
50Hz, 2A
power mains
ReServV
CAUTION: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteires according to the instructions.
12VDC Rechargeable Battery
(order separately)
Note: Two (2) 12VDC rechargeable batteries connected in series required.
1,2 V adjust 3,4 V adjust 5,6 V adjust 7,8 V adjust
P P P
N N N
1 OUT 2 3 OUT 4 5 OUT 6 7 OUT 8
12VDC
Outputs
Supervised
12VDC Rechargeable Battery
Input
--- 24VDC +
9,10 V adjust 11,12 V adjust 13,14 V adjust 15,16 V adjust
P P P P P
N N N N N
9 OUT 10 11 OUT 12 13 OUT 14 15 OUT 16
(order separately)
- 7 -
