INSTALLATION AND SERVICE MANUAL
ICE BEVERAGE DISPENSER
85-14408-06-2

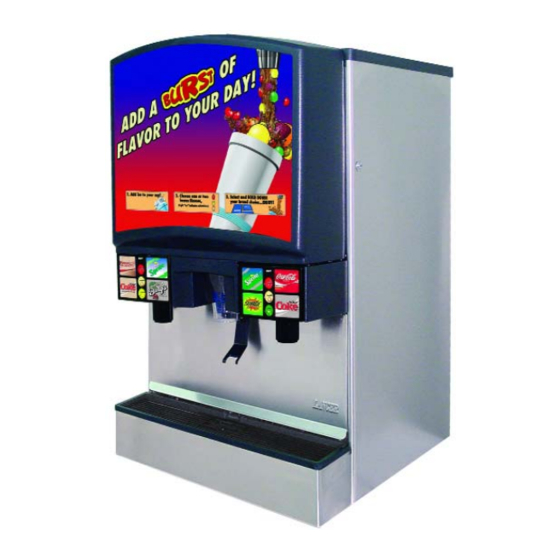

ICE BEVERAGE DISPENSER, ABOVE COUNTER
MULTI BRAND, 22 INCH WIDE, 8 BRANDS / 6 FLAVORS,
115V/60Hz
85-14408N-06-2
ICE BEVERAGE DISPENSER, ABOVE COUNTER
MULTI BRAND, 22 INCH WIDE, 8 BRANDS / 6 FLAVORS,
115V/60Hz
This manual supersedes and replaces 28-0580, dated 01/18/06.
• NORTH AMERICA – 210-310-7245 • INTERNATIONAL SALES – 210-310-7242 • CUSTOMER SERVICE – 210-310-7242 •
• LATIN AMERICA – 210-310-7245 • EUROPE – 32-2-755-2399 • PACIFIC – 61-8-8268-1978 •
"Lancer" is the registered trademark of Lancer • Copyright — 2006 by Lancer, all rights reserved
FOR
FLAVOR SELECT 22
LANCER SERIES 14400
6655 LANCER BLVD. • SAN ANTONIO, TEXAS 78219 USA • (210) 310-7000
FAX SALES
FAX Engineering: • 210-310-7096
PELLET ICE
DATE:
09/05/06
P.N.
28–0580/01
