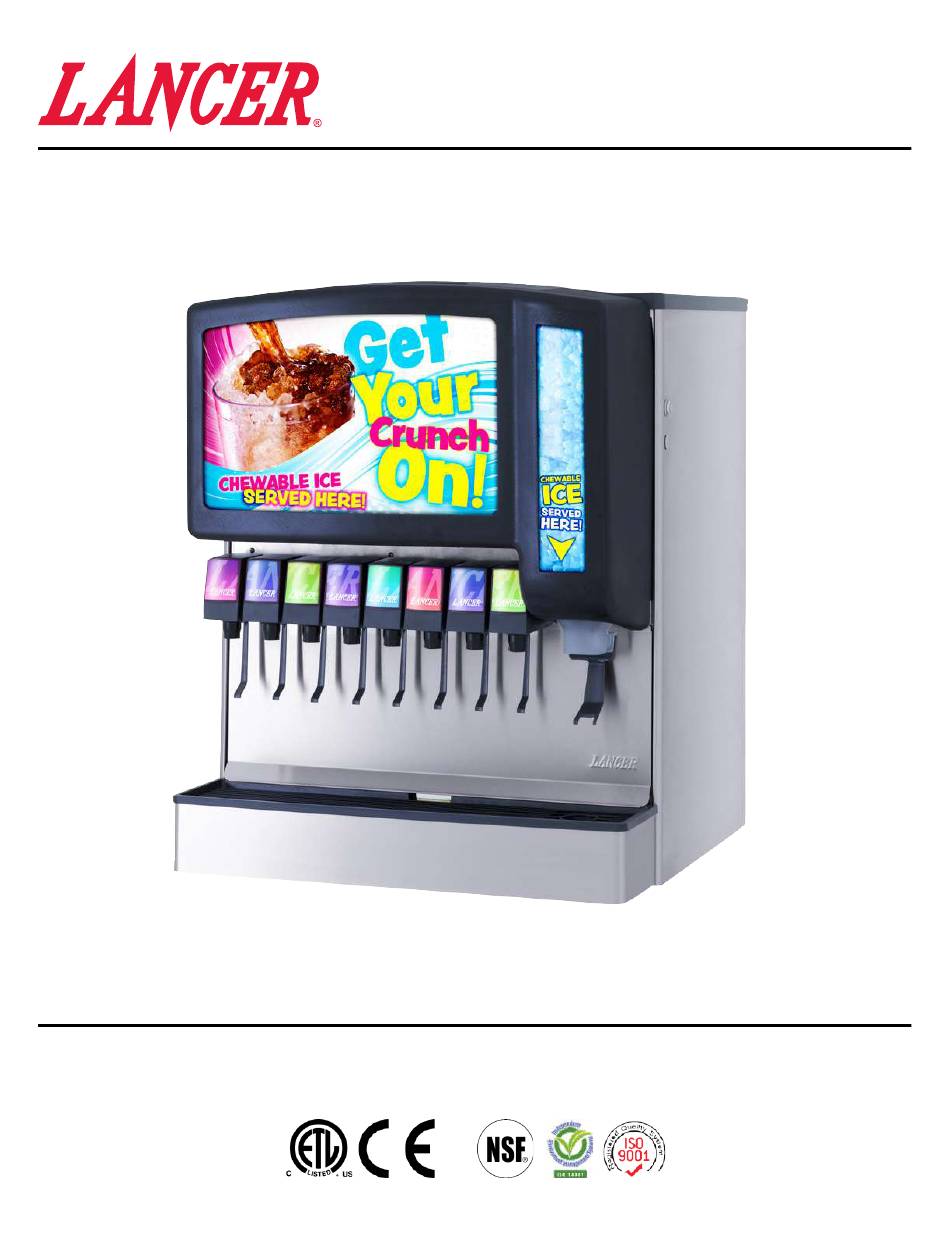

- Page 1 Sensation Operation Manual Lancer Corporation Technical Support/Warranty 6655 Lancer Blvd. 800-729-1550 San Antonio, Texas 78219 custserv@lancercorp.com 4800 800-729-1500 lancercorp.com PN: 28-0877/03 “Lancer” is the registered trademark of Lancer © 2016 by Lancer, all rights reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS ABOUT THIS MANUAL BEFORE GETTING STARTED This booklet is an integral and essential part of the product. Each unit is tested under operating conditions and is thoroughly Please carefully read the guidelines and warnings contained inspected before shipment. At the time of shipment, the herein as they are intended to provide the user with essential carrier accepts responsibility for the unit. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS ! Intended Use F Power • The dispenser is for indoor use only • Follow all local electrical codes when making connections. • This appliance is intended to be used in commercial applications such as restaurants or similar. •... -
Page 4: Automatic Agitation
! Automatic Agitation • Units are equipped with an automatic agitation system and will activate unexpectedly. • CAUTION: Do not place hands or foreign objects in the ice bin tank. Unplug the dispenser during servicing, cleaning, and sanitizing. • CAUTION: To avoid personal injury, do not attempt to lift the dispenser without assistance. -
Page 5: General System Overview
BIB SYSTEM: Is countertop level? Oetiker Clamp Fittings BIB Rack Can the countertop support the Water Booster (Lancer PN: weight of the dispenser? (Include BIB Syrup Boxes 82-3401 or MC-163172 the weight of an ice machine plus weight of ice, if necessary) -
Page 6: Installation
INSTALLATION Read This Manual This manual was developed by Lancer Corporation as a reference guide for the owner/operator and installer of this dispenser. Read this manual before installation and operation of this dispenser. See pages 16-21 for troubleshooting or service assistance. If the service cannot be corrected please call your Service Agent or Lancer Customer Service. - Page 7 0° tilt. The maximum tilt is 5°. NOTE To assure that beverage service is accessible to all customers, Lancer recommends that counter height and equipment selection be planned carefully. The 2010 ADA Standards for Accessible Design states that the maximum reach height from the floor should be no more than 48”...
-
Page 8: Installing An Icemaker (If Necessary)
Merchandiser. An adapter plate is required when installing an icemaker. Ensure manual fill is accessible. Contact your Sales Representative or Lancer Customer Clean and maintain icemaker per manufacturer’s Service for more information. instructions. Attach Bin Stat Bracket As Shown... -
Page 9: Dispenser Installation
Dispenser Installation ! WARNING Install unit to counter. Remove the splash plate and top cover. DO NOT PLUG UNIT INTO GROUNDED ELECTRICAL Remove the merchandiser by removing the two (2) screws OUTLET AT THIS TIME. Make sure that all water lines located on the faucet plate (from left to right) above the third are tight and unit is dry before making any electrical (3rd) and sixth (6th) valve. -
Page 10: Installing Remote Syrup Pumps - Bag In Box
Installing Remote Syrup Pumps - Bag In Box Install BIB rack and remote pumps according to Install BIB (bag in box) connectors onto the syrup pump manufacturers’ instructions. inlet tubing. ! ATTENTION Once pumps and BIB rack are installed, measure and cut tubing to length between the pump CO inlets, then connect Use proper connector for syrup manufacturer... -
Page 11: Installing Co Supply
Installing CO Supply Connect high pressure CO regulator assembly to CO Connect tubing routed from the tee at syrup pumps to the cylinder or bulk system. 1/4” nut, stem on the high pressure CO regulator attached to source and connect tubing. ! ATTENTION A. -
Page 12: Dispenser Setup
Dispenser Setup Turn on water source. Open the pressure relief valve located on the remote carbonator, by flipping up on the valve cap lever. Hold open until water flows from the relief valve then close (flip down) the relief valve. Verify all Bag-In-Box contains syrup and check all connections for leaks. - Page 13 Remove valve cover from first valve. Close syrup shut-off at mounting block for first valve, (see page 5 for reference). Using a Lancer ratio cup verify water flow rate (5 oz. in 4 sec.). Use a screwdriver to adjust if needed. A. Syrup Seperator B.
-
Page 14: Cleaning And Sanitizing
General Information • Lancer equipment (new or reconditioned) is shipped from the factory cleaned and sanitized in accordance with NSF guidelines. The operator of the equipment must provide continuous maintenance as required by this manual and/or state and local health department guidelines to ensure proper operation and sanitation requirements are maintained. -
Page 15: Ice Bin Cleaning - Start-Up And Monthly
Ice Bin Cleaning - Start-Up and Monthly NOTE Repeat Step 6 for all exterior surfaces of the dispenser. Using hot water, thoroughly rinse away the cleaning Refer to the Automatic Agitation Warning on page 4. solution. 10. Wearing sanitary gloves, soak and clean cloth towel in Disconnect power to the dispenser Sanitizing Solution and wash all surfaces of removable Remove Top Cover. -
Page 16: Cleaning And Sanitizing Nozzle
Cleaning and Sanitizing Nozzles Disconnect power, so as to not activate valve while Rinse nozzle and diffuser with warm water. cleaning. Wash nozzle and diffuser with cleaning solution then Remove nozzle by twisting counter clockwise and pulling immerse in sanitizing solution and let sit for fifteen (15) down. -
Page 17: Troubleshooting
TROUBLESHOOTING TROUBLE CAUSE REMEDY No product when switch is Malfunctioning switch assembly. Replace switch assembly. activated. (switch panel not lit) No power to dispenser. Check internal breaker and incoming power. Malfunctioning power supply. Check voltage to power supply. Check Malfunctioning PCB board. fuses. - Page 18 TROUBLE CAUSE REMEDY Insufficient soda flow Insufficient CO supply pressure Verify incoming CO2 pressure is between (carbonated drinks) 70-75 PSI (0.482 - 0.517 MPA) Shutoff on mounting block is not fully open Open shutoff fully Foreign debris in soda flow control Remove soda flow control from valve and Defective LFCV module clean out any foreign material to ensure...
- Page 19 TROUBLE CAUSE REMEDY Water only dispensed, no Syrup BIB empty Replace syrup BIB as required syrup. Or syrup only dispensed, Water or syrup shutoff on mounting block Open shutoff completely no water not fully open Remove valve from mounting block & Improper or inadequate water or syrup open shutoffs slightly.
- Page 20 TROUBLE CAUSE REMEDY Circuit breaker tripping Valve wire harness shorted to itself or Detect short by disconnecting valve faucet plate harnesses from switch panel (4 25-pin harnesses and 4 9-pin harnesses). Controller PCB is bad Restore power. If breaker does not trip, Secondary wire harness has a short find and replace shorted harness.
-
Page 21: Led Warnings
LED Warnings NOTE Light Emitting Diodes (LEDs) are provided on the PC Board to aid in troubleshooting electrical difficulties. Referring to the wiring diagram included in this manual (also affixed to the electrical box cover), the following information can be obtained from the LEDs. DESCRIPTION This light is on when the ice dispense switch is activated. If the chute is depressed and the light does not turn on, check to see if the wire harness is connected or if the dispense switch is defective. This light is used on units with lid interlock switches. -
Page 22: Automatic Agitation And Low Ice Alarm Control
SW1 SWITCH 2: "LOW ICE" ALARM ENABLED 7 SECONDS 5 SECONDS LANCER PN: 06-3289 Dispenser Disposal To prevent possible harm to the environment from improper disposal, recycle the unit by locating an authorized recycler or contact the retailer where the product was purchased. - Page 23 INTENTIONALLY LEFT BLANK...
-
Page 24: Illustrations And Part Listings
ILLUSTRATIONS AND PART LISTINGS Main Unit Assembly... - Page 25 Auger, Plastic Overmold, Pellet Ice 05-2845 Insert, Bin, Thermoform, P-Ice 64-5030 Power Supply 82-4415 Solenoid Assy, IBD, No Link 82-4450 Ice Chute Assy, Sensation 82-4451 Auger Motor Assy 30-10141 Splash Plate, 30” 82-4374 Drip Tray Assy, IBD 30 23-1551 Cup Rest, Pellet Ice...
-
Page 26: Wiring Diagram - 115 Volt
Wiring Diagram - 115 Volt... -
Page 27: Plumbing Diagram
Plumbing Diagram RECOMMENDED PLUMBING SYRUP LINES NOT SHOWN 3-1-1-3 CONFIGURATION FOR ASSISTANCE CALL 1-800-729-1500 PART NO: 06-2226 Counter Cutout... - Page 28 Lancer Corp. 800-729-1500 Technical Support/Warranty: 800-729-1550 custserv@lancercorp.com lancercorp.com...
