HermanMiller

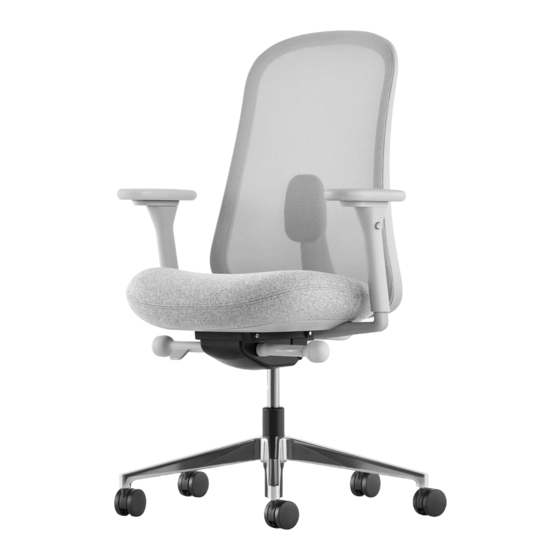

Lino

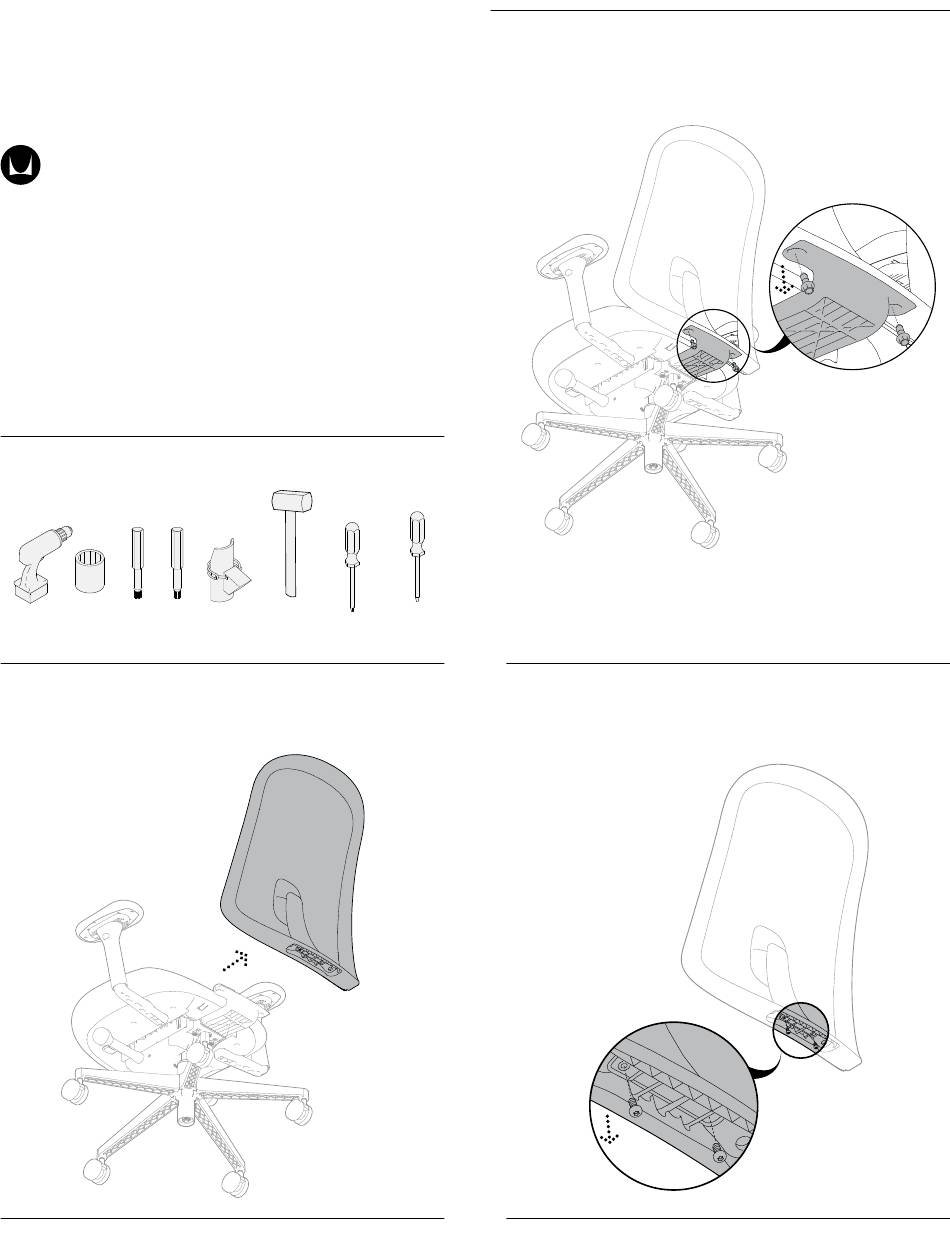

Chair Disassembly Instructions
TM
How to dissemble your chair.
Tools Required
Power
Hex
T-45
T-25
Driver
Socket
Torx Bit
Torx Bit
Bit
Step 2
2.1 Takeout the back frame assembly from the chair.
HermanMiller for Lino
Chair
TM
Lift-off Tool
T-25
#2 Mallet
Screw Driver
Step 1
1.1 Loosen the hex flange bolt to remove the back frame assembly using an 8mm
hex socket bit.
Flat Head
Screw Driver
Step 3
3.1 Remove the sacral screws from the back frame assembly using a
T-25 screw driver.
Note: For No Lumbar Cap, follow step 5.
1
1BJN55 rev A
Dissembly Instructions
Advertisement
Related Manuals for HermanMiller Lino
Summary of Contents for HermanMiller Lino
- Page 1 2.1 Takeout the back frame assembly from the chair. 3.1 Remove the sacral screws from the back frame assembly using a T-25 screw driver. Note: For No Lumbar Cap, follow step 5. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 2 5.1 Insert a screw driver through the screw hole and push the no-lumbar cap out from the bottom of the back. Step 6 Step 7 6.1 Unscrew the 3 bolts using T-45 torx bit. 7.1 Remove the J-bar from tilt assembly. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 3 10.1 If it is fixed seat plug, follow steps from 11 to13. 11.1 Unsnap the fixed seat plug with screw driver in slot. 10.2 If it is adjustable seat handle, follow steps from 14 to 18. Fixed Seat Plug Adjustable Seat Handle HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 4 14.1 Release the adjustable seat handle from the seat assembly. 15.1 Depress the retainer stop using a flat head screw driver and slide the seat assembly away from the tilt assembly. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 5 17.1 Flip the seat pan and unscrew the T-25 torx screws. Step 18 Step 19 18.1 Remove the adjustable seat handle and spring. 19.1 Turn lever counterclock wise to activate the cylinder. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 6 20.1 Place the lift-off tool on the top edge of the cylinder. 21.1 Hit the lift-off tool with mallet. Step 22 Step 23 22.1 Remove the tilt control from cylinder. 23.1 Place nylon cap over the end of cylinder. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 7 24.1 Strike using a mallet on nylon cap to release 25.1 Slide base off cylinder. the base from cylinder. Step 26 26.1 Hold base and pull hard to remove caster from base. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 8 2.1 Takeout the back frame assembly from the chair. 3.1 Remove the sacral screws from the back frame assembly using a T-25 screw driver. Note: For No Lumbar Cap, follow step 5. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 9 5.1 Insert a screw driver through the screw hole and push the no-lumbar cap out from the bottom of the back. Step 6 Step 7 6.1 Unscrew the 3 bolts using T-45 torx bit. 7.1 Remove the J-bar from tilt assembly. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 10 10.1 If it is fixed seat plug, follow steps from 11 to13. 11.1 Unsnap the fixed seat plug with screw driver in slot. 10.2 If it is adjustable seat handle, follow steps from 14 to 18. Fixed Seat Plug Adjustable Seat Handle HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 11 14.1 Release the adjustable seat handle from the seat assembly. 15.1 Depress the retainer stop using a flat head screw driver and slide the seat assembly away from the tilt assembly. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 12 17.1 Flip the seat pan and unscrew the T-25 torx screws. Step 18 Step 19 18.1 Remove the adjustable seat handle and spring. 19.1 Turn lever counterclock wise to activate the cylinder. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 13 20.1 Place the lift-off tool on the top edge of the cylinder. 21.1 Hit the lift-off tool with mallet. Step 22 Step 23 22.1 Remove the tilt control from cylinder. 23.1 Remove the footring from cylinder. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
- Page 14 25.1 Strike using a mallet on nylon cap to release the base from cylinder. Step 26 Step 27 26.1 Slide base off cylinder. 27.1 Hold base and pull hard to remove caster from base. HermanMiller for Lino Chair 1BJN55 rev A Dissembly Instructions...
