IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
To reduce the risk of electrical shock, turn off power supply before
installation or servicing.
2.
This luminaire must be installed in accordance with the NEC or your
local electrical code. If you are not familiar with these codes and
requirements, consult a qualified electrician.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
TO INSTALL:
1
2
(4) 1/2" threaded holes
(4) Mounting
Holes
3
Conduit Knockouts Locations
1 of 2
Mounting Box
(4) Mounting Holes
(2) Keyhole
Conduit
Knockouts
Knockout
Luminaire
Mount Screws

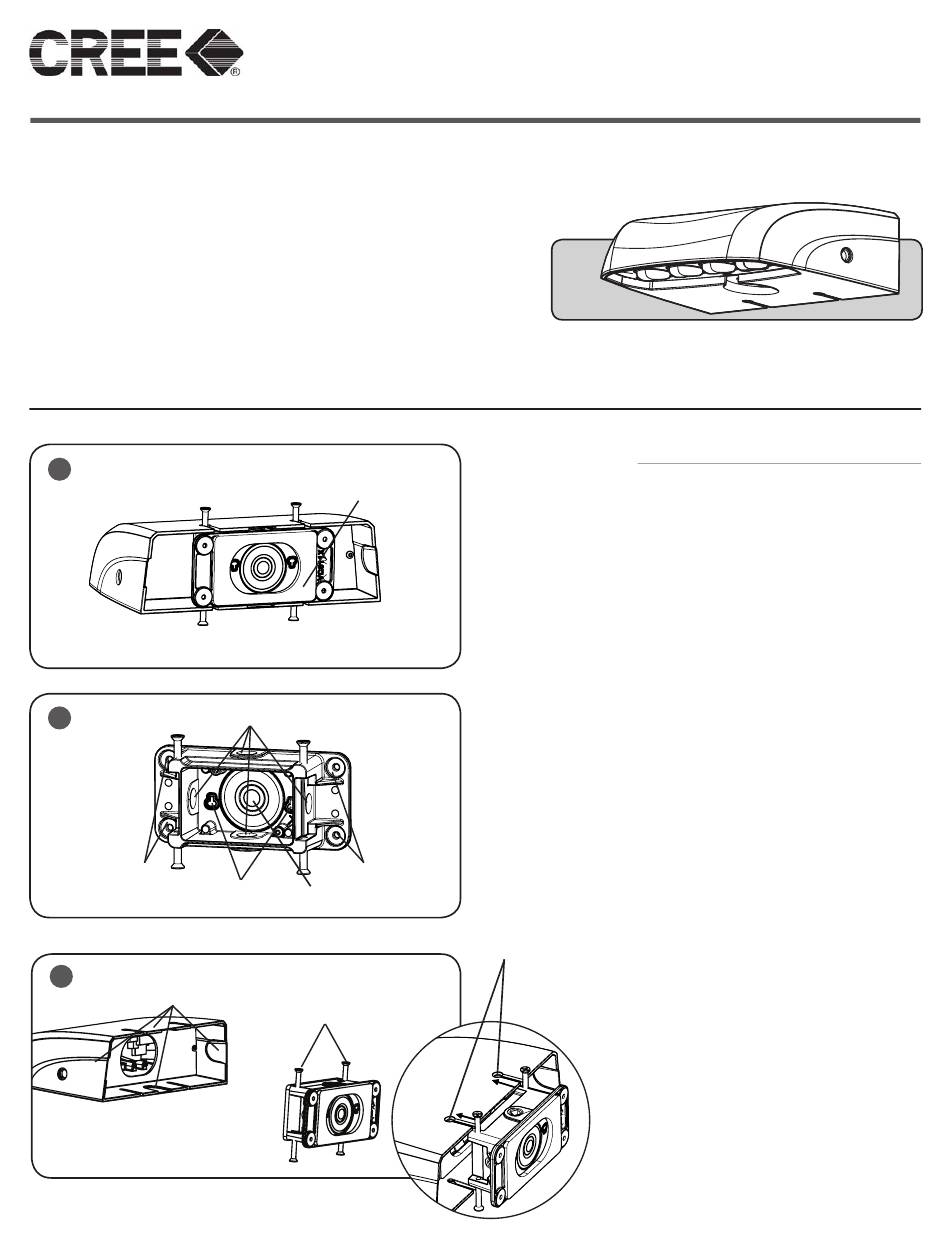

WALL MOUNTING
STEP 1:
Remove mounting box from the luminaire.
See Figure 1.
STEP 2:
IMPORTANT – If needed, the (2) Keyhole
knockouts located inside box may be
removed, but are for alignment only. See
Figure 2. Luminaire is to be supported by
(4) 3/16" mounting holes. The Mounting
holes will accommodate a #10 bolt. Select
appropriate customer supplied mounting
hardware for mounting surface. See Figure
2 and 4.
STEP 3:
Place mounting box over junction box
or conduit. If mounting over junction
box a 2-1/2" Inspection knockout hole is
included. See Figure 2 and 4.
STEP 4:
For surface wiring (4) 1/2" threaded holes
are available. See Figure 2 and 4.
STEP 5:
If mounting on a uneven surface, place
a minimum of a 1/4" bead of high grade
silicone on the black gasket encompassing
the Inspection Knockout hole on the back
Slots on Luminaire
of the mounting box. See Figure 4.
Housing
STEP 6:
If mounting over surface mounted conduit
use the knockout conduit openings
located on the top, bottom, or sides of the
luminaire. Knockouts can be removed by
using a hammer or pliers. See Figure 3.
STEP 7:
Before securing to wall mounting surface,
make sure mounting box is level.
STEP 8:
Secure mounting box to wall.

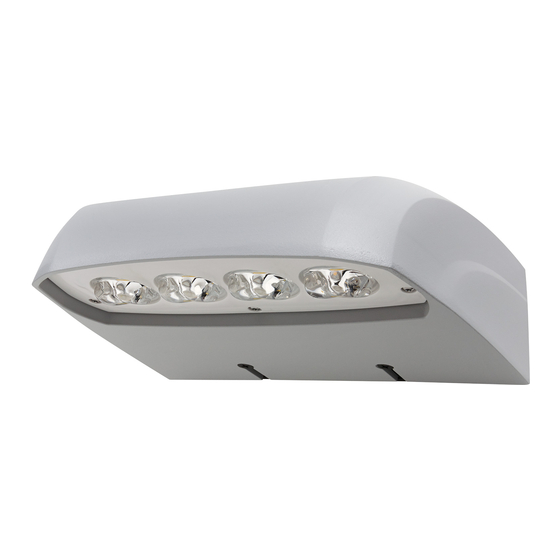

XSP Series
LED Wall Pack
Includes: XSPW™ Luminaires
INSTALLATION INSTRUCTIONS
CI379X40R0
