Cree XSP Series Installation Instructions

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions
should always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE

TO INSTALL:

1
Metal Back Light
Shield Frame
Small Tab
2
Luminaire Fin
(2) Large Tab
1 of 2
(2) Large Tab
Back Light
Shield
Small Tab
Grommet
Grommet Shield
XSP Series
XSPR™ LED Street Light
Back Light Shield
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION

PREPARATION

STEP 1:
Clean the surface of the LED Module.
NOTE: Be sure to use a very mild
detergent. Damage will occur to the
LED Optics if any alcohol based or
otherwise harsh chemicals used.

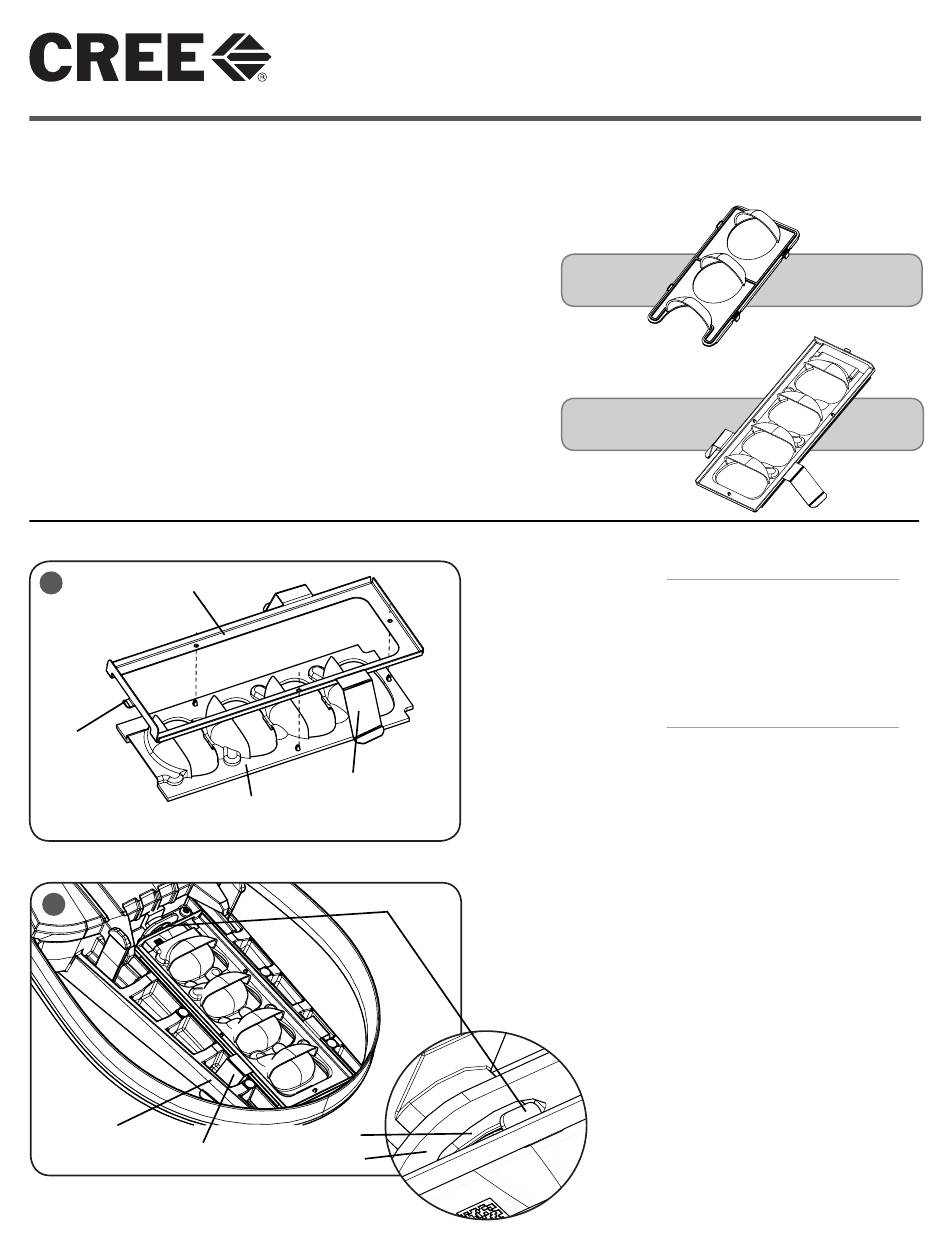

4 OPTIC BACK LIGHT SHIELD

STEP 1:
Back Light Shield and the metal
backlight shield frame are factory
installed together but if the assembly
comes loose in shipping reattach by
inserting (3) studs on the backlight
shield into the designated holes on
the metal frame. Push together until it
snaps into place. See Figure 1.
STEP 2:
Insert at an angle, the small tab on
the Back Light Shield Assembly in
between the grommet and grommet
shield. See Figure 1 and 2.
STEP 3:
Press the (2) large tabs on the Back
Light Shield Assembly inward and
snap them down into the luminaire
fins. See Figure 2.
LPN00259X0001A1_A
