V2 EASY-TOP Manual

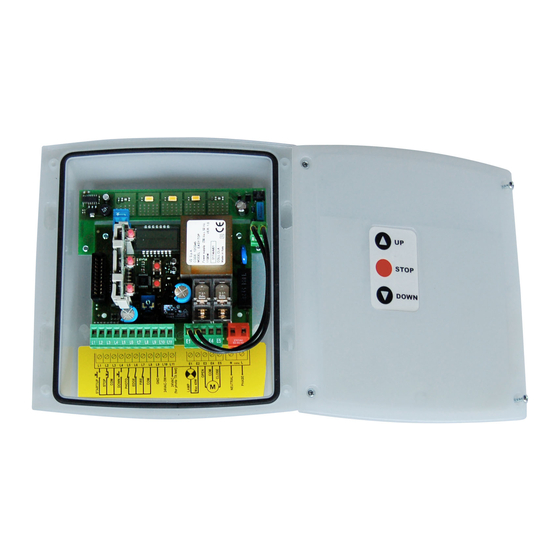

Digital control unit for roller shutters
Hide thumbs

Advertisement

Table of Contents

EASY-TOP
CENTRALE DI COMANDO DITALE
I
PER SERRANDE AVVOLGIBILI
DIGITAL CONTROL UNIT FOR
GB
ROLLER SHUTTERS
ARMOIRE DE COMMANDE DIGITALE
F
POUR STORES
CUADRO DE MANIOBRAS DIGITAL
E
PARA PERSIANAS ENROLLABLES
QUADRO ELÉCTRICO DIGITAL
P
PARA ESTORES DE ENROLAR
DIGITAL STEUERUNG FÜR ROLLTORE
D
DIGITALE STUURCENTRALE VOOR ROLLUIKEN
NL
V2 S.p.A.
Corso Principi di Piemonte, 65/67
12035 RACCONIGI (CN) ITALY
tel. +39 01 72 81 24 11 - fax +39 01 72 84 050
info@v2home.com - www.v2home.com
IL n. 312
EDIZ. 31/07/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EASY-TOP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V2 EASY-TOP

Summary of Contents for V2 EASY-TOP

  • Page 1 V2 S.p.A. Corso Principi di Piemonte, 65/67 12035 RACCONIGI (CN) ITALY IL n. 312 tel. +39 01 72 81 24 11 - fax +39 01 72 84 050 EDIZ. 31/07/2014 info@v2home.com - www.v2home.com EASY-TOP CENTRALE DI COMANDO DITALE PER SERRANDE AVVOLGIBILI...

  • Page 2: Important Remarks

    IMPORTANT REMARKS DECLARATION OF CONFORMITY For any installation problem please contact our Customer Service V2 S.p.A. hereby declare that products EASY-TOP conform to the at the number +39-0172.812411 operating Monday to Friday essential requirements established in the following directives: from 8:30 to 12:30 and from 14:00 to 18:00.

  • Page 3: Electric Connections

    ELECTRIC CONNECTIONS WARNING: Normally closed inputs STOP (L2), PHOTOCELL (L5), EDGE (L6), FIRE (L7), if not used must be bridged through the COMMON terminal (L3 - L8)

  • Page 4: Plug In Receiver

    OPTICAL EDGE INSTALLATION START/UP. N.O. contact The EASY-TOP main control unit is configured for the installation STOP. N.C. contact of one 24 Vdc powered optical edge and transmitter power regulation. COMMON (-) Connect the transmitter and receiver in accordance DOWN. N.O. contact with the following table.

  • Page 5: Cable Gland Assembly

    CASE WITH KEYPAD The EASY-TOP control units may be installed in cases with external keypads (accessory codes 171224 + 171226). To use the keypad buttons, it is essential to install adapter 171226 as shown in the figure.

  • Page 6: Control Panel

    CONTROL PANEL PROGRAMMING When power is on, the control unit checks that display correctly The functions of and times of the control unit are programmed 8.8.8.8 operates by switching on all segments for 1.5 sec. via the configuration menu, which can be accessed and explored Pr1 .0 Firmware version, e.g.

  • Page 7: Display Off

    dEF1 dEF2 dEF3 DISPLAY in 1 PHOTOCELL ACTIVE ONLY DURING CLOSING PHOTOCELL ACTIVE DURING OPENING AND The intervention of the photocell during the CLOSING opening stage is ignored. The intervention of the photocell during the The intervention of the photocell during the opening phase causes the motor to stop.
  • Page 8 dEF1 dEF2 dEF3 DISPLAY Lo 4 DEAD MAN LOGIC INACTIVE DEAD MAN LOGIC ACTIVE By simply using the start command, the user can The user must press and hold the start button activate the automation device in opening or for the entire duration of the desired opening or closing.
