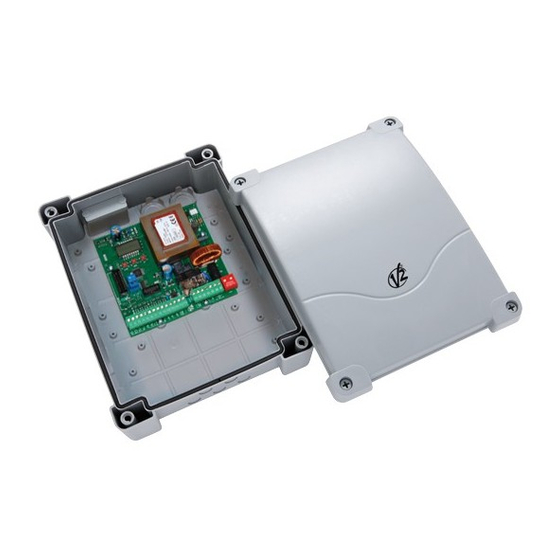

V2 CITY4-EVO Manual

Universal digital control unit for the control of a 230v/120v engine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CITY4-EVO
CENTRALE DIGITALE UNIVERSALE PER IL
I
COMANDO DI UN MOTORE 230V/120V
UNIVERSAL DIGITAL CONTROL UNIT FOR THE
GB
CONTROL OF A 230V/120V ENGINE
CENTRALE DIGITALE UNIVERSELLE POUR LE
F
CONTROLE D'UN MOTEUR A 230V/120V
CUADRO DE MANIOBRAS DIGITAL UNIVERSAL
E
PARA UN MOTOR 230V/120V
ZIS454
IL 476-1
EDIZ. 31/10/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CITY4-EVO and is the answer not in the manual?

Questions and answers

Related Manuals for V2 CITY4-EVO

Summary of Contents for V2 CITY4-EVO

  • Page 1 ZIS454 IL 476-1 EDIZ. 31/10/2018 CITY4-EVO CENTRALE DIGITALE UNIVERSALE PER IL COMANDO DI UN MOTORE 230V/120V UNIVERSAL DIGITAL CONTROL UNIT FOR THE CONTROL OF A 230V/120V ENGINE CENTRALE DIGITALE UNIVERSELLE POUR LE CONTROLE D’UN MOTEUR A 230V/120V CUADRO DE MANIOBRAS DIGITAL UNIVERSAL...
  • Page 2 FISSAGGIO - FIXING - FIXATION - FIJACION DOWN MENU MAINS OVERLOAD...

  • Page 3: Table Of Contents

    INDEX 1 - IMPORTANT REMARKS ............................2 - DISPOSAL ................................3 - EU DECLARATION OF CONFORMITY ........................4 - TECHNICAL SPECIFICATIONS ..........................5 - DESCRIPTION OF THE CONTROL UNIT ......................... 5.1 - ELECTRIC CONNECTIONS ..........................5.2 - MOTORS ................................. 5.3 - STOP ................................5.4 - ACTIVATION INPUTS ............................

  • Page 4: Important Remarks

    • The installer must provide for a device (es. magnetotermical switch) ensuring the omnipolar sectioning of the equipment V2 S.p.A. hereby declare that CITY4-EVO products conform to the from the power supply. The standards require a separation of essential requirements established in the following directives: the contacts of at least 3 mm in each pole (EN 60335-1).

  • Page 5: Technical Specifications

    4 - TECHNICAL SPECIFICATIONS 5 - DESCRIPTION OF THE CONTROL UNIT CITY4-EVO The digital control unit CITY4-EVO is an innovative V2 product Power supply 230V / 50-60Hz that guarantees a safe and reliable automation for single leaf swings, sliding gates, sliding doors, etc...

  • Page 6: Electric Connections

    5.1 - ELECTRIC CONNECTIONS WARNING: The installation of the unit, safety devices and accessories must be carried out when the power supply is disconnected BEFORE PROCEEDING WITH THE ELECTRICAL CONNECTIONS, READ CAREFULLY THE CHAPTERS DEDICATED TO THE INDIVIDUAL DEVICES AVAILABLE IN THE PAGES THAT FOLLOW.
  • Page 7 DOWN MENU MAINS OVERLOAD L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 Z1 Z2 Z3 Z4 Z5 Z6 G1 G2 G3 G4 G5 G6 G7 ATTENTION: jumpers J1 and J2 must be removed only to allow connection of the LOW ENERGY optional module.

  • Page 8: Motors

    5.2 - MOTORE 5.3 - STOP CITY4-EVO control unit can control one alternate current For added safety, you can install a STOP switch that, when asynchronous motor. Max. total power is 700W. pressed, immediately stops the automation. The switch must have a normally closed contact, which opens in case of activation.

  • Page 9: Photocells

    5.5 - PHOTOCELLS Timer mode This function allows programming the gate opening time during the day, by making use of an external timer. The control unit supplies a 24Vac power supply to photocells and it can perform a photocell operation test before starting the gate START = START (it controls the total opening of the gate) opening phase.

  • Page 10: Safety Edges

    5.9 - FLASHING LIGHT Connect the limit switch to the unit terminal box as follows: CITY4-EVO provides for a 230V - 40W (120V – 40W for 120V • opening limit switch in door 1 between terminal L9 and L11 model) flashing light equipped with intermittence inside.

  • Page 11: Courtesy Light

    5.10 - COURTESY LIGHTS 5.11 - LOW VOLTAGE LIGHT The control unit has a 12Vdc output that allows connections to a Thanks to the output COURTESY LIGHT the control unit City4 load up to 3W. allows the connection of an electric appliance (e.g. courtesy light This output can be used to connect a signal light that indicates or garden lights), controlled automatically or by means of the that status of the gate, or for a low voltage flashing light.

  • Page 12: External Aerial

    6 - PLUG IN RECEIVER We suggest to use the external aerial (model: ANS433) in order to CITY4-EVO is suitable for plugging in a Personal Pass MR receiver. guarantee the maximal range. WARNING: Pay attention to the way you connect the Connect the antenna hot pole to terminal L1 of the control unit removable modules.

  • Page 13: Adi Interface

    8 - ADI INTERFACE 9 - CONTROL PANEL The CITY4-EVO unit is equipped of ADI 2.0 advanced interface, When power is on, the control unit checks that display correctly 8.8.8.8 which allows connection with a series of optional modules. operates by switching on all segments for 1.5 sec.

  • Page 14: Use Of Down Menu And Up Keys For Programming

    9.1 - USE OF DOWN MENU AND UP KEYS FOR 10 - QUICK CONFIGURATION PROGRAMMING This paragraph concerns a quick procedure to set the control unit and set it at work immediately. Control unit time and function programming is made within a We recommend following these instructions, in order to special configuration menu, to which you can access and where check quickly the correct operation of control unit, motor and...

  • Page 15: Self-Learning Of Working Times

    12 - SELF-LEARNING OF WORKING LIMIT SWITCHES OR SENSOR OF OBSTACLES IS ENABLED TIMES 1. The door is closed until the limit switches comes into action, or This menu allows the automatic learning of the times necessary to the sensor of obstacles detects open and close the gate.

  • Page 16: Reading Of Cycle Counter

    Area 2 is the reading of the number of cycles before the next request for service: its value is rounded down to the hundreds. CITY4-EVO control unit counts the completed opening cycles of Area 3 is the setup of this latter counter; on first pressing the Up...

  • Page 17: Diagnostics (Reading Of Event)

    To perform a diagnostic on the operation of the installation, EVENT CODE the CITY4-EVO control unit stores events that interfere with the The code displayed is used to define the type of event that normal operation of the automation.
  • Page 18 EVENT CODE DESCRIPTION LEVEL DISPLAY E001 The microprocessor has been reset E002 Access to the programming menu of the control unit E003 Loading the DEFAULT parameters E004 Self-learning of the working times E015 StoP Activating STOP 2,3,4 E019 i.Adi Activating the virtual STOP (control from an ADI device) E020 Err2 TRIAC test error...

  • Page 19: Emergency Dead Man Operation

    15 - EMERGENCY DEAD MAN 16 - CONTROL UNIT OPERATION CONFIGURATION This operational mode can be used to move the gate in DEAD Control unit time and function programming is made within a MAN mode in particular cases, such as installation/maintenance or special configuration menu, to which you can access and where in the case of malfunctioning of photocell, edge, limit switches or you can shift through DOWN, MENU and UP keys placed under...
  • Page 20 AntE SCor PARAMETER VALUE DESCRIPTION MEMO En.SA ENERGY SAVING function When the function is active and the LOW ENERGY module is installed, the control unit deactivates the display, the photocells, and all the devices powered by a terminal box under determined conditions. NOTE: If the LOW ENERGY module is not installed, the control unit deactivates only the display.
  • Page 21 AntE SCor PARAMETER VALUE DESCRIPTION MEMO t.inv Backlash time Function deactivated 0.5” - 1’00 To facilitate uncoupling of the electrical lock, it may be useful to control the motors before starting opening for a short time. The control unit controls the motors in reduced power in closing direction for the setup time t.PrE 1.0”...
  • Page 22 AntE SCor PARAMETER VALUE DESCRIPTION MEMO t.CvE 0.0” 0.0” Fast closing time after slowing down 0.0” - 5.0” If a slowing time other than 0 is set up, it could be likely that the gate speed is not enough for the lock to fasten during the closing phase. In case this function is enabled, once the slowing down phase is finished, the control unit will give a normal speed command (that is to say, with no slowing down) for the set up time, and then it will open...
  • Page 23 AntE SCor PARAMETER VALUE DESCRIPTION MEMO Ch.tr Closing after transit This function allows having a fast closing as soon as transit through Ch.AU the gate is completed, therefore, a time shorter than generally used Function deactivated. The gate closes after the time set for the Ch.AU function 0.5”...
  • Page 24 AntE SCor PARAMETER VALUE DESCRIPTION MEMO Strt StAn StAn Activation inputs (START and START P.) This menu allows selecting input operation modes (see chapter 5.4) StAn Standard mode Start inputs from terminal board are disabled. StAn Radio inputs operate in standard mode APCh Open/Close command PrES...
  • Page 25 ( parameter = WARNING: Improper use of this function can affect the safety of using the automation. V2 recommends: • Use this function only when the passage of the door in front of the photocell really is inevitable. • Set the closest possible shaded area limits Function deactivated F.ShA...
  • Page 26 AntE SCor PARAMETER VALUE DESCRIPTION MEMO FC.En StoP Limit switch inputs Limit switch inputs are disabled rALL Inputs enabled: the gate starts the slowdown phase near the limit switches StoP Inputs enabled: the gate stops near the limit switches EnCo Enabling encoder and adjustment of sensitivity NOTE: The terminals dedicated to the encoder are the same of the limit switches;...
  • Page 27 AntE SCor PARAMETER VALUE DESCRIPTION MEMO riLA Motor Release on Mechanical Stop When the gate halts against the mechanical stop, the motor is controlled for a fraction of a second in the opposite direction, decreasing the motor gear tension Function deactivated Function activated t.inA Maximum gate quiescent time...
  • Page 28 AntE SCor PARAMETER VALUE DESCRIPTION MEMO Ev.di Display of the events If this function is enabled, every time that an event changes the normal operation of the gate (coming into action of a safety, control by user, etc.) the display shows a message indicating the cause. Function activated Function deactivated Ev.M...

  • Page 29: Operation Defects

    2. Check the thermal protection on the motor has not It means that TRIAC test failed. activated. 3. If no problems are detected on the motor, contact the V2 technical support service to send the control unit for repair. - 55 -...
  • Page 30 DISPLAYING DESCRIPTION SOLUTION Err3 1. Be sure that no obstacle interrupted the photocell The display shows When a start command is given the gate won’t open. beam when the Start command was given. It means that the photocell test failed. Foto 2.
  • Page 31 V2 S.p.A. Corso Principi di Piemonte 65/67 12035 RACCONIGI CN (ITALY) Tel. +39 0172 812411 - Fax +39 0172 84050 info@v2home.com www.v2home.com...

This manual is also suitable for:

City4-evo-120v
