  • Page 1 V2 S.p.A. gatestore.co.uk remotecontrolgates.co.uk Easy3-4 CENTRALE DI COMANDO ANALOGICA PER SERRANDE AVVOLGIBILI ANALOG CONTROL UNIT FOR ROLLER SHUTTERS ARMOIRE DE COMMANDE ANALOGIQUE POUR STORES CUADRO DE MANIOBRAS ANALÓGICO PARA PERSIANAS ENROLLABLES QUADRO ELÉCTRICO ANALÓGICO PARA ESTORES DE ENROLAR ANALOGE STEUERUNG FÜR ROLLTORE...
  • Page 3 INDEX...

  • Page 4: Important Remarks

    IMPORTANT REMARKS V2 has the right to modify the product without previous notice; it also declines any responsibility to damage or injury to people or things caused by improper use or wrong installation. Please read this instruction manual very carefully before installing and programming your control unit.

  • Page 5: Description Of The Control Unit

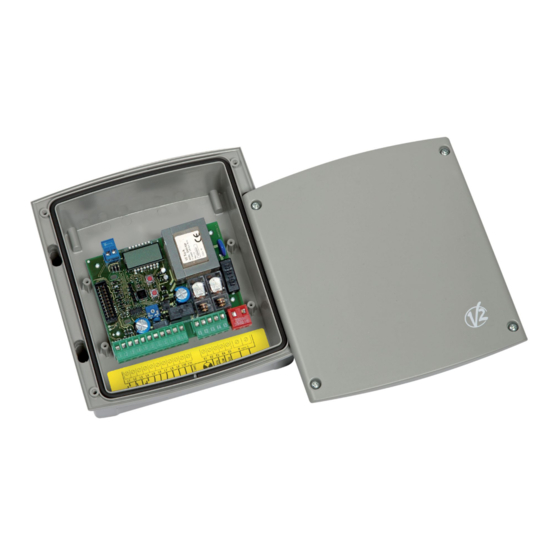

    DESCRIPTION OF THE CONTROL UNIT EASY4 WARNING: use only FEEL optical safety edges (see V2 catalogue) TECHNICAL SPECIFICATIONS 230V models 120V models...

  • Page 6: Electric Connections Table

    ELECTRIC CONNECTIONS TABLE EASY4 WARNING: Normally closed inputs STOP (L2), PHOTOCELL (L5), EDGE (L6), FIRE (L7), if not used must be bridged through the COMMON terminal (-) WARNING: a wrong connection of the antenna compromises seriously the RADIO working of...
  • Page 7 OPTICAL EDGE INSTALLATION (EASY4 only) PLEASE NOTE: TRANSMITTER RECEIVER EASY4 only FIRE INPUT FIRE (L7) COMMON (L8)
  • Page 8 OPERATION WITH A TIMER To use this function, it is essential to set function 3 (see FUNCTION TABLE) to AUTOMATIC LOGIC START (L1) COMMON (L3) CASE WITH KEYPAD...

  • Page 9: Cable Gland Assembly

    CABLE GLAND ASSEMBLY PLEASE NOTE:...
  • Page 10 DISPLAYING THE SET FUNCTIONS LED ON LED OFF LED FLASHING motor CONTROL UNIT start open auto canc photo edge test IN STANDBY stop down fire light error PLEASE NOTE: the following display refers to the default factory settings CONTROL UNIT motor start open...
  • Page 11 ALTERING THE FUNCTIONS start/up start/up motor start open auto canc STEP photo edge test stop down fire light error 2s < T < 5s T < 1s 2s < T < 5s motor start open auto canc STEP photo edge test stop down...

  • Page 12: Function Table

    FUNCTION TABLE (the highlighted boxes indicate the factory default settings) FUNCTION LED OFF LED ON (LED) UP/DOWN LOGIC START/STOP LOGIC 1. start/up START ACTIVE WHILE OPENING START INACTIVE WHILE OPENING 2. open/stop AUTOMATIC LOGIC STEP LOGIC 3. auto/down PHOTOCELL INACTIVE WHILE PHOTOCELL ACTIVE WHILE OPENING OPENING 4.
  • Page 13 FUNCTION TABLE (the highlighted boxes indicate the factory default settings) FUNCTION LED OFF LED ON (LED) MAN PRESENT LOGIC ACTIVE MAN PRESENT LOGIC INACTIVE 6. dm/fire PLEASE NOTE: when the Man-Present function is enabled, radio-controlled operation is disabled FLASHING COURTESY LIGHT 7.
  • Page 14 ADJUSTING THE OPERATING TIME motor start open auto canc STEP photo edge test stop down fire light error 2s < T < 5s 2s < T < 5s T < 1s...

  • Page 15: Adjusting The Pause Time

    ADJUSTING THE PAUSE TIME motor start open auto canc STEP photo edge test stop down fire light error 2s < T < 5s 2s < T < 5s 2s < T < 5s T < 1s ADJUSTING THE COURTESY LIGHT OFF DELAY...

  • Page 16: Operation With Remote Control

    OPERATION WITH REMOTE CONTROL START/STOP logic: UP/DOWN logic: PLEASE NOTE: MEMORISING REMOTE CONTROL UNITS PLEASE NOTE:...
  • Page 17 DISTANCE MEMORISING OF REMOTE CONTROL UNITS DELETING ALL THE REMOTE CONTROL UNITS WARNING: motor/test/error...
  • Page 18 VISUALISATION AND SIGNALLING USING LED FLASHING led (combined with led 8) Led 8 is OFF or ON Led 8 is BLINKING start/up start /up 1. start/up open/stop open/stop 2. open/stop down down 3. auto/down photo photo 4. photo edge edge 5.
  • Page 20 V2 S.p.A. gatestore.co.uk w remotecontrolgates.co.uk...

This manual is also suitable for:

Easy3
