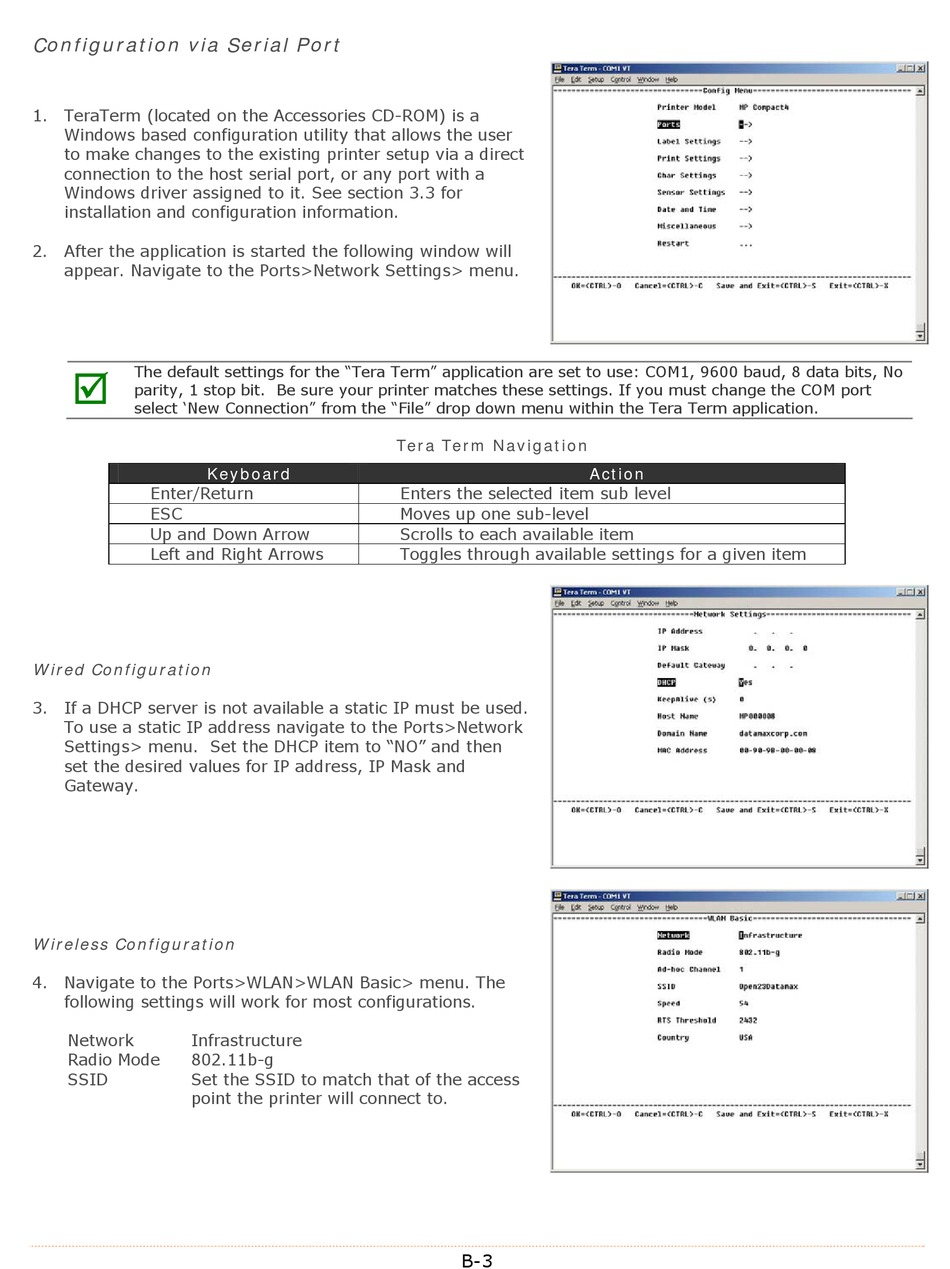

Datamax MP Compact4 Mark II Operator's Manual page 33

Configuration via Serial Port
1. TeraTerm (located on the Accessories CD-ROM) is a
Windows based configuration utility that allows the user
to make changes to the existing printer setup via a direct
connection to the host serial port, or any port with a
Windows driver assigned to it. See section 3.3 for
installation and configuration information.
2. After the application is started the following window will
appear. Navigate to the Ports>Network Settings> menu.
The default settings for the "Tera Term" application are set to use: COM1, 9600 baud, 8 data bits, No

parity, 1 stop bit. Be sure your printer matches these settings. If you must change the COM port
select 'New Connection" from the "File" drop down menu within the Tera Term application.
Keyboard
Enter/Return
ESC
Up and Down Arrow
Left and Right Arrows
Wired Configuration
3. If a DHCP server is not available a static IP must be used.
To use a static IP address navigate to the Ports>Network
Settings> menu. Set the DHCP item to "NO" and then
set the desired values for IP address, IP Mask and
Gateway.
Wireless Configuration
4. Navigate to the Ports>WLAN>WLAN Basic> menu. The
following settings will work for most configurations.
Network Infrastructure
Radio Mode 802.11b-g
SSID Set the SSID to match that of the access
point the printer will connect to.
Tera Term Navigation
Enters the selected item sub level
Moves up one sub-level
Scrolls to each available item
Toggles through available settings for a given item
B-3
