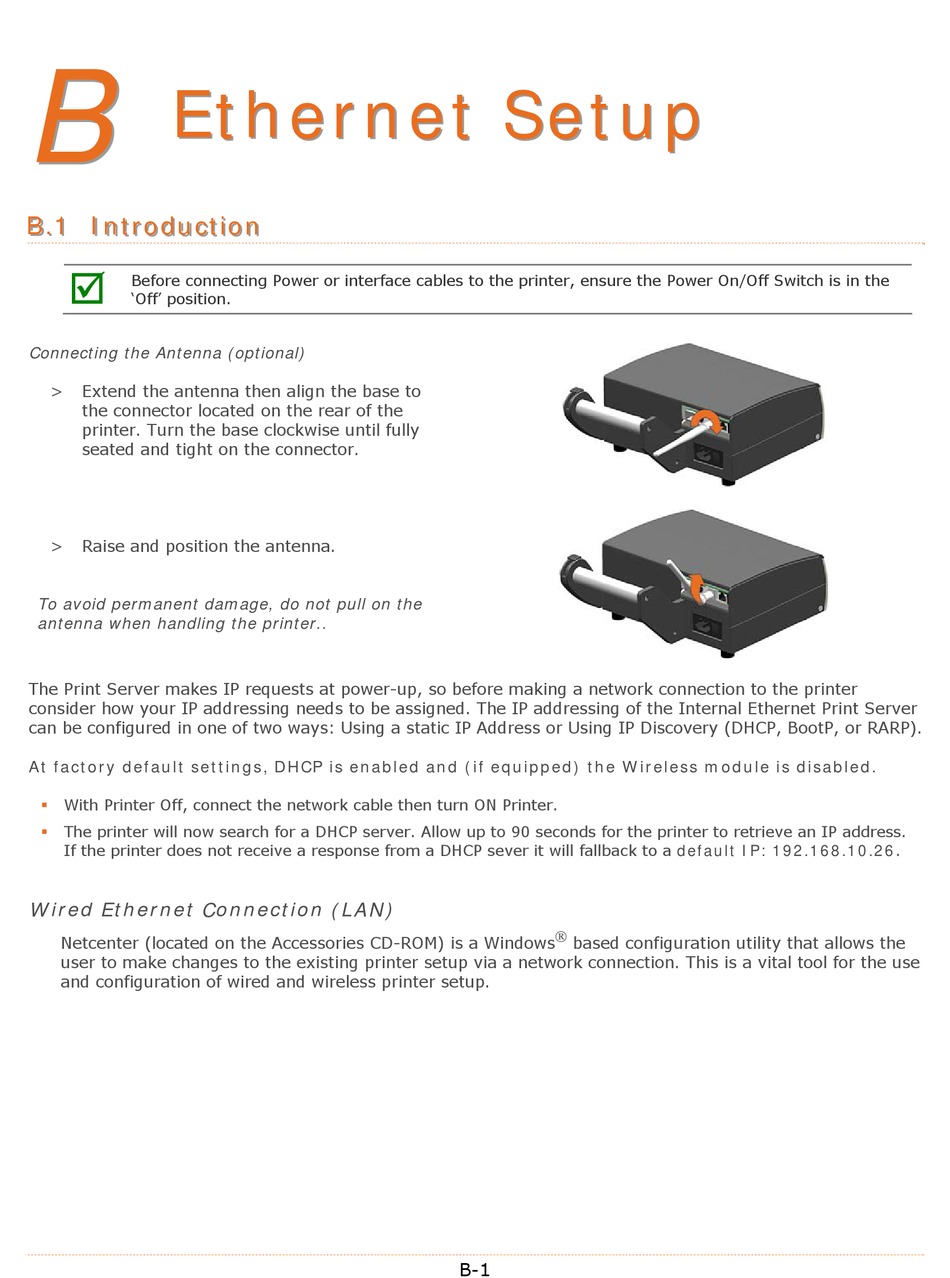

Datamax MP Compact4 Mark II Operator's Manual page 31

B
B
B
E
E
E
B . 1 I n t r o d u c
B . 1 I n t r o d u c
B . 1 I n t r o d u c

Before connecting Power or interface cables to the printer, ensure the Power On/Off Switch is in the
'Off' position.
Connecting the Antenna (optional)
> Extend the antenna then align the base to
the connector located on the rear of the
printer. Turn the base clockwise until fully
seated and tight on the connector.
> Raise and position the antenna.
To avoid permanent damage, do not pull on the
antenna when handling the printer..
The Print Server makes IP requests at power-up, so before making a network connection to the printer
consider how your IP addressing needs to be assigned. The IP addressing of the Internal Ethernet Print Server
can be configured in one of two ways: Using a static IP Address or Using IP Discovery (DHCP, BootP, or RARP).
At factory default settings, DHCP is enabled and (if equipped) the Wireless module is disabled.
With Printer Off, connect the network cable then turn ON Printer.

The printer will now search for a DHCP server. Allow up to 90 seconds for the printer to retrieve an IP address.

If the printer does not receive a response from a DHCP sever it will fallback to a default IP: 192.168.10.26.
Wired Ethernet Connection (LAN)
Netcenter (located on the Accessories CD-ROM) is a Windows ® based configuration utility that allows the
user to make changes to the existing printer setup via a network connection. This is a vital tool for the use
and configuration of wired and wireless printer setup.
t h e r n
t h e r n
t h e r n
t i o n
t i o n
t i o n
e t S e
e t S e
e t S e
B-1
t u p
t u p
t u p
