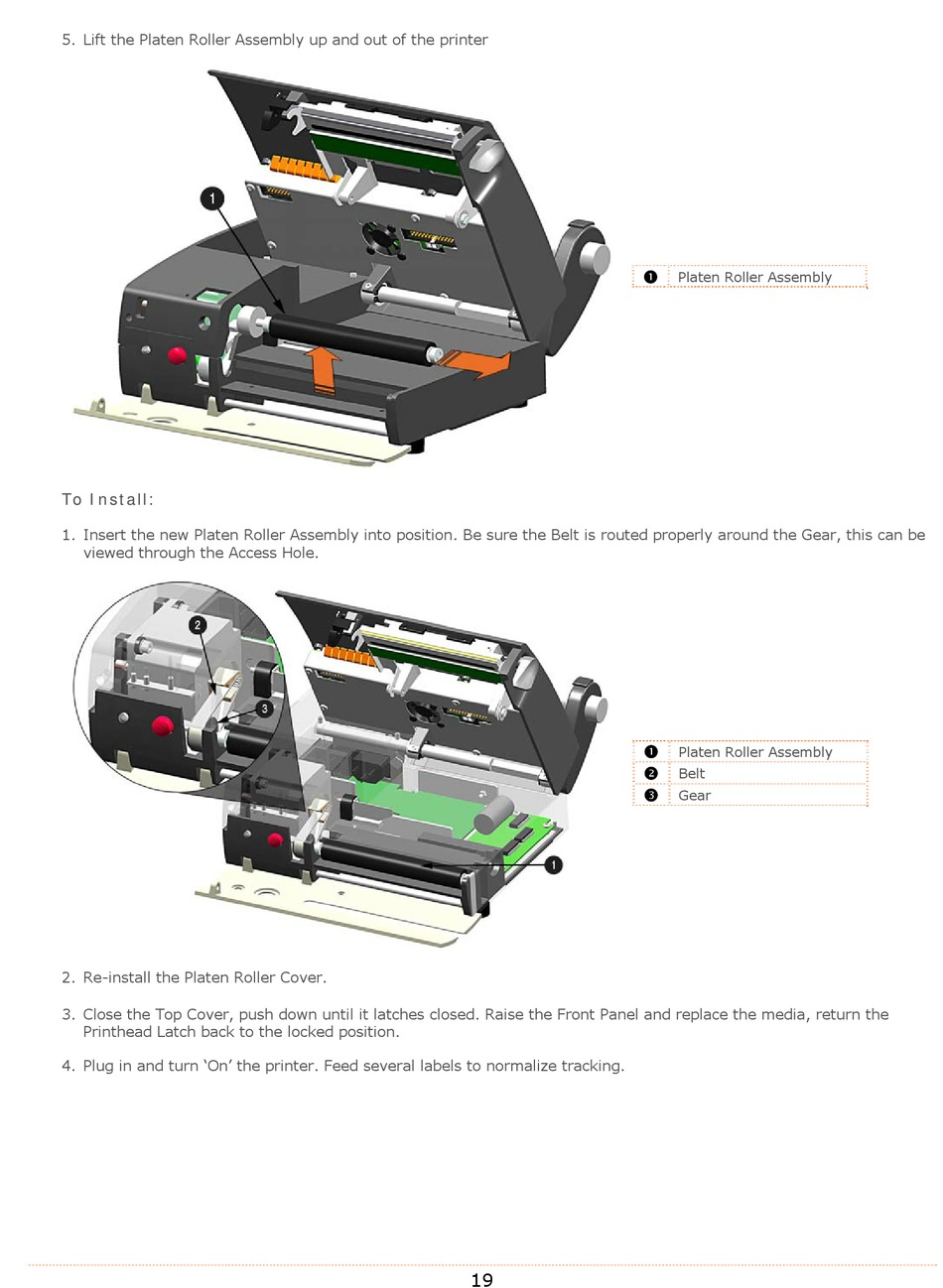

5. Lift the Platen Roller Assembly up and out of the printer
To Install:
1. Insert the new Platen Roller Assembly into position. Be sure the Belt is routed properly around the Gear, this can be
viewed through the Access Hole.
2. Re-install the Platen Roller Cover.
3. Close the Top Cover, push down until it latches closed. Raise the Front Panel and replace the media, return the
Printhead Latch back to the locked position.
4. Plug in and turn 'On' the printer. Feed several labels to normalize tracking.
19
Platen Roller Assembly
Platen Roller Assembly
Belt
Gear
