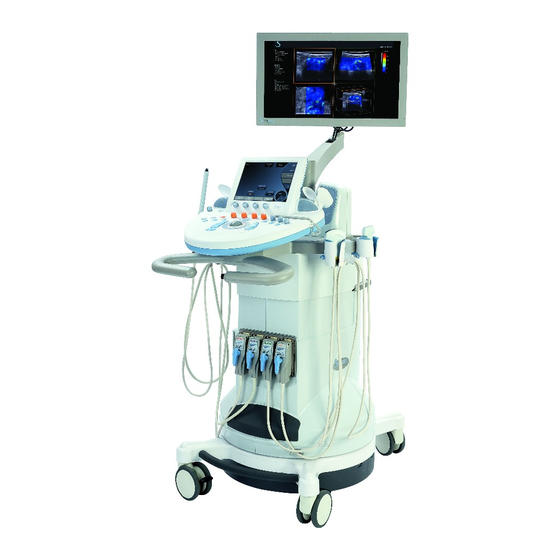

- Page 1 AIXPLORER CLEANING INSTRUCTION GUIDE PM.LAB.128 - A...
- Page 2 This document refers to the following Aixplorer® User Guides and Addendums: • PM.LAB.064-A • PM.LAB.026-B • PM.LAB.032-A...
- Page 3 Changing Printer Paper and Toner Refer to the user’s manual of your specific printer for guidance on how to properly change printer paper and toner. Cleaning the System Cleaning Frequency You can perform the maintenance operations as described in this chapter. Cleaning of the Aixplorer®...
- Page 4 It is prudent to continually survey the system for maintenance needs. Contact your SuperSonic Imagine Sales or Service authorized representative for further details. CAUTION If you have any questions regarding basic maintenance, or prefer to have maintenance service performed, contact your authorized SuperSonic Imagine Service representative.
- Page 5 Cleaning the Exterior of the Machine The exterior of the system should be periodically cleaned with a soft cloth, lightly moistened with water and a gentle soap. This includes the system chassis, control panel and handles. Be sure to clean any unused gel from the surface of the control panel after system use.
- Page 6 Cleaning Air Filters The Aixplorer® ultrasound system is equipped with air filters. These should be inspected every week and cleaned as needed. At first switch on of the system after the first day of the month, the system displays an icon as a reminder to check the air filters.
- Page 7 TO MAINTAIN AIR FILTERS 1. Remove the air filter cover by pulling the bottom of the cover towards you. 2. Inspect the filter, and if it is dirty, replace it with a spare 3. Depending on the condition of the air filter, use either a vacuum cleaner or soap and water to clean the dirty filter 4.
- Page 8 Cleaning and Disinfecting the Barcode Scanner Maintenance Cleaning the Scanning Window Reading performance may degrade if the scanner's window is not clean. If the window is visibly dirty, or if the scanner isn't operating well, clean the window with a soft cloth or lens tissue dampened with water (or a mild detergent - water solution).
- Page 9 Never use solvents (e.g., acetone, benzene, ether, or phenol-based agents) on the housing or window - solvents may damage the finish or the window.
- Page 10 Cleaning and Disinfecting Transducers Transducer Cleaning Safety WARNING Use care when handling and cleaning ultrasound transducers. Do not use a damaged or defective transducer. Do not immerse or allow liquid to penetrate a transducer which has had its face or cable sheath compromised. Failure to follow these precautions can result in serious injury and equipment damage.
- Page 11 The level of disinfection required for a device is dictated by the type of tissue it will contact during use. Ensure the solution strength and duration of contact are appropriate for the intended clinical use of the transducer. Always use protective eyewear and gloves when cleaning, disinfecting or sterilizing any equipment.
- Page 12 Care should be taken to avoid applying disinfectant agents to the cable- housing junction. Do not allow any fluids to enter the cable-housing junction. Do not use any alcohol or alcohol-based products on the transducer cable. If the transducer shows signs of damage such as cracks, splitting, delamination of the face or cable damage, discontinue use of the transducer and contact your authorized SuperSonic Imagine Service representative for assistance.
- Page 13 Transducer used in semi-critical application should be cleaned and high level disinfected after use even if a sheath was used. Transducers used in critical applications should be sterilized and the use of a sterile sheath is recommended. Transducer used in critical application should be cleaned and sterilized after use even if a sheath was used.
- Page 14 4. If stubborn material has dried on the face or housing of the transducer, carefully scrub the transducer using water moistened gauze, sponge or surgeon’s soft bristle brush. Wipe away any material with a water- moistened soft cloth. 5. Rinse the transducer thoroughly with water. Do not allow water to access the cable-housing junction.
- Page 15 Cleaning and Disinfection Products LIST OF COMPATIBLE PRODUCTS The table below lists indicates the product compatibility ("YES") with the Aixplorer® probes. Only use compatible products with Aixplorer® probes. Solution/ Manufacturer Cleaner/ Active SL15-4 SE12-3 SEV12-3 SEV12-3 SLV16-5 XC6-1 system Disinfectant ingredient GenII SL18-5...
- Page 16 Solution/ Manufacturer Cleaner/ Active SL15-4 SE12-3 SEV12-3 SEV12-3 SLV16-5 XC6-1 system Disinfectant ingredient GenII SL18-5 XP5-1 SL10-2 SLH20-6 SMC12-3 SC6-1 Hypernova Germitec High-level UV-C Chronos disinfectant KlenZyme Steris Cleaner Proteolytic enzymes Linget’Anios Anios Cleaner Ethanol Digluconate de Disinfectant chlorhexidine Alkylamino- alkylglycine MetriZyme Metrex...
- Page 17 Solution/ Manufacturer Cleaner/ Active SL15-4 SE12-3 SEV12-3 SEV12-3 SLV16-5 XC6-1 system Disinfectant ingredient GenII SL18-5 XP5-1 SL10-2 SLH20-6 SMC12-3 SC6-1 Steranios Anios Disinfectant Orthophtalaldehyde Super Disinfectant Quat. Ammonia Sani Cloth T-Spray Pharmaceutical Disinfectant Quat. Ammonia Innovations Inc. Transeptic Parker Cleaner Chlorhexidine spray laboratories...
- Page 18 NOTE Some cleaner/disinfectant products may cause coloration or discoloration of the probe housing. This coloration/discoloration does not affect the image quality of the probe. GENERAL RECOMMENDATIONS FOR ALL PROBES The above cleaner and disinfectant products have been tested and found to be compatible with SuperSonic Imagine Aixplorer®...
- Page 19 Soaking Limits If soaking a transducer is required, the SL15-4, SL18-5, SL10-2, SC6-1, SMC12-3 transducers may only be immersed in liquid to a level of 3cm (1.18 in.) above the cable-strain relief junction. The SEV12-3, SLV16-5, XP5-1, XC6-1, SLH20-6 and SE12-3 transducers may be immersed in liquid to a level of 1m (39.37in.) above the cable-strain relief junction.
- Page 21 Additional Information Regarding Cleaning and Disinfection of Ultrasound Transducers Additional information regarding cleaning and disinfection of ultrasound transducers can be found in the following references: Chemical Sterilization and high-level disinfection in health care facilities. ANSI/AAMI ST58:2005 Sterilization and Disinfection of Medical Devices: General Principles.
