- Page 1 SecurView DX Workstation Quality Control Manual MAN-09466 Revision 001...

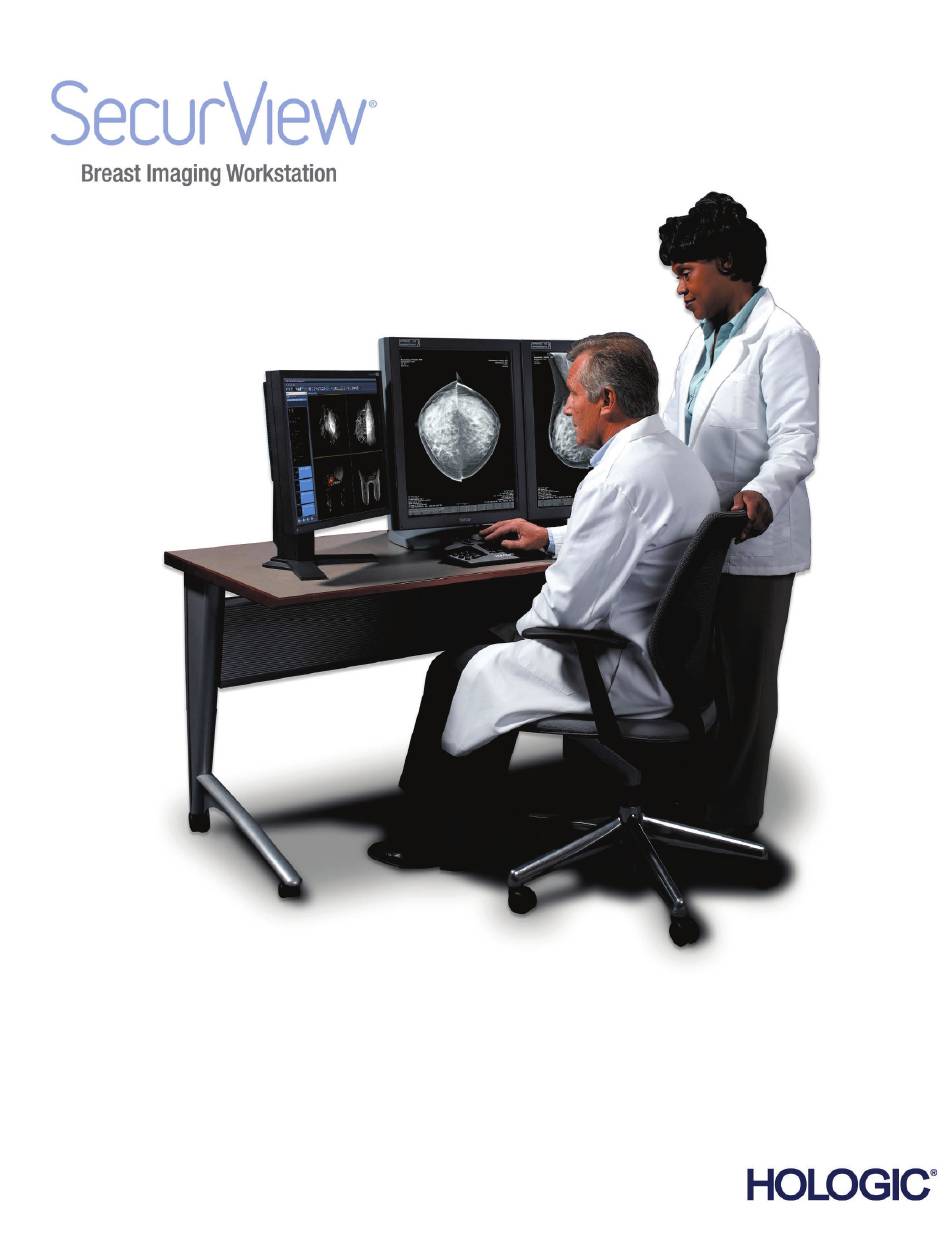

- Page 3 SecurView ® Breast Imaging Workstation Quality Control Manual For Software Version 12.0 Part Number MAN-09466 Revision 001 August 2023...
- Page 4 Enhancement, MultiView, PeerView, Quantra, RightOn, SecurView, Selenia, TechMate, and associated logos are trademarks and/or registered trademarks of Hologic, Inc., and/or its subsidiaries in the United States and/or other countries. All other trademarks, registered trademarks, and product names are the property of their respective owners.
-
Page 5: Table Of Contents
6: Additional MediCal QAWeb Procedures _______________________________________37 Saving the MediCal QAWeb Action History ....................37 Scheduling the Hologic Compliance Test using MediCal QAWeb ............... 39 Appendix A SecurView Annual QC Form for Medical Physicists ____________________41 Appendix B SecurView Weekly QC Form for Radiologic Technologists ______________43... -
Page 7: List Of Figures
Figure 8: Workstation > Status Window ........................20 Figure 9: Hologic Compliance Test Window ....................... 21 Figure 10: Hologic Compliance Test – View Detailed Result Window ..............22 Figure 11: Hologic Compliance Test Window ......................23 Figure 12: Hologic Compliance Test – View Detailed Result Window ..............23 Figure 13: MediCal QAWeb Agent Window ....................... -
Page 9: List Of Tables
SecurView DX Workstation V12.0 Quality Control Manual Table of Contents List of Tables Table 1: Terms and Definitions ............................3 Table 2: Annual QC Form for Medical Physicists ....................... 41 Table 3: Performance Criteria............................41 Table 4: Weekly QC Form for Radiologic Technologists .................... 43... -
Page 11: 1: Introduction
Chapter 1 Introduction This manual provides procedures developed to ensure the consistency of the brightness, contrast, and image presentation of the displays used with Hologic’s SecurView ® diagnostic review workstations. Use the procedures and quality control (QC) forms in this manual to maintain an effective QC program that conforms to the rules of the United States Mammography Quality Standards Act (MQSA) or to become accredited by an accreditation body. -
Page 12: Safety
Note It is recommended that you read through this document fully before starting to work. Note The Service Engineers must complete Hologic training courses before they operate or service a system. Product Complaints Any healthcare professional who has complaints or is dissatisfied with the quality, durability, reliability, safety, effectiveness, and/or performance of this product should notify Hologic. -
Page 13: Terms And Definitions
SecurView DX Workstation V12.0 Quality Control Manual Chapter 1: Introduction Terms and Definitions Table 1: Terms and Definitions Terms Definitions cd/m Candela per square meter (cd/m ), the standard unit of luminance. It represents a luminous intensity of one candela radiating from a surface whose area is one square meter. -
Page 15: 2: Qc Activities For The Medical Physicist
Chapter 2 QC Activities for the Medical Physicist Hologic provides QC software (choice of QAWeb Enterprise or MediCal QAWeb) that is used by Service Engineers and customers to establish and maintain the operating levels of the SecurView displays. The software analyzes the results of display calibration and compliance testing and indicates whether the displays meet the pre-programmed QC limits established by the manufacturer. -
Page 16: Qc Procedures For The Medical Physicist
Review Hologic Compliance Test results. Using the QC software, check the results of the most recent Hologic Compliance Test. If the test has not been run during the last week, then run the test. -
Page 17: Corrective Action
• If any performance criterion is not met, use the Auto-calibration procedure to recalibrate the display. Then rerun the Hologic or Mammography Compliance Test and verify that the display performs within the recommended limits. • A qualified Service Engineer may have to resolve any issues if display operating levels are not within recommended ranges. -
Page 19: 3: Qc Activities For The Radiologic Technologist
Chapter 3 QC Activities for the Radiologic Technologist Hologic provides QC software (QAWeb Enterprise or MediCal QAWeb) that is used by the Radiologic Technologist to maintain the operating levels of the SecurView displays. The software analyzes the results of display calibration and compliance testing and indicates whether the displays meet the pre-programmed QC limits established by the manufacturer. -
Page 20: Qc Procedures For The Radiologic Technologist
Status displayed is “OK.” • For Barco Nio MDNG-6121 and MDNG-5121 displays, MediCal QAWeb prompts you to run the Hologic Compliance Test once per week. Run the test with the photometer and, when done, verify that the Action Result displayed is “OK.” •... -
Page 21: Corrective Action
If any performance criterion is not met, use the Auto-calibration procedure to recalibrate the display. Then rerun the Hologic Compliance Test and verify that the display performs within the recommended limits. A qualified Service Engineer may have to resolve any issues if display operating levels are not within recommended ranges. -
Page 23: 4: Testing The Displays
• External photometer sensor displays - Barco Nio (MDNG-6121 and MDNG-5121): The MediCal QAWeb software automatically alerts you to run the Hologic Compliance Test and calibrate these Barco Nio displays on a scheduled basis. You will use an external photometer to run the QC procedures. QAWeb Enterprise is not supported for these displays. -
Page 24: Testing With Built-In Photometer Sensor Displays
Hologic Compliance Test. Note Hologic recommends for displays older than five years that the Medical Physicist use an external photometer once per year for the luminance check to confirm that the internal photometer is still operating correctly. The luminance measured by the photometer must be within 15% of the calibrated luminance. -
Page 25: Figure 3: Using A Photometer To Calibrate The Display
SecurView DX Workstation V12.0 Quality Control Manual Chapter 4: Testing the Displays When performing test procedures, note the following: • Verify that the Barco USB Photometer is plugged into the same USB port in which it was originally installed. If the sensor was removed for any reason, reconnect it as... -
Page 26: Reconnecting The Photometer Sensor
SecurView DX Workstation V12.0 Quality Control Manual Chapter 4: Testing the Displays 4.3.1 Reconnecting the Photometer Sensor The Barco photometer sensor is USB-port-specific and does not function if inserted into a different USB port than the one originally used when installed. After installation, there should be no need to remove the sensor from the original USB port. -
Page 27: Testing Barco Display Performance Using Qaweb Enterprise
Polices section of QAWeb Enterprise or in the most recent Mammography constancy test results. It is not necessary to log out of the SecurView DX application to check the performance of Barco displays: To access the QC test results in the QAWeb Enterprise software, use an internet browser to log in to https://qaweb.healthcare.barco.com. -
Page 28: Figure 5: Sample Mammography Compliance Report
SecurView DX Workstation V12.0 Quality Control Manual Chapter 4: Testing the Displays Open the Mammography Compliance Report. Figure 5: Sample Mammography Compliance Report Check that the latest Acceptance and Mammography constancy tests have a result of “OK” or a green check mark. Check that details are present for these tests. -
Page 29: Test Barco Display Performance Using Medical Qaweb
You may Print the results or Save as PDF for a local copy. Log out of the QAWeb Enterprise or close the browser tab once finished. Medical Physicist – To view the numerical results of the Hologic Compliance Test: Using an internet browser, log in to https://qaweb.healthcare.barco.com. -
Page 30: Figure 7: Medical Qaweb Agent Window
SecurView DX Workstation V12.0 Quality Control Manual Chapter 4: Testing the Displays The MediCal QAWeb Agent window opens. Select the Status icon. Figure 7: MediCal QAWeb Agent Window The Workstation > Status window opens: Figure 8: Workstation > Status Window... -
Page 31: Figure 9: Hologic Compliance Test Window
By default, the password is advanced (case sensitive). Radiologic Technologist – To complete the tests and view results: Verify that “Status: OK” displays. b. Select Info next to ‘Hologic Compliance Test’. The most recent results for the test display. Verify that “Action Result: OK” displays. -
Page 32: Figure 10: Hologic Compliance Test - View Detailed Result Window
Chapter 4: Testing the Displays d. Select View Detailed Result. A window opens with the detailed results. Figure 10: Hologic Compliance Test – View Detailed Result Window Record the value for Action Result in Appendix B: SecurView Weekly QC Form for Radiologic Technologists on page 43. -
Page 33: Figure 11: Hologic Compliance Test Window
SecurView DX Workstation V12.0 Quality Control Manual Chapter 4: Testing the Displays Medical Physicist – To view the numerical results of the Hologic Compliance Test: On the Workstation > Status window, select Info next to ‘Hologic Compliance Test’. The most recent results for the test display as shown in the following example. -
Page 34: Figure 13: Medical Qaweb Agent Window
SecurView DX Workstation V12.0 Quality Control Manual Chapter 4: Testing the Displays Verify that the results meet the performance criteria. d. Record the results in the Appendix A: SecurView Annual QC Form for Medical Physicists on page 41. Select Close twice to return to the Workstation > Status window. -
Page 35: Figure 14: Workstation > Status Window
When you manually run the Auto-calibration Test, you may be prompted for a password. By default, the password is advanced (case-sensitive). Radiologic Technologist – To run the Hologic Compliance Test and view results: Important When testing the displays, ensure that the room lighting conditions are similar to those used when reading studies. -
Page 36: Figure 15: Hologic Compliance Test Window
SecurView DX Workstation V12.0 Quality Control Manual Chapter 4: Testing the Displays Select Info next to ‘Hologic Compliance Test’. The most recent results for the test display. d. Verify that “Action Result: OK” displays. Figure 15: Hologic Compliance Test Window... -
Page 37: Figure 16: Hologic Compliance Test - View Detailed Result Window
You may Print the results or Save as PDF for a local copy from this window. Select Close once you are finished. g. Select Close to return to the Hologic Compliance Test window. h. Close all open MediCal QAWeb windows. -
Page 38: Figure 17: Hologic Compliance Test Window
SecurView DX Workstation V12.0 Quality Control Manual Chapter 4: Testing the Displays Medical Physicist – To view the numerical results of the Hologic Compliance Test: On the Workstation > Status window, select Info next to ‘Hologic Compliance Test’. The most recent results for the test display as shown in the following example. - Page 39 SecurView DX Workstation V12.0 Quality Control Manual Chapter 4: Testing the Displays Verify that the results meet the performance criteria. d. Record the results in the Appendix A: SecurView Annual QC Form for Medical Physicists on page 41. Select Close twice to return to the Workstation > Status window.
-
Page 41: 5: Manually Calibrating Displays
SecurView DX Workstation V12.0 Quality Control Manual Chapter 5: Manually Calibrating Displays Chapter 5 Manually Calibrating Displays Manually Calibrating Displays using QAWeb Enterprise This section requires a user to access the Windows desktop. This may be accomplished in one of two ways: (1) via the SecurView Application login prompt, or (2) via the Windows login prompt. -
Page 42: Launch The Local Qaweb Application
SecurView DX Workstation V12.0 Quality Control Manual Chapter 5: Manually Calibrating Displays 5.1.3 Launch the Local QAWeb Application From the Windows desktop, double-click the QAWeb icon: The QAWeb Workstation details window opens. Select Tasks on the left side menu. Select the Calibration test, then select the down arrow to view the Calibration details. -
Page 43: Figure 20: Calibration Test Results
SecurView DX Workstation V12.0 Quality Control Manual Chapter 5: Manually Calibrating Displays Select Run task to start the Calibration process. Calibration will display in the upper left-hand side of the window. When the calibration procedure ends, the results display as shown in the following example. -
Page 44: Manually Calibrating Displays Using Medical Qaweb
SecurView DX Workstation V12.0 Quality Control Manual Chapter 5: Manually Calibrating Displays To view the calibration details, select the date and time next to the green check mark to display the calibration report. See the following example. Figure 21: Sample Calibration Report For two-monitor systems, repeat for the second display. -
Page 45: Figure 22: Workstation > Status Window
SecurView DX Workstation V12.0 Quality Control Manual Chapter 5: Manually Calibrating Displays From the MediCal QAWeb Agent window, select the Status icon. The Workstation > Status window opens. Figure 22: Workstation > Status Window MAN-09466 Revision 001 Page 35... -
Page 46: Figure 23: Auto-Calibration Window
It is important to continue monitoring the dates the tests are due for semi-annual documentation. The monitors may require calibration in between the six-month time frames if the Hologic Compliance Test fails. Page 36 MAN-09466 Revision 001... -
Page 47: 6: Additional Medical Qaweb Procedures
Hologic Policy Map. Hologic strongly recommends saving the MediCal QAWeb Action History monthly to prevent data loss in the event of a system failure. Hologic also recommends saving the Action History prior to a SecurView upgrade. Printing the Action History provides a hardcopy record of all of the actions run on the SecurView workstation during a given month. -
Page 48: Figure 24: Action History Window
SecurView DX Workstation V12.0 Quality Control Manual Chapter 6: Additional MediCal QAWeb Procedures Note Use the From and To calendar menu to specify a date range for the Action History results. Figure 24: Action History Window Select View as PDF. -
Page 49: Scheduling The Hologic Compliance Test Using Medical Qaweb
Chapter 6: Additional MediCal QAWeb Procedures Scheduling the MediCal QAWeb Hologic Compliance Test By default, the Hologic Compliance Test automatically runs weekly (except on systems using external photometer sensor displays). Use this procedure to change the time/day of the scheduled Hologic Compliance Test. -
Page 51: Appendix A Securview Annual Qc Form For Medical Physicists
SecurView DX Workstation V12.0 Quality Control Manual Appendix A: SecurView Annual QC Form for Medical Physicists Appendix A SecurView Annual QC Form for Medical Appendix A Physicists Complete this form once per year for each SecurView diagnostic workstation. Table 2: Annual QC Form for Medical Physicists... -
Page 53: Appendix B Securview Weekly Qc Form For Radiologic Technologists
SecurView DX Workstation V12.0 Quality Control Manual Appendix B: SecurView Weekly QC Form for Radiologic Technologists Appendix B SecurView Weekly QC Form for Radiologic Appendix B Technologists Table 4: Weekly QC Form for Radiologic Technologists SecurView SN: SecurView SN: Date... - Page 54 SecurView DX Workstation V12.0 Quality Control Manual Appendix B: SecurView Weekly QC Form for Radiologic Technologists Australia / New Zealand Asia Pacific Refer to the corporate website for more facilities worldwide. www.hologic.com Page 44 MAN-09466 Revision 001...
Need help?
Do you have a question about the SecurView DX and is the answer not in the manual?
Questions and answers
mammography machine test and stereo test for radiographers and physist
For the Hologic SecurView DX system:
Medical Physicist Procedures:
- A qualified in-person Medical Physicist must perform reading room configuration testing when a room is first set up and annually thereafter.
- If equipment is replaced but the room configuration remains unchanged, in-person testing is not required, though oversight by the Medical Physicist is needed.
- The Medical Physicist may adjust the White Level setting based on the Lead Interpreting Physician’s recommendation.
- The physicist uses Appendix A: SecurView Annual QC Form.
Radiologic Technologist Procedures:
- Use MediCal QAWeb or QAWeb Enterprise software to maintain display performance.
- Perform weekly tests and complete Appendix B: SecurView Weekly QC Form.
- During tests:
1. Confirm “Status: OK” on the screen.
2. View recent “Hologic Compliance Test” results.
3. Verify “Action Result: OK”.
4. Record the Action Result.
5. If no test results display, follow the "Corrective Action" steps from the manual.
6. Save or print results as needed.
There is no specific mention of a separate "stereo test" procedure in the provided context.
